Installation Procedure

  1. Slide the mirror on to the mirror support (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screw (3) to the base.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

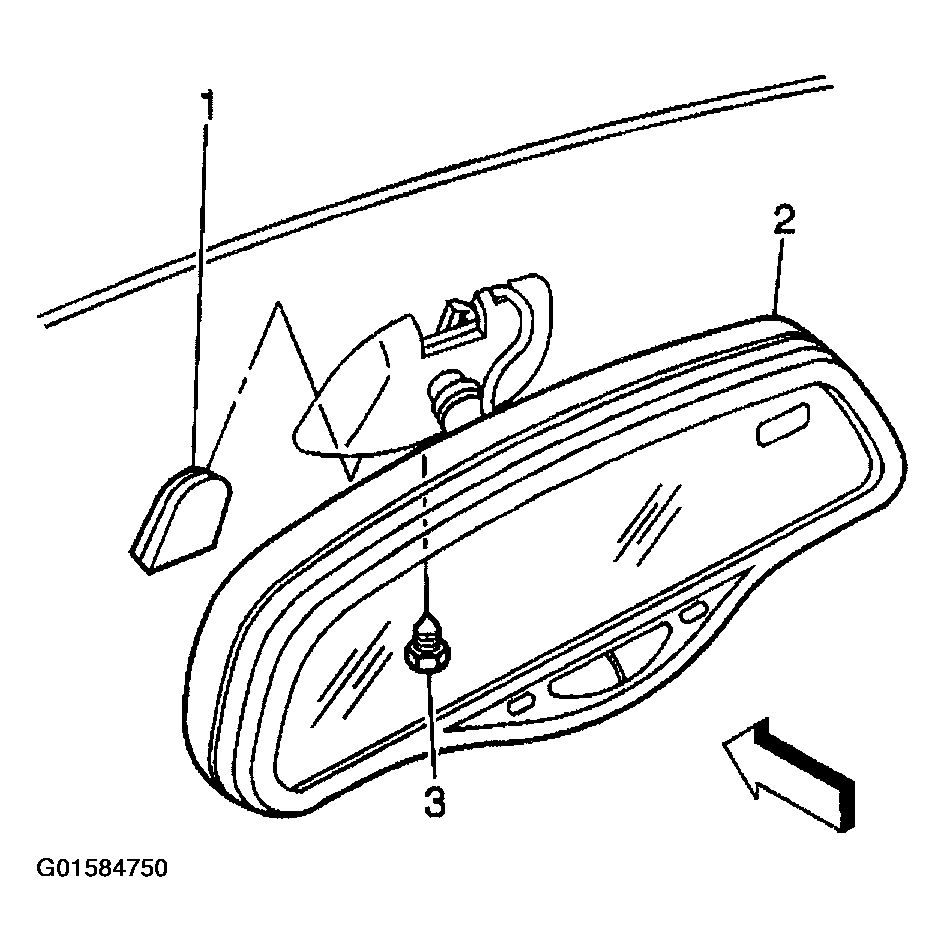

    Fig 1: Sliding Rearview Mirror On To Mirror Support
    G01584750Courtesy of GENERAL MOTORS CORP.
  3. Install the wire cover (3).
  4. Connect the electrical connectors (1).

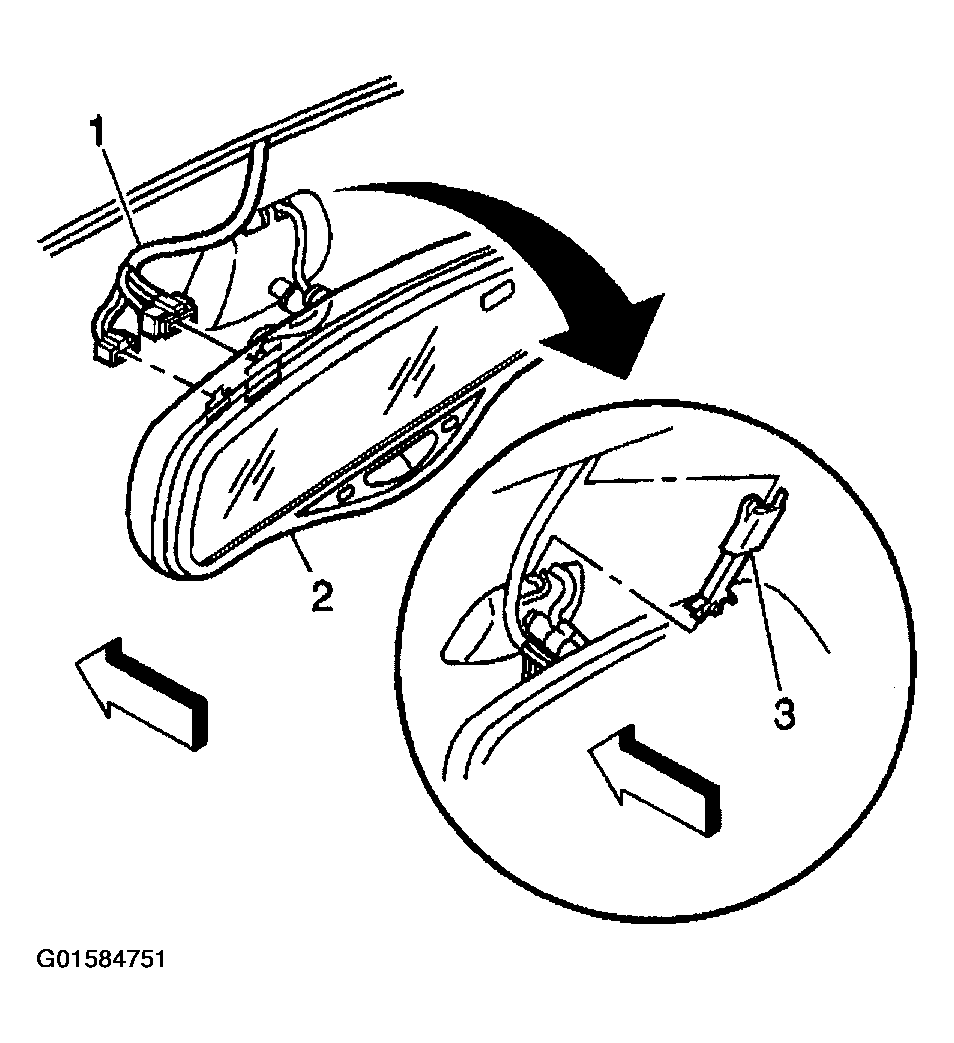

    Fig 2: Electrical Wire Cover
    G01584751Courtesy of GENERAL MOTORS CORP.
