Installation Procedure

  1. Install the front seat riser (2) to the seat adjuster.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nuts to retain the seat riser to the seat adjuster.

    Tighten

    Tighten the nuts to retain the seat riser to the seat adjuster to 45 N.m (33 lb ft).

  3. Install the front assembly to the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Front Bucket (Base)  or Seat Replacement - Split Bench .

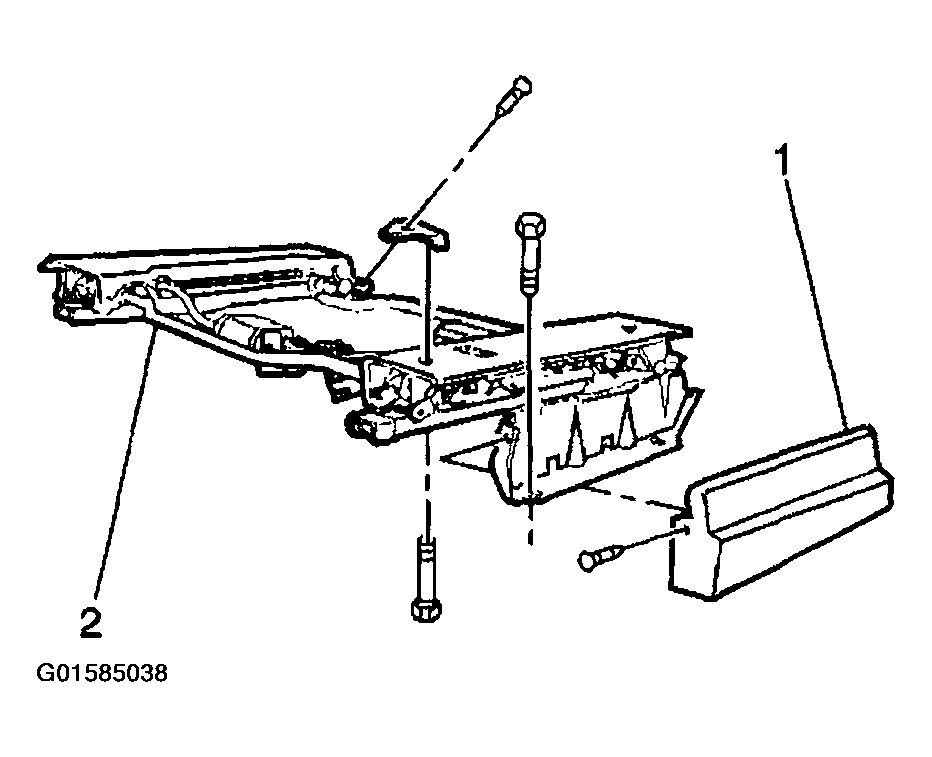

    Fig 1: Seat Riser
    G01585038Courtesy of GENERAL MOTORS CORP.
