Removal Procedure

  1. Remove the seat from the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Split Bench  or Seat Replacement - Front Bucket (Base) .
  2. Pull the switch out from the opening in the side of the seat cushion.
  3. Remove the switch wiring harness in-line connector.
  4. Remove the switch and the wiring harnesses from the side of the seat cushion.

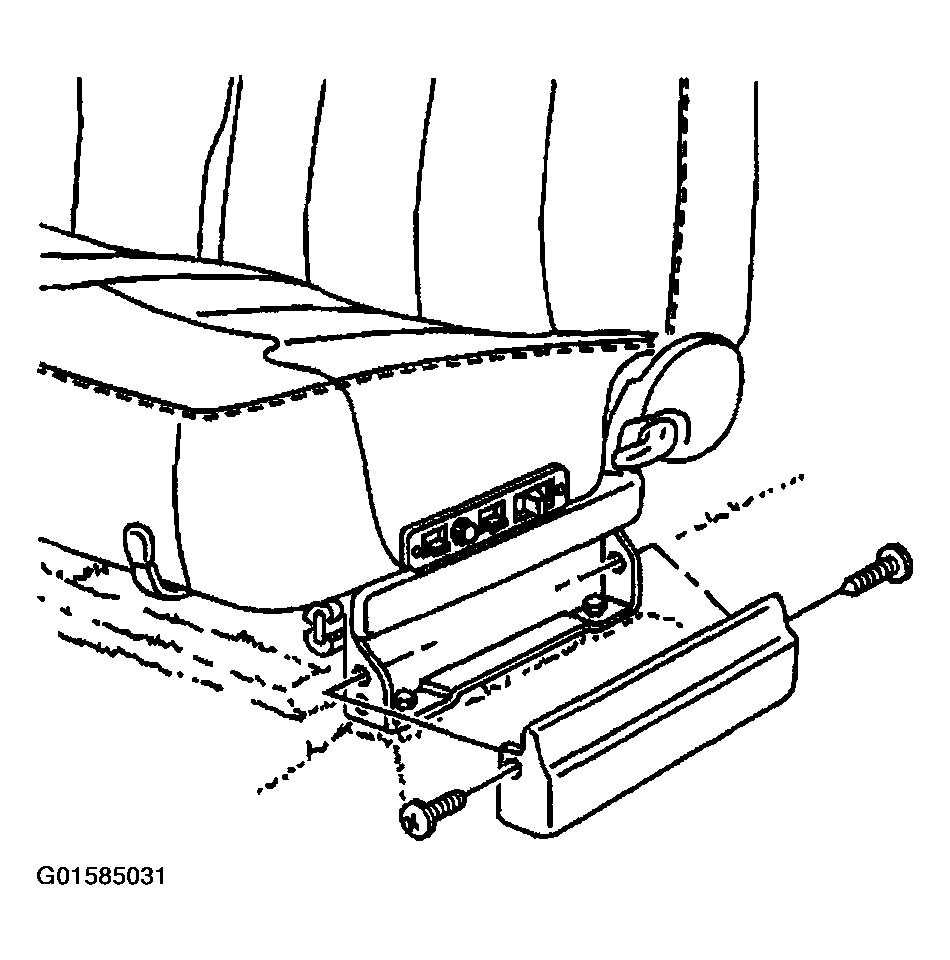

    Fig 1: Seat Switches & Trim Cover
    G01585031Courtesy of GENERAL MOTORS CORP.
