Installation Procedure

  1. Install the pump and the pump cover assembly in the seat and secure with the retaining rings (1).
  2. Install the pump wiring harness in-line connector.
  3. Install the seat assembly in the vehicle. Refer to Seat Replacement - Split Bench  or Seat Replacement - Bench  or Seat Replacement - Front Bucket (Base) .

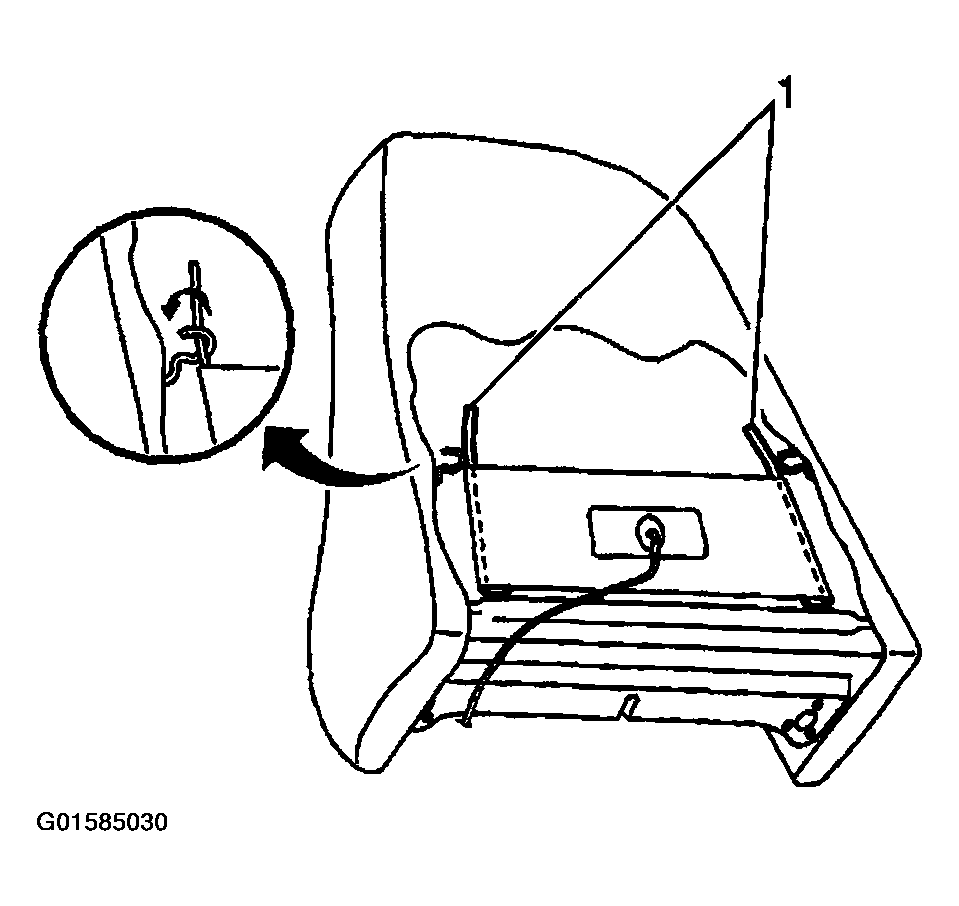

    Fig 1: Retaining Rings
    G01585030Courtesy of GENERAL MOTORS CORP.
