Diagnostic Information and Procedures
>>
Keyless Entry System Inoperative
Keyless Entry System Inoperative

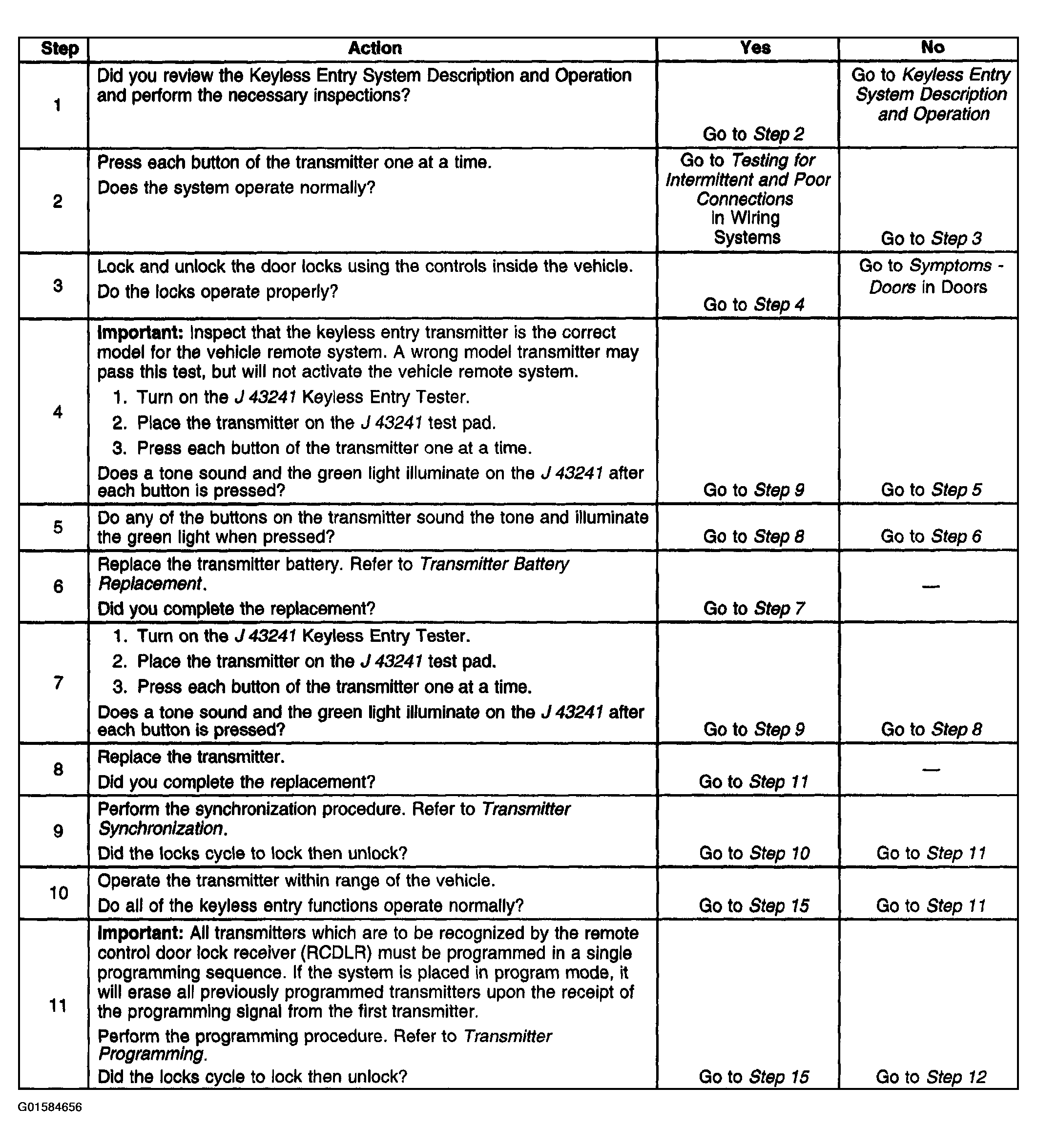

Fig 1: Keyless Entry System Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

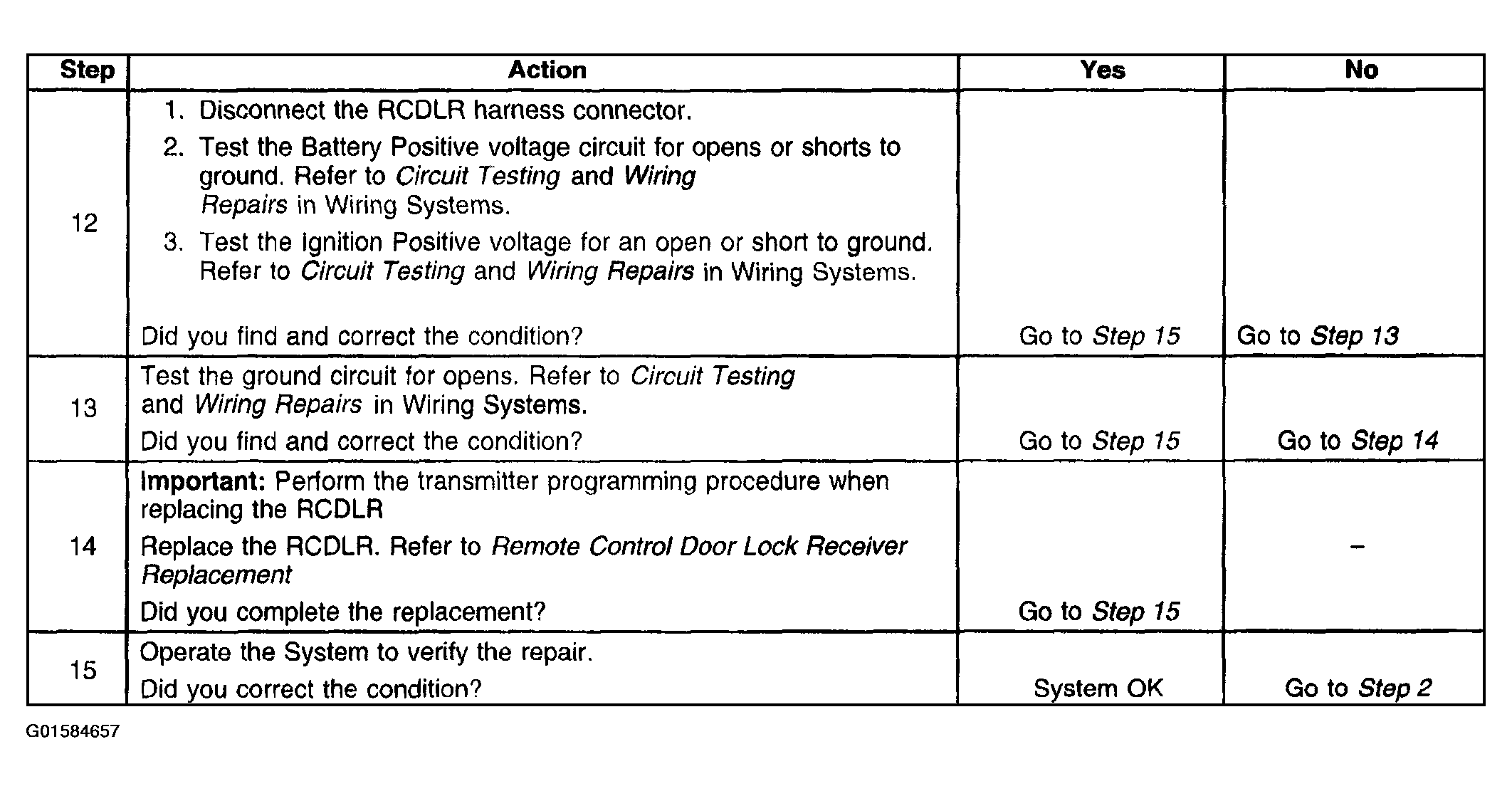

Fig 2: Keyless Entry System Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
