Removal Procedure

  1. Remove the window. Refer to Window Replacement - Front Door .
  2. Remove the window glass weatherstrip. Refer to Weatherstrip Replacement - Front Door Window .
  3. Remove the top bolt from the front window run channel.
  4. Remove the front window run channel from the door.

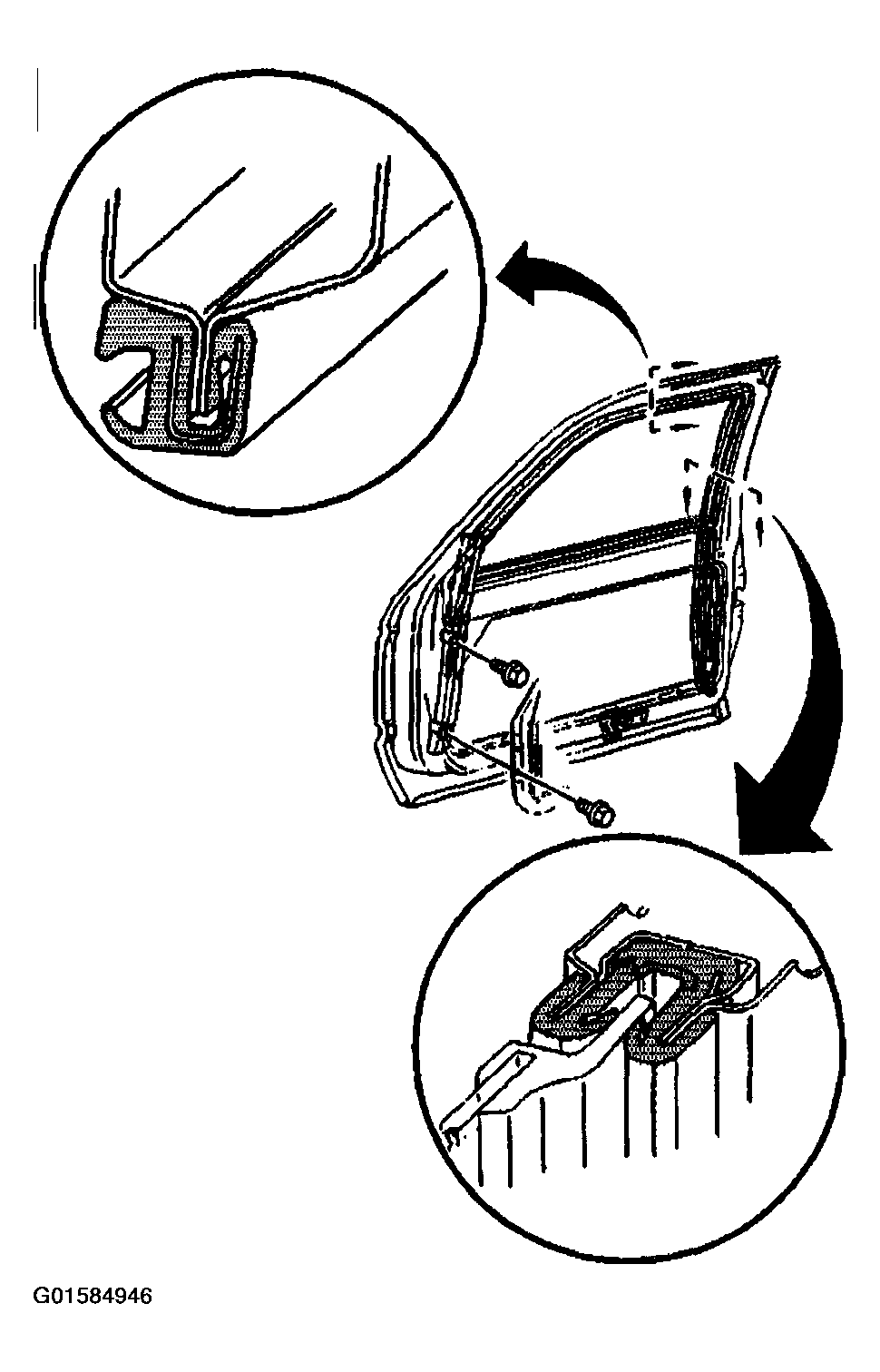

    Fig 1: Front Window Run Channel & Bolt
    G01584946Courtesy of GENERAL MOTORS CORP.
