Entertainment Component Views

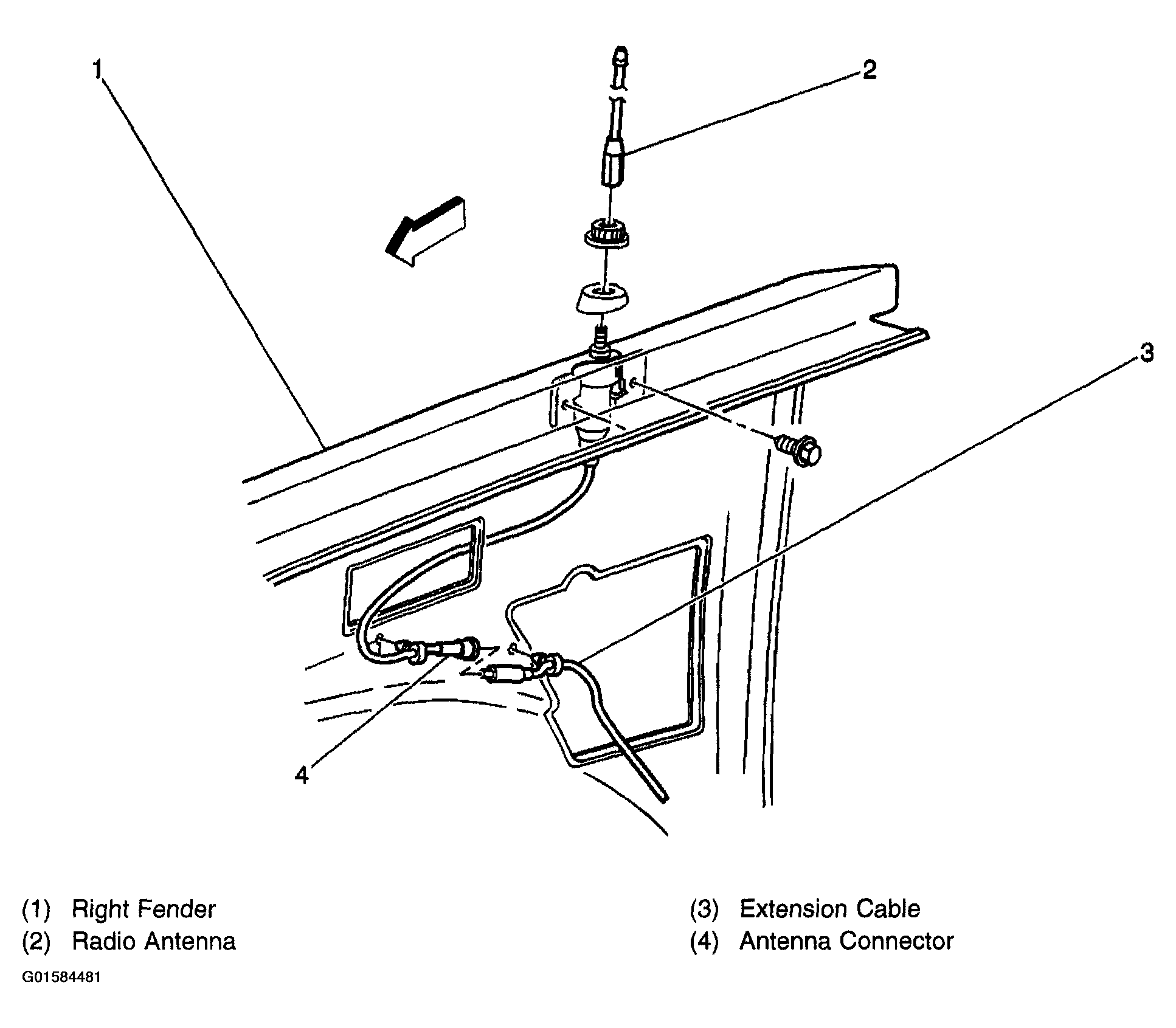

Fig 1: Radio Antenna

Courtesy of GENERAL MOTORS CORP.

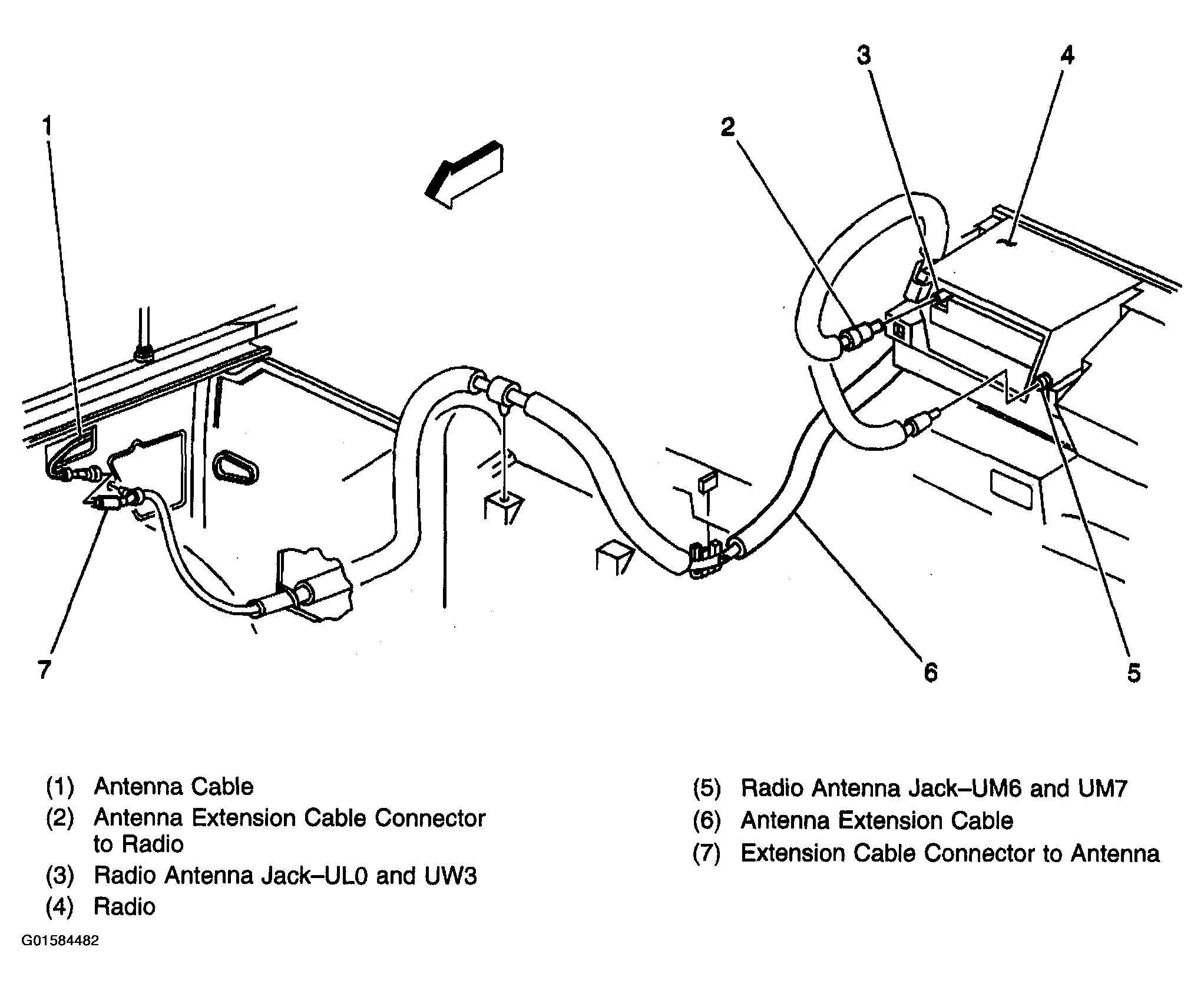

Fig 2: Radio Antenna Extension Cable Routing

Courtesy of GENERAL MOTORS CORP.

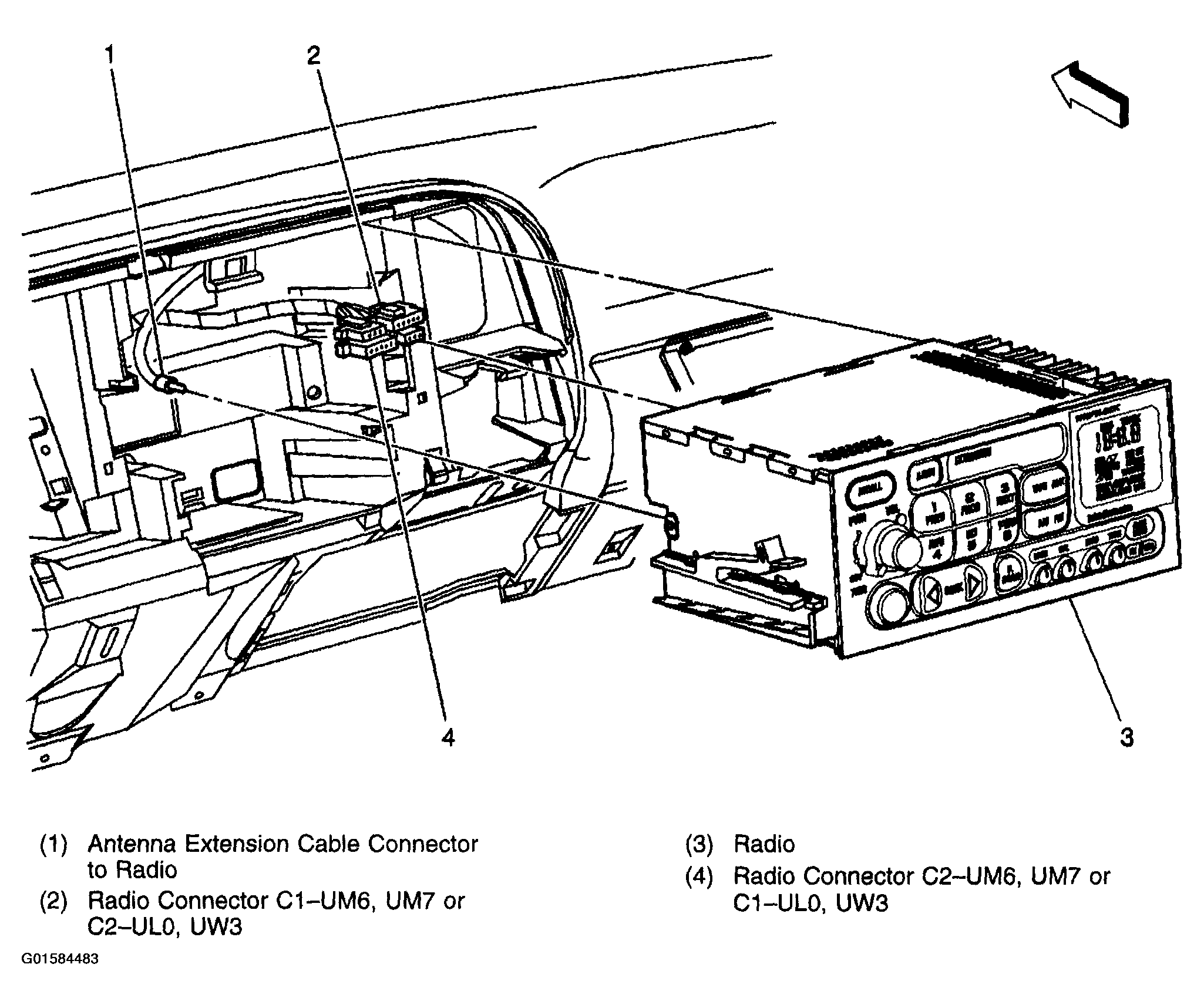

Fig 3: Radio Installation

Courtesy of GENERAL MOTORS CORP.

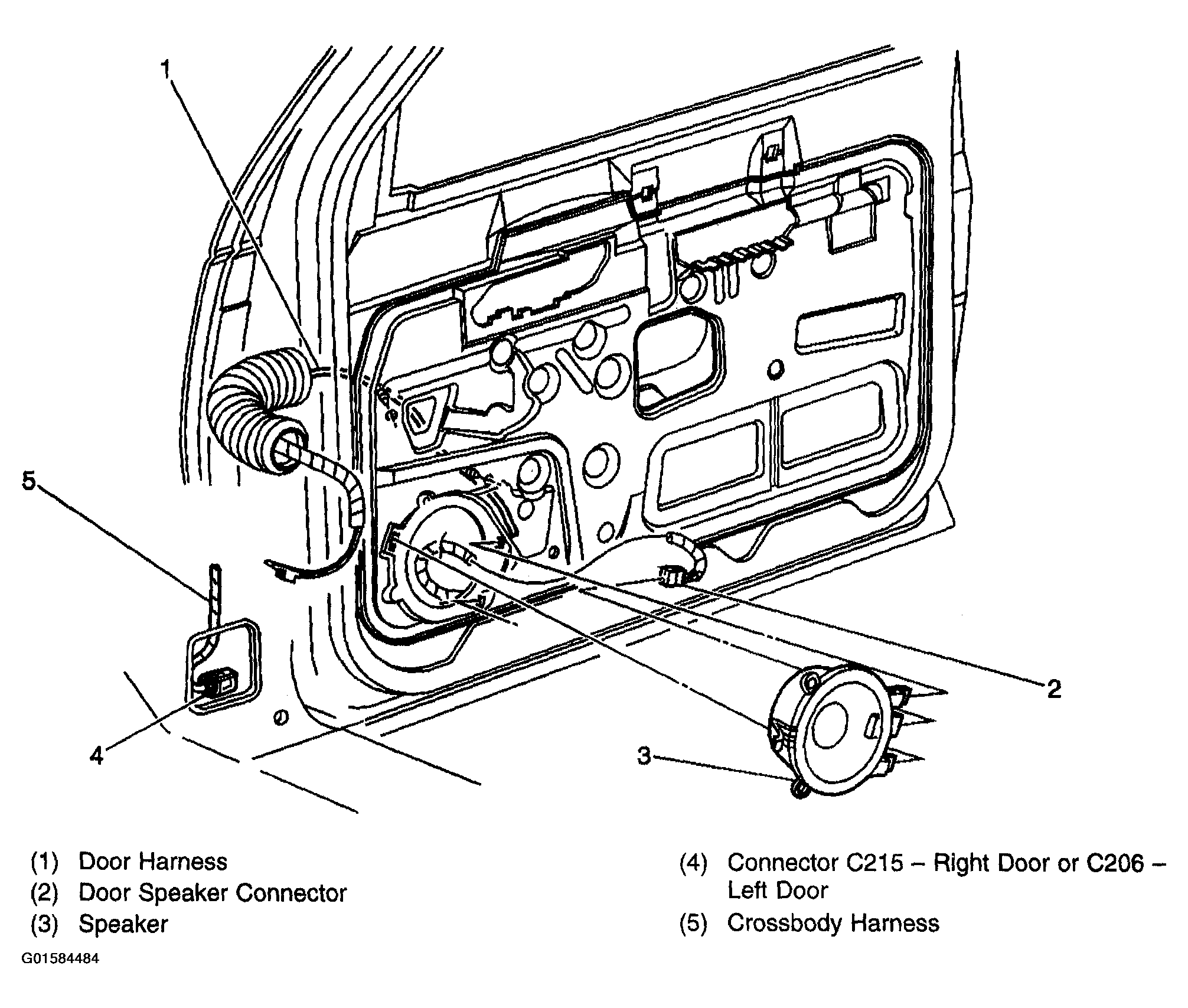

Fig 4: Door Speaker - Right Door Shown, Left Similar

Courtesy of GENERAL MOTORS CORP.

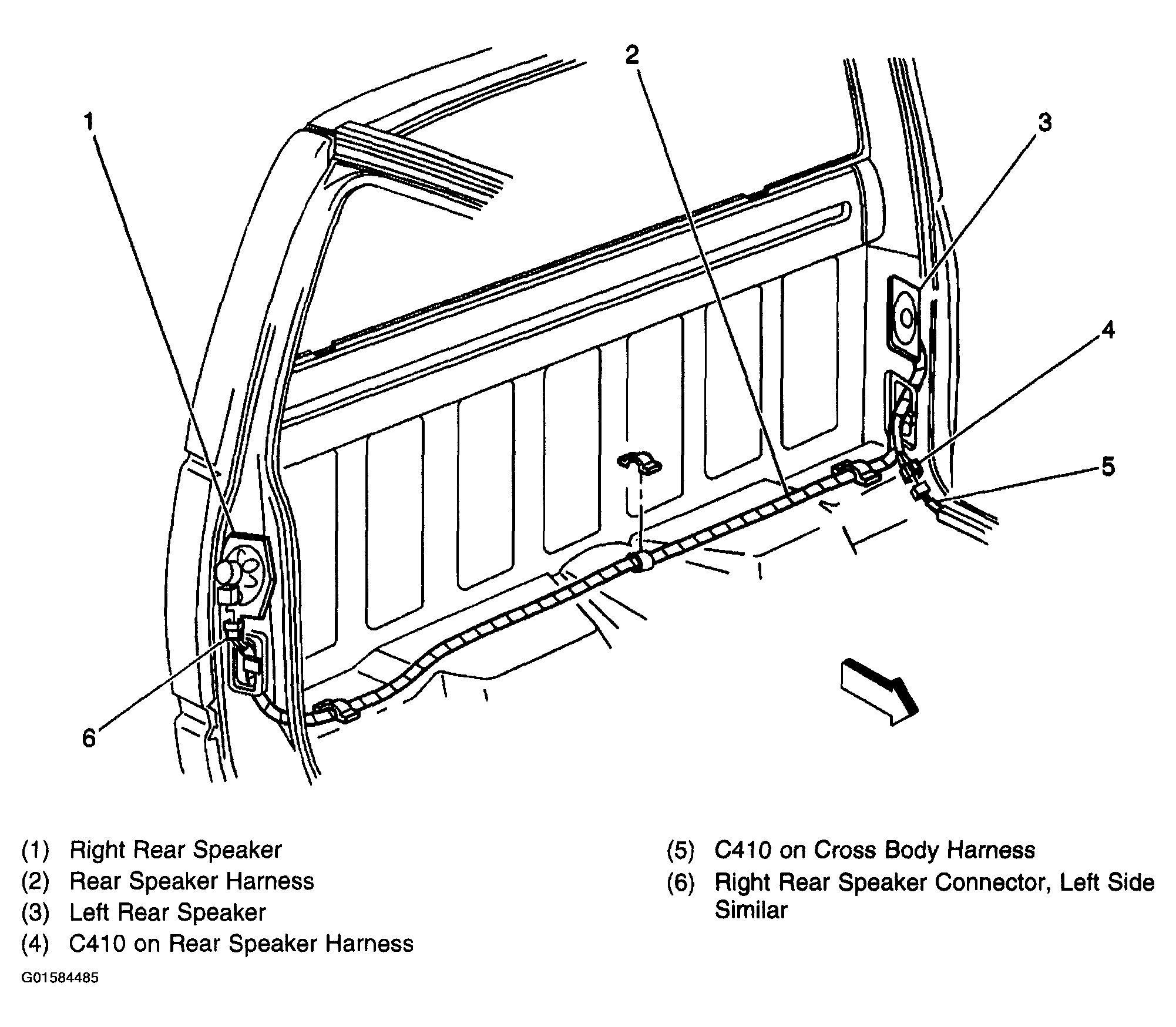

Fig 5: Rear Speaker Wiring

Courtesy of GENERAL MOTORS CORP.
