Secondary Air Injection (AIR) Pump Relay
Secondary Air Injection (AIR) Pump Relay
|
|

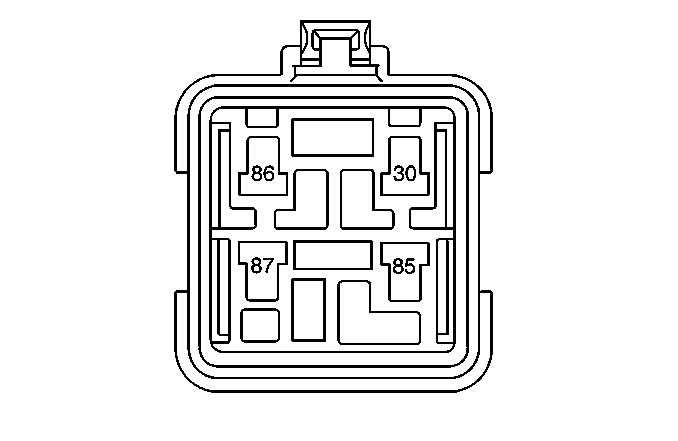

| Connector Part Information |
- 12129716
- 4 Way F Metri-Pack 280 Series (MD GRY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 30 |
RED |
642 |
Battery Positive Voltage |
| 85 |
PNK |
639 |
Ignition 1 Voltage |
| 86 |
BRN |
436 |
AIR Pump Relay Control |
| 87 |
RED |
78 |
AIR Pump Supply Voltage |
