Removal Procedure

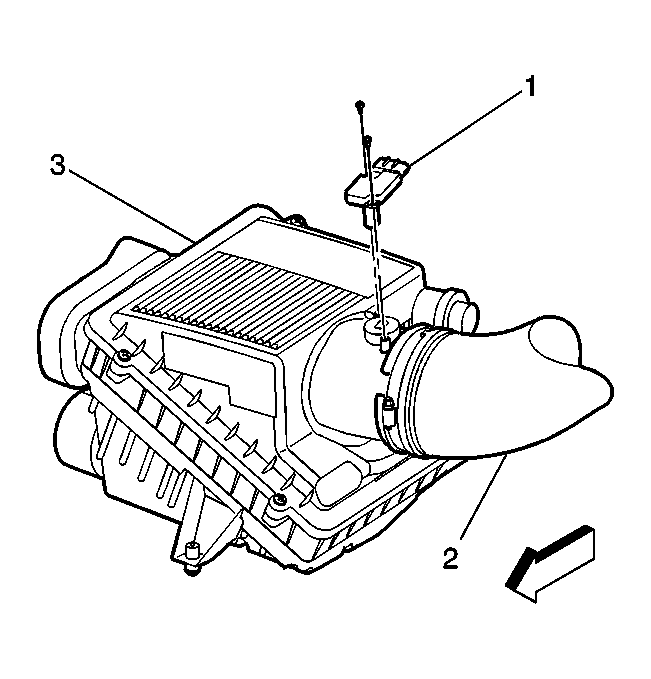

    Fig 1: MAF/IAT Sensor
    GM729658Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the electrical connector of the mass air flow/intake air temperature (MAF/IAT) sensor (1).
  2. Remove the mounting bolts of the MAF/IAT sensor (1) from the upper housing of the air cleaner assembly (3).
  3. Remove the MAF/IAT sensor.
