Installation Procedure

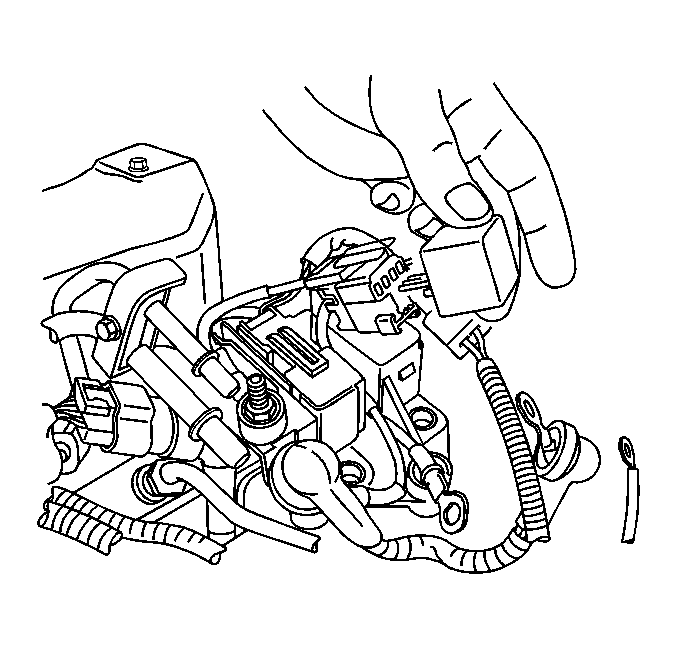

    Fig 1: Glow Plug Relay
    GM1177272Courtesy of GENERAL MOTORS COMPANY
  1. Install the glow plug relay.

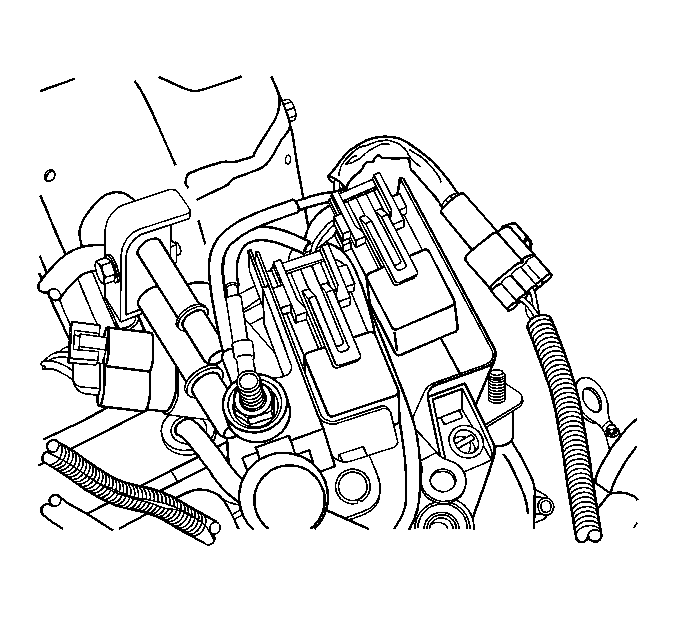

    2. Fig 2: Glow Plug Relay & Glow Plug Controller
    GM1177270Courtesy of GENERAL MOTORS COMPANY
  2. Slide the glow plug relay inward to engage it to the glow plug controller housing.

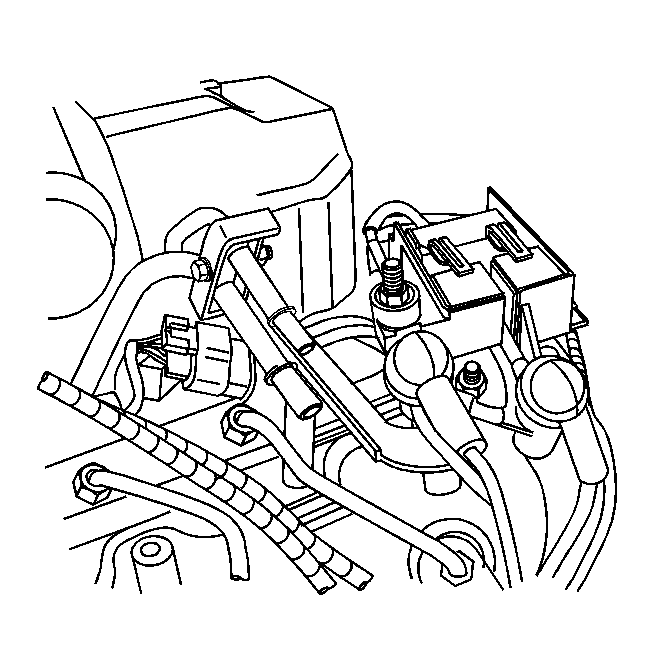

    3. Fig 3: Glow Plug Controller & Studs
    GM1177266Courtesy of GENERAL MOTORS COMPANY
  3. Set the glow plug controller onto the studs.

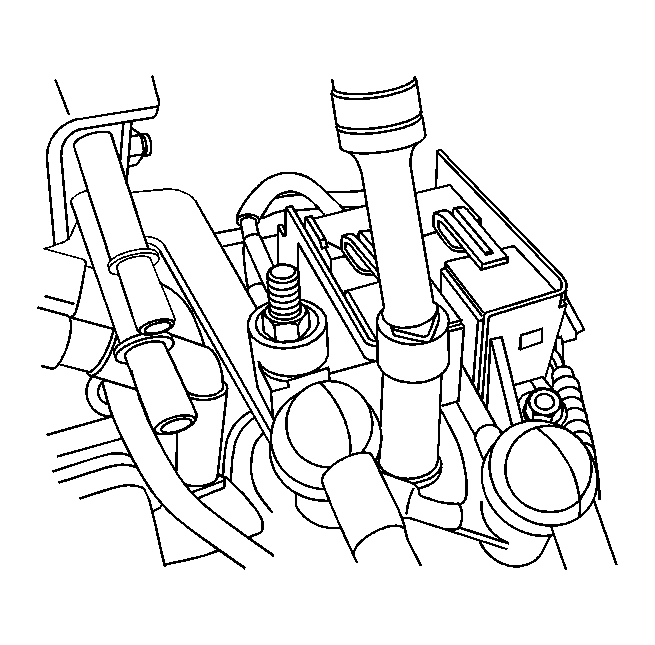

    4. Fig 4: Glow Plug Controller Nuts
    GM1177264Courtesy of GENERAL MOTORS COMPANY
  4. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the glow plug controller nuts.

    Tighten

    Tighten the nuts to 42 N.m (31 lb ft).

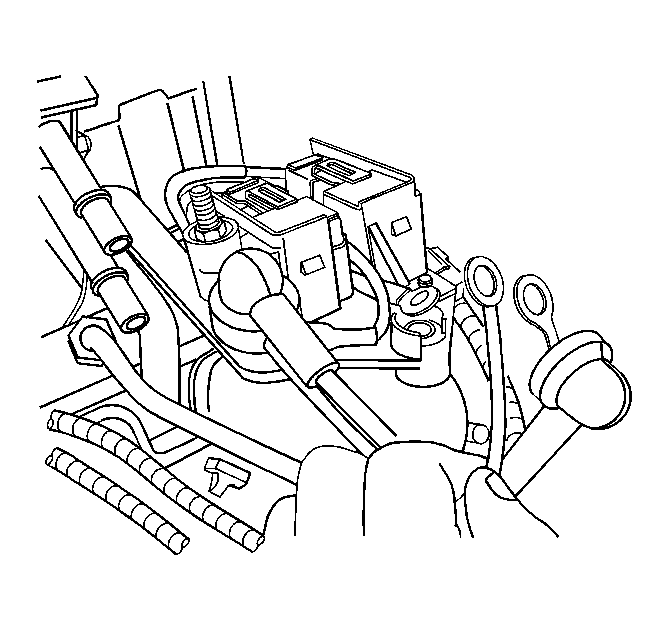

    5. Fig 5: Glow Plug Relay Terminal Nuts And Wires
    GM1177268Courtesy of GENERAL MOTORS COMPANY
  5. Install the glow plug relay terminal wires and nuts.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

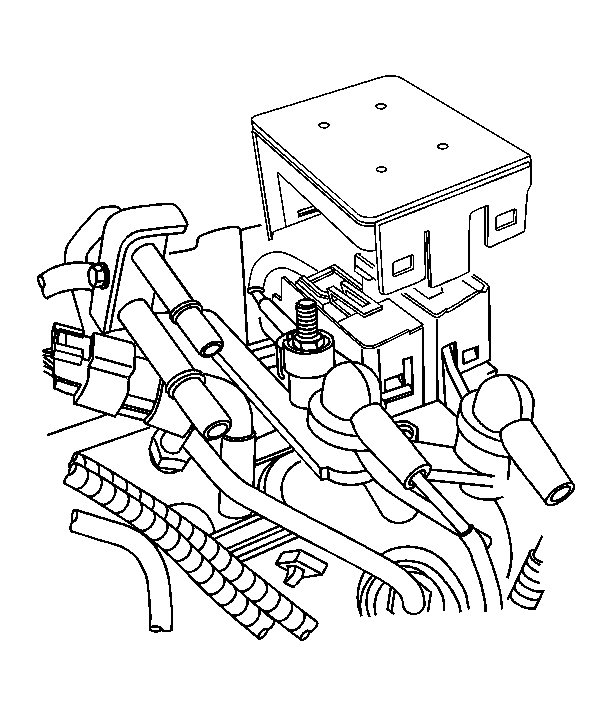

    6. Fig 6: Glow Plug Controller Cover
    GM1177263Courtesy of GENERAL MOTORS COMPANY
  6. Install the glow plug controller cover.
    7. Fig 7: Upper Intake Manifold Sight Shield
    GM658266Courtesy of GENERAL MOTORS COMPANY
  7. Install the upper intake manifold sight shield.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Auxiliary Battery) , Battery Negative Cable Disconnection and Connection (Single Battery) in Engine Electrical.
