Installation Procedure

    Fig 1: Air Filter Assembly, Retaining Pins & Grommets
    GM729652Courtesy of GENERAL MOTORS COMPANY
  1. Line up the retaining pins (2) with the grommets in the mounting bracket (3).
  2. Install the air cleaner assembly until the air cleaner is seated fully on the mounts and is up against the fender apron.

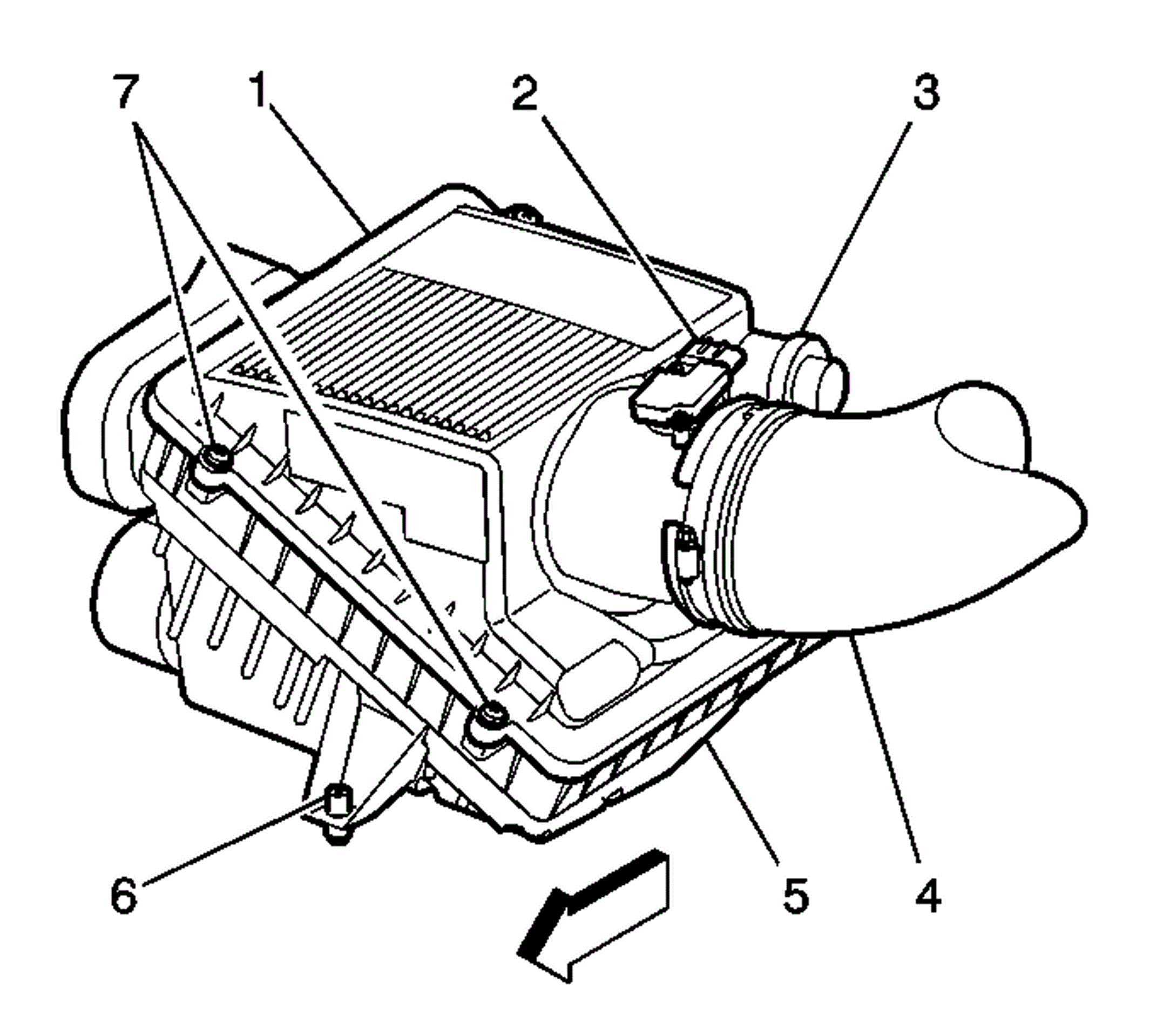

    3. Fig 2: Air Cleaner Housing And Components
    GM729651Courtesy of GENERAL MOTORS COMPANY
  3. Install the air cleaner intake duct.
  4. Connect the MAF/IAT sensor electrical connector (2).
