Removal Procedure

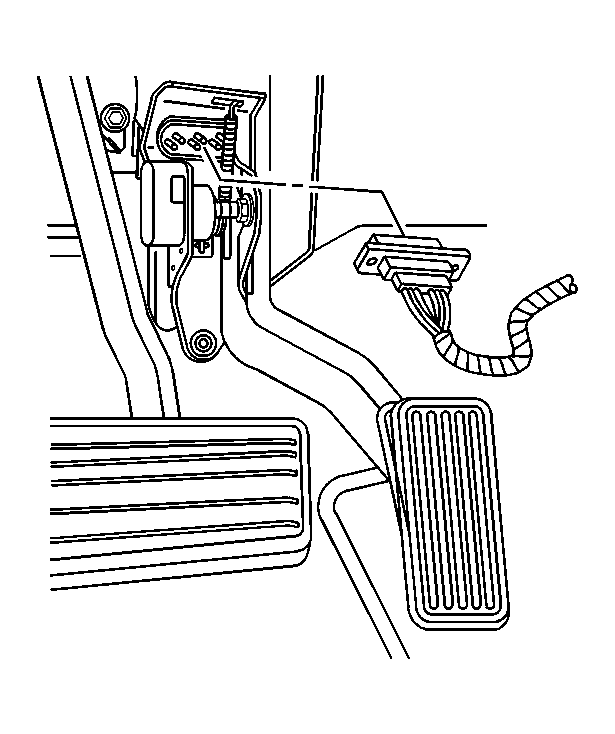

    Fig 1: APP Sensor Harness Connector
    GM740950Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the APP sensor harness connector.

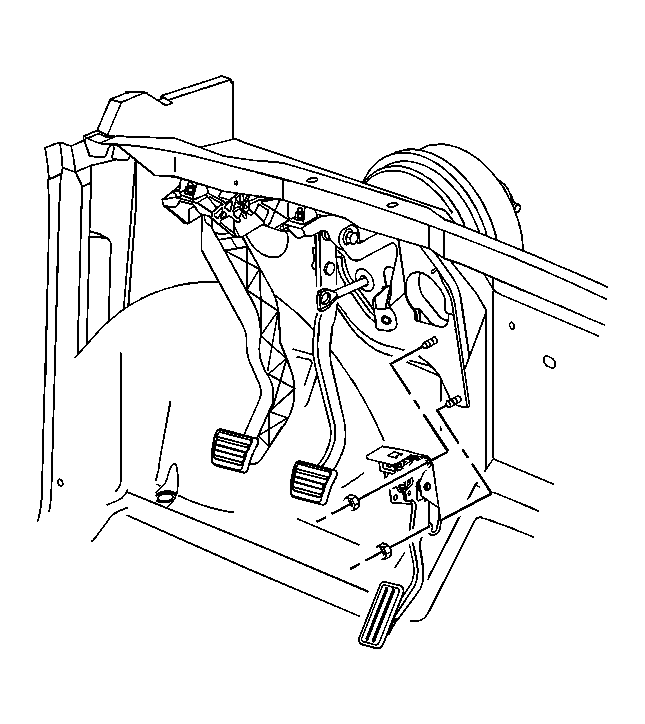

    2. Fig 2: Accelerator Pedal Mounting Nuts
    GM740951Courtesy of GENERAL MOTORS COMPANY
  2. Remove the accelerator pedal mounting nuts.
  3. Remove the APP assembly.
