Automatic Transmission 4L80-E

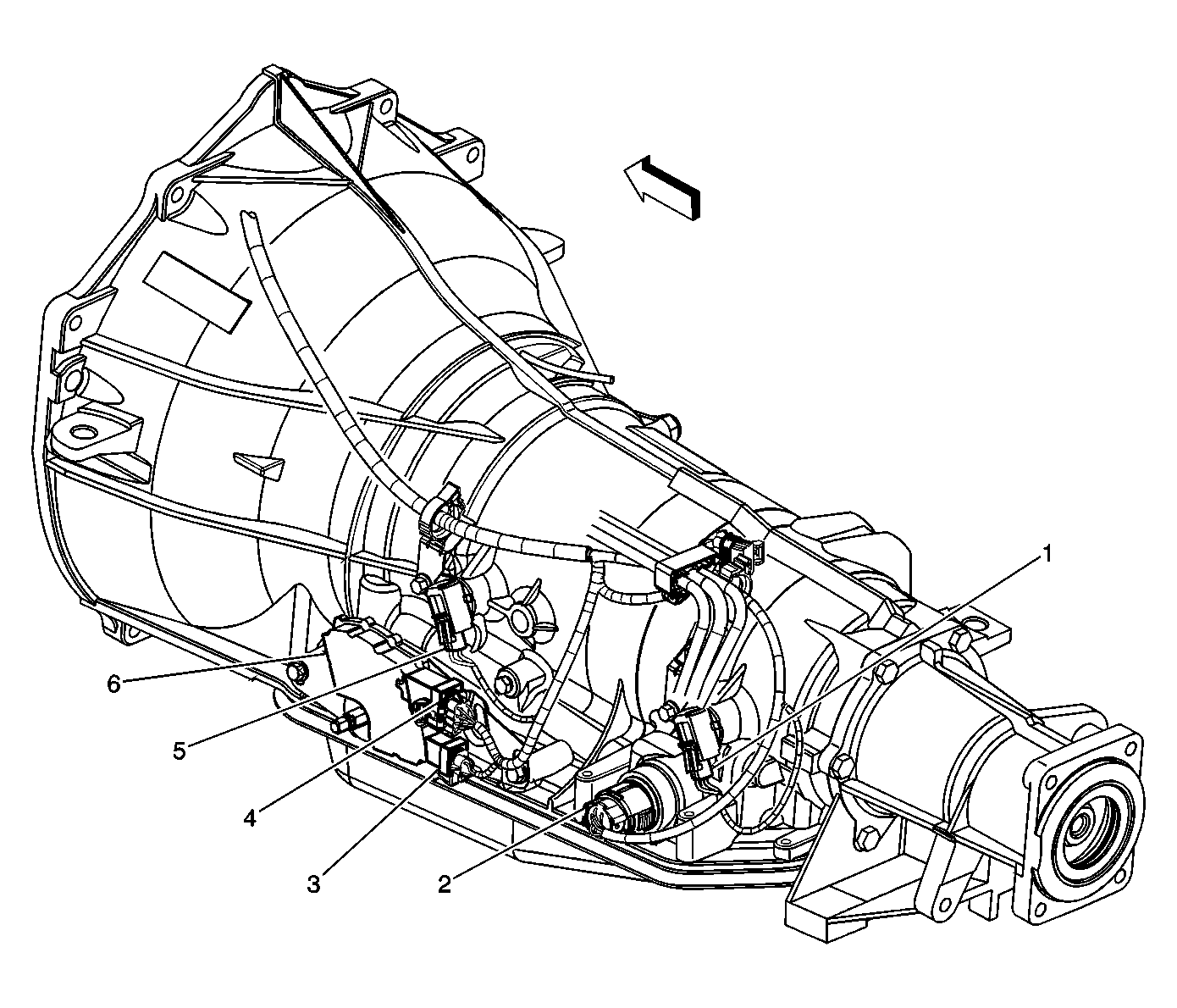

Fig 1: A/T Connector, VSS, PNP Switch And Backup Lamp Switch
GM310233Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Vehicle Speed Sensor
2 A/T Harness Connector
3 Backup Lamp Switch Connector
4 Park/Neutral Position (PNP) Switch Connector
5 Input Shaft Speed Sensor Connector
6 PNP Switch
