Automatic Transmission (4.8L/5.3L/6.0L)

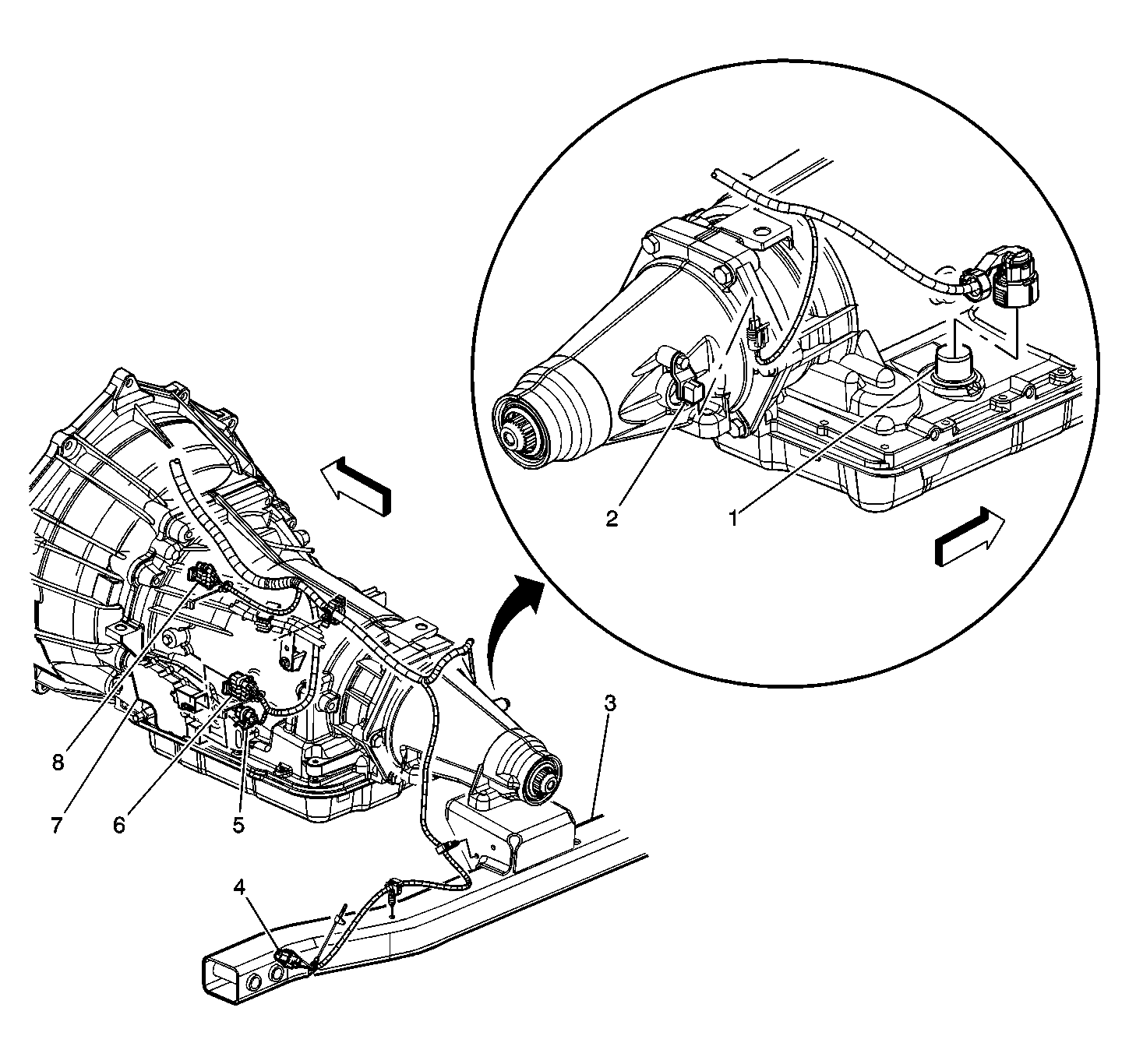

Fig 1: A/T Connector, VSS, Ho2S, PNP Switch And Backup Lamp Switch
GM310227Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transmission Electrical Connector
2 Vehicle Speed Sensor (VSS)
3 Frame Rail Cross Member
4 Heated Oxygen Sensor Bank 1 Sensor 2 Electrical Connector
5 Backup Lamp Switch Connector
6 Park/Neutral Position (PNP) Switch Connector
7 PNP Switch Assembly
8 Heated Oxygen Sensor Bank 1 Sensor 1 Electrical Connector
