Installation Procedure

WARNING: This page is about a different variant/trim than selected.

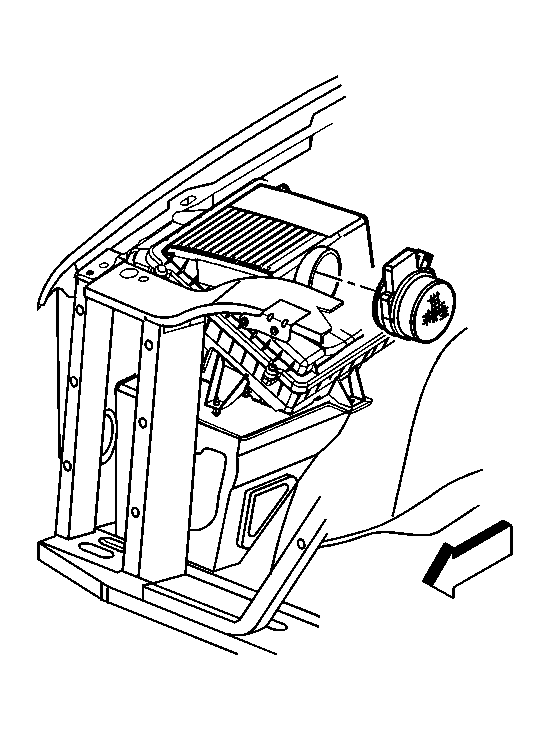

    Fig 1: View Of MAF/IAT Sensor Assembly
    GM365427Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    Ensure to point the flow arrow on the MAF/IAT sensor assembly away from the air cleaner assembly.

  1. Refer to FASTENER NOTICE in Cautions and Notices.

    Connect the MAF/IAT sensor assembly and the air cleaner cover by tightening the hose clamp.

    Tighten

    Tighten the clamp to 4 N.m (35 lb in).

    2. Fig 2: View Of Air Cleaner Outlet Duct Clamp
    GM360851Courtesy of GENERAL MOTORS COMPANY
  2. Connect the MAF/IAT sensor assembly and the air inlet tube by tightening the hose clamp.

    Tighten

    Tighten the clamp to 4 N.m (35 lb in).

    3. Fig 3: View Of MAF/IAT Sensor Assembly Harness Connector (4.3L Engine)
    GM373468Courtesy of GENERAL MOTORS COMPANY
  3. Connect the MAF/IAT sensor harness connector.
