Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Accelerator Cable Tangs, Pedal Lever & Cable Retainer
    GM372959Courtesy of GENERAL MOTORS COMPANY
  1. Install the accelerator cable through the bulkhead. Snap the accelerator cable cover tangs (1) through the dash panel.
  2. Install the accelerator cable through the slot in the accelerator pedal lever.
  3. Seat the retainer (3) in the accelerator pedal lever (2).
  4. Install left instrument panel insulator.
    5. Fig 2: Expanded View Of Accelerator Cable From The Engine Cable Bracket
    GM325557Courtesy of GENERAL MOTORS COMPANY
  5. Install the accelerator cable to the engine cable bracket.
    6. Fig 3: Identifying Accelerator Cable/Throttle Body Lever
    GM325556Courtesy of GENERAL MOTORS COMPANY
  6. Install the accelerator cable to the throttle body lever.

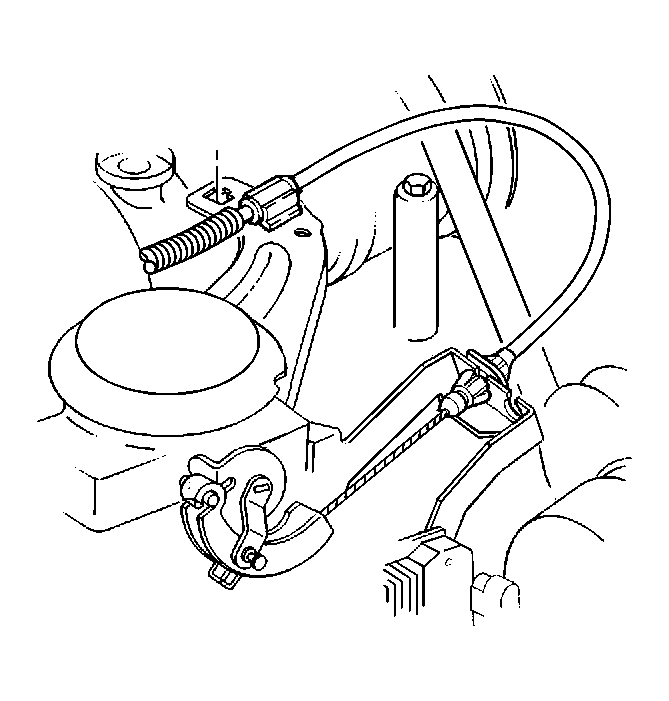

    7. Fig 4: Accelerator Cable Routing Bracket
    GM26764Courtesy of GENERAL MOTORS COMPANY
  7. Install the accelerator cable to the cable routing bracket.
    8. Fig 5: View Of Air Cleaner Outlet Duct
    GM489176Courtesy of GENERAL MOTORS COMPANY
  8. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
