Engine Flywheel Installation

  1. Install the engine flywheel to the crankshaft.
  2. Align the locator hole to the pin.

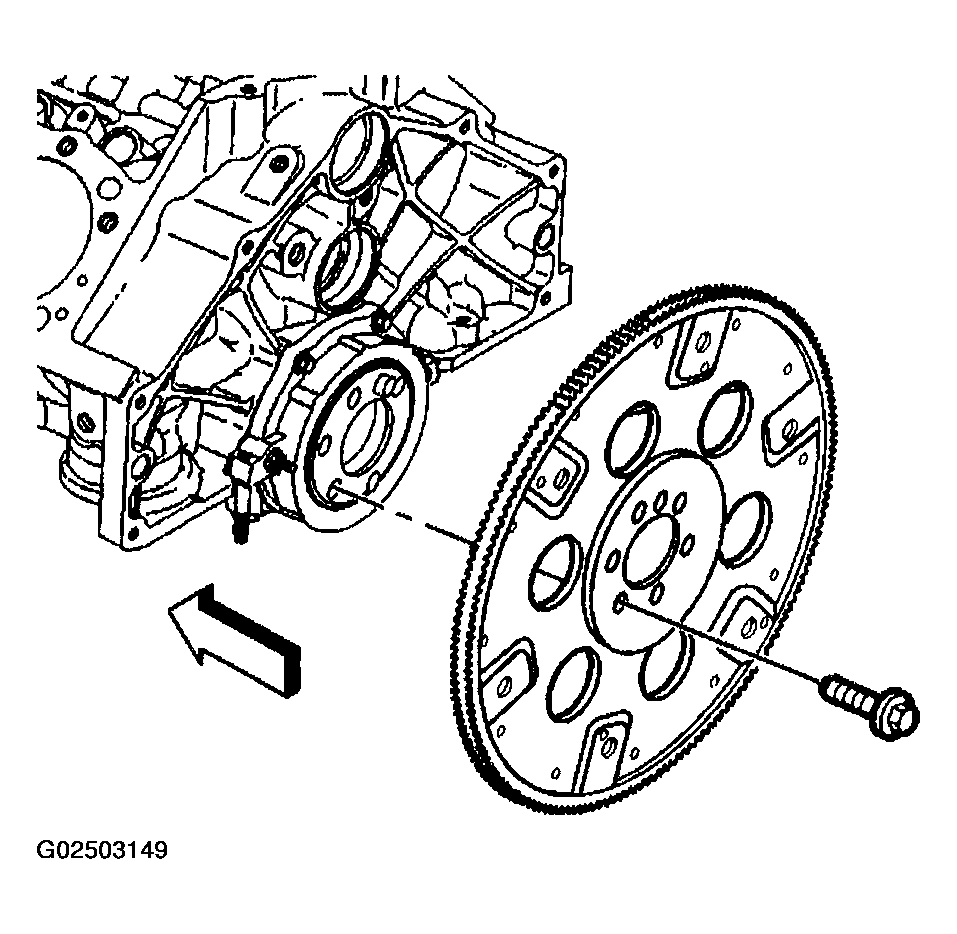

    Fig 1: Engine Flywheel Locator Hole & Pin
    G02503149Courtesy of GENERAL MOTORS CORP.
  3. Install the engine flywheel bolts. Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).
