Installation Procedure

  1. Position the trim panel on the seat.

    Refer to Fastener Notice in Cautions and Notices.

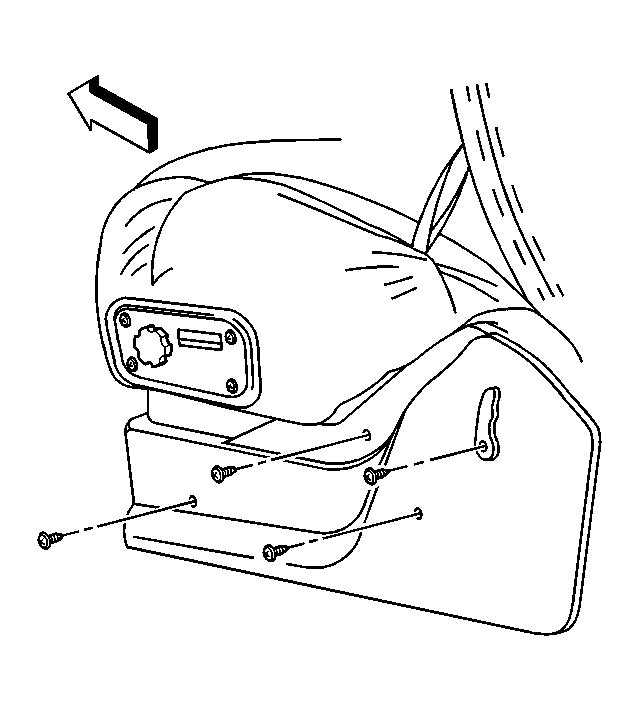

    2. Fig 1: Front Seat Trim Panel
    GM378528Courtesy of GENERAL MOTORS COMPANY
  2. Install the screws retaining the trim panel to the seat.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the remaining screws retaining the seat back release handle and the seat recliner handle to the seat.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).
