Installation Procedure

  1. Install the fan onto the fan clutch.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fan clutch bolts to the rear of the fan blade.

    Tighten

    Tighten the fan clutch bolts to 23 N.m (17 lb ft).

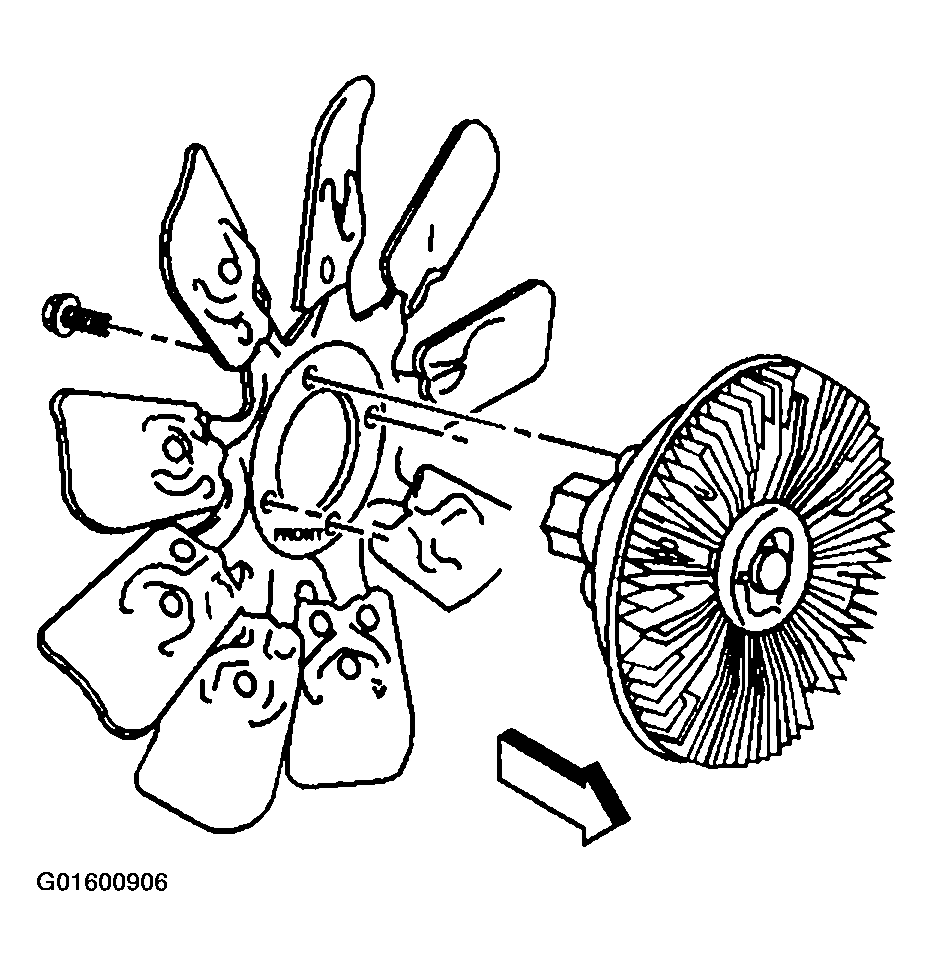

    Fig 1: Installing Fan & Fan Clutch Bolts
    G01600906Courtesy of GENERAL MOTORS CORP.
  3. Install the fan blade and clutch.

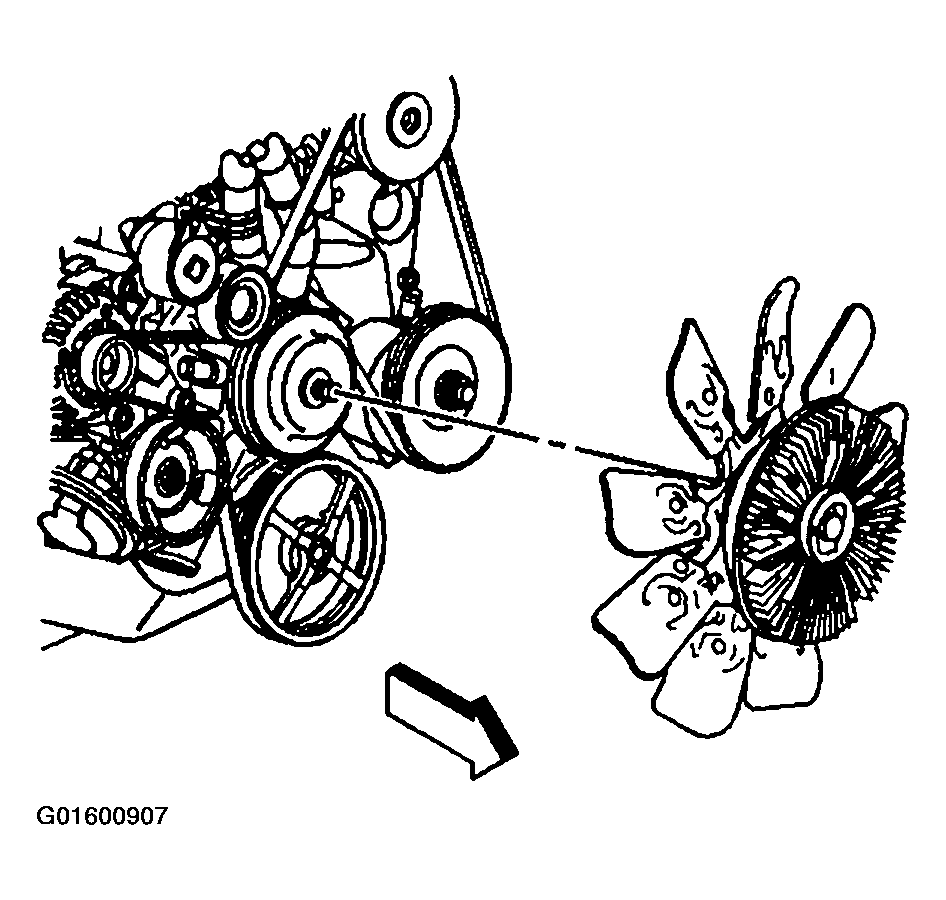

    Fig 2: Installing Fan Blade & Clutch
    G01600907Courtesy of GENERAL MOTORS CORP.
  4. Install the J 41240  and J 41240-5A  .

    Tighten

    Tighten the fan clutch nut to 59 N.m (43 lb ft).

  5. Install the fan shroud. Refer to Fan Shroud Replacement (Upper)  or Fan Shroud Replacement (Lower) .

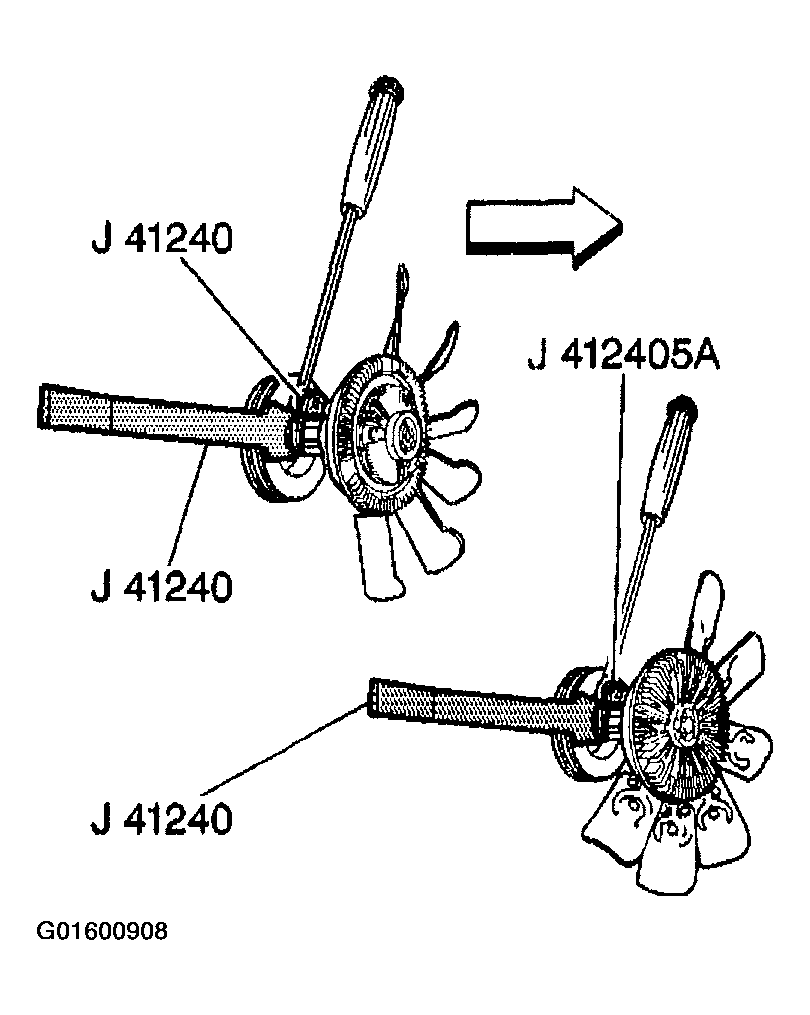

    Fig 3: Installing J 41240 & J 41240-5A
    G01600908Courtesy of GENERAL MOTORS CORP.
