Fuse Block, HVAC Control Module, Rear Window Defogger Grid

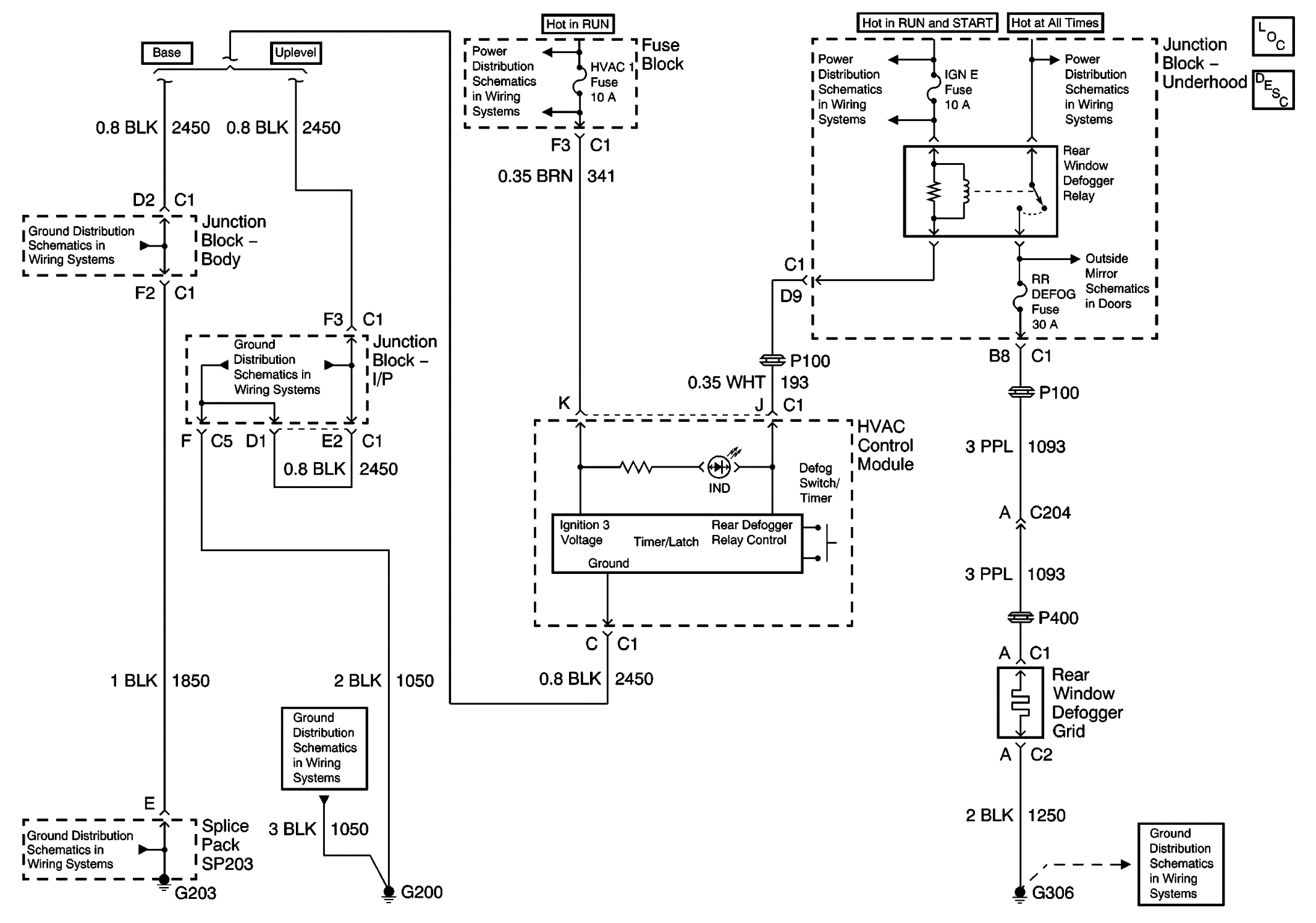

Fig 1: Fuse Block, HVAC Control Module, Rear Window Defogger Grid Wiring Schematic

GM705494

Courtesy of GENERAL MOTORS COMPANY
