A/C High Pressure Switch

WARNING: This page is about a different car, the 2001 GMC Sierra, 2001 GMC Cab & Chassis Sierra, 2001 Chevrolet Silverado, and 2001 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

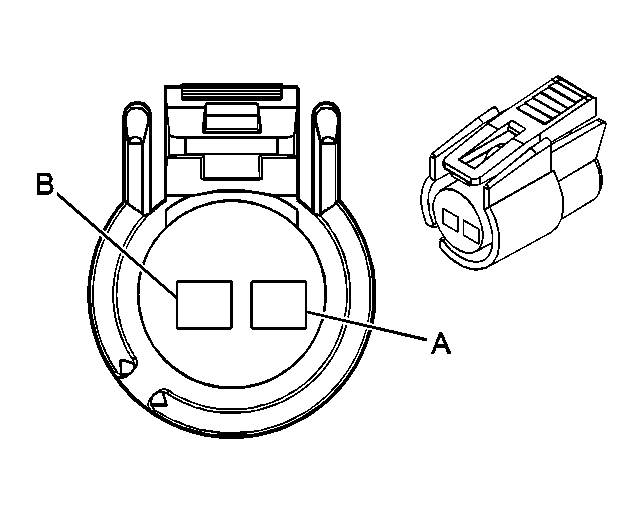

A/C High Pressure Switch

GM684869
Connector Part Information
  • 12186386
  • 2-Way F Metri-Pack 150 P2S (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 203 A/C Request Signal
B DK GRN/WHT 2523 A/C Request Signal
