Lower LF of the Engine Components (6.6L)

WARNING: This page is about a different car, the 2001 GMC Sierra, 2001 GMC Cab & Chassis Sierra, 2001 Chevrolet Silverado, and 2001 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

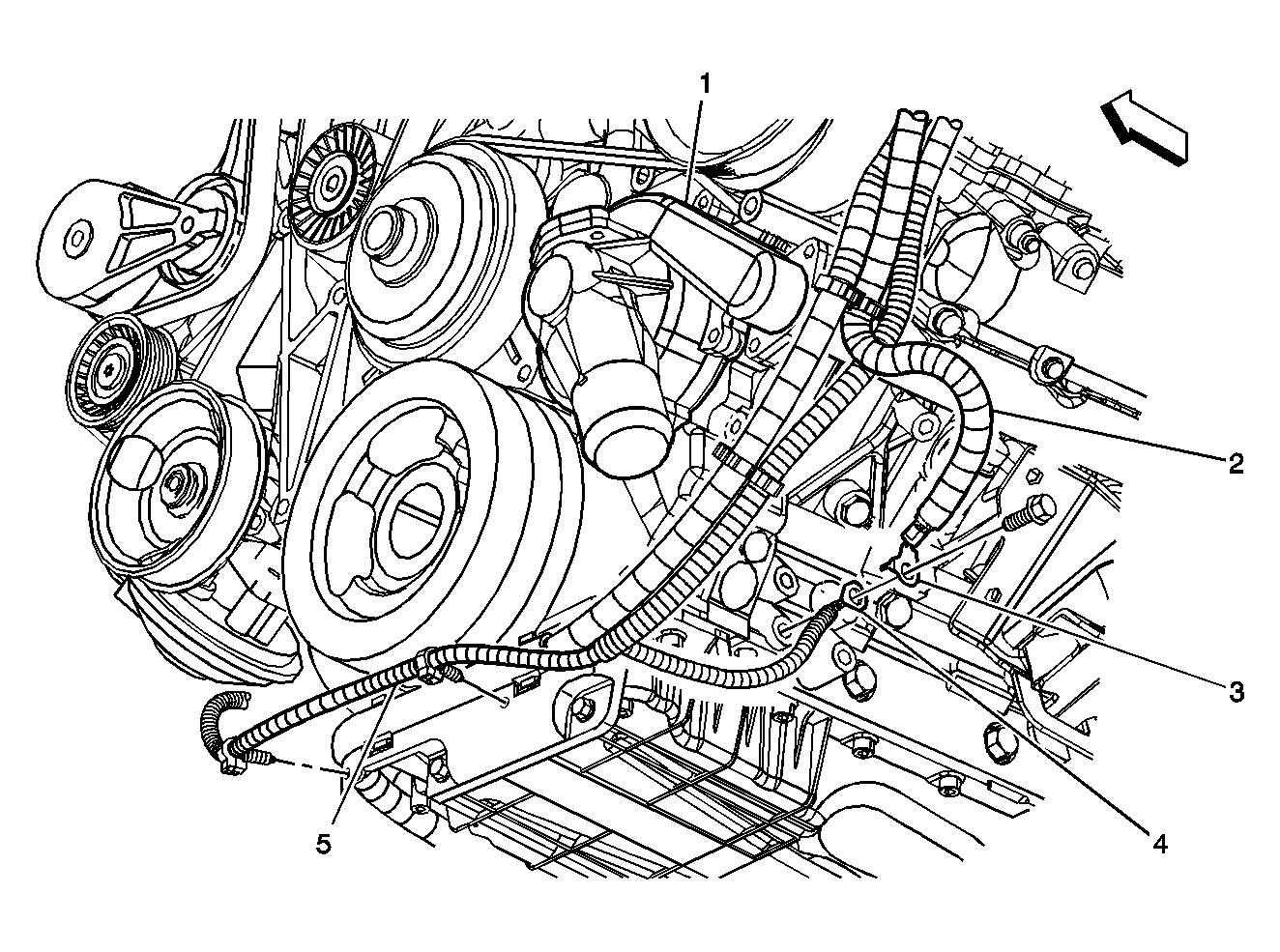

Fig 1: Negative Battery Cable And Grounds
GM768351Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine- 6.6L Diesel
2 Negative Battery Cable
3 Negative Battery Ground
4 G103
5 Engine Harness
