Installation Procedure

  1. Install the surge tank.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the surge tank bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  3. Install the surge tank outlet hose to the surge tank.
  4. Reposition the outlet hose clamp to the surge tank.

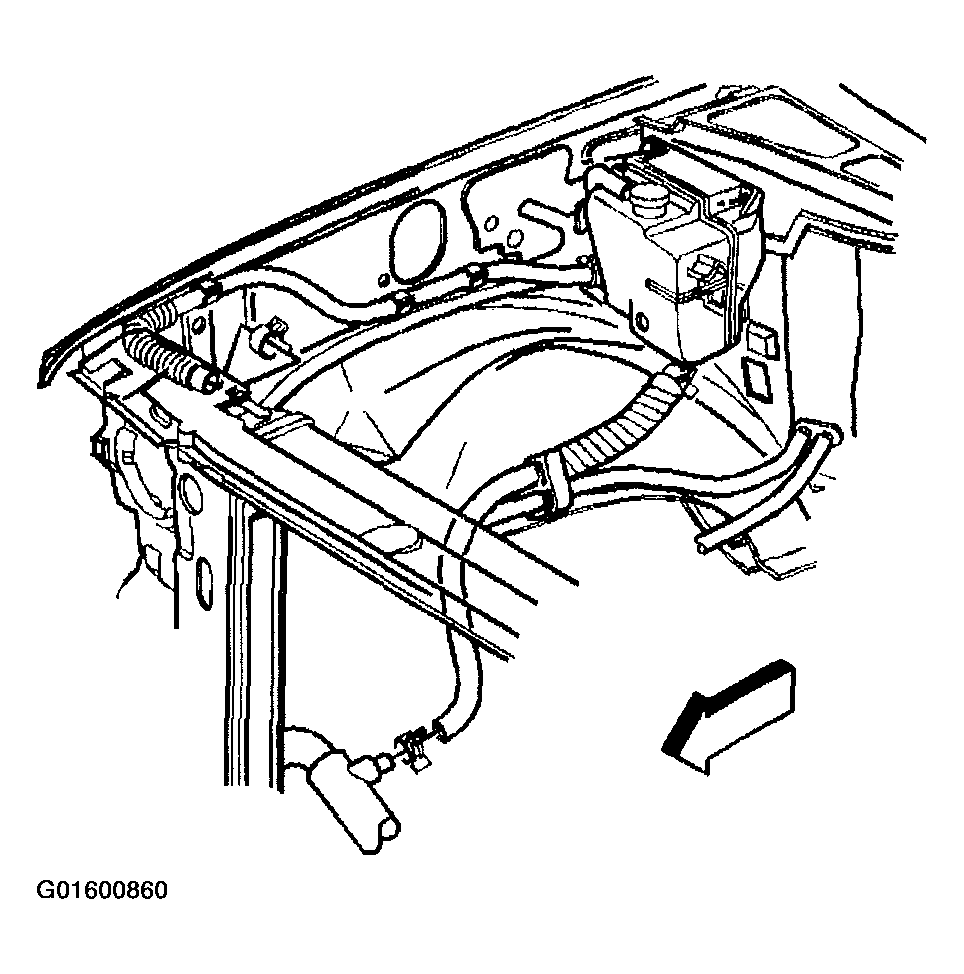

    Fig 1: Surge Tank Bolts & Outlet Hoses
    G01600860Courtesy of GENERAL MOTORS CORP.
  5. Install the inlet hose to the surge tank.
  6. Reposition the inlet hose clamp to the surge tank.

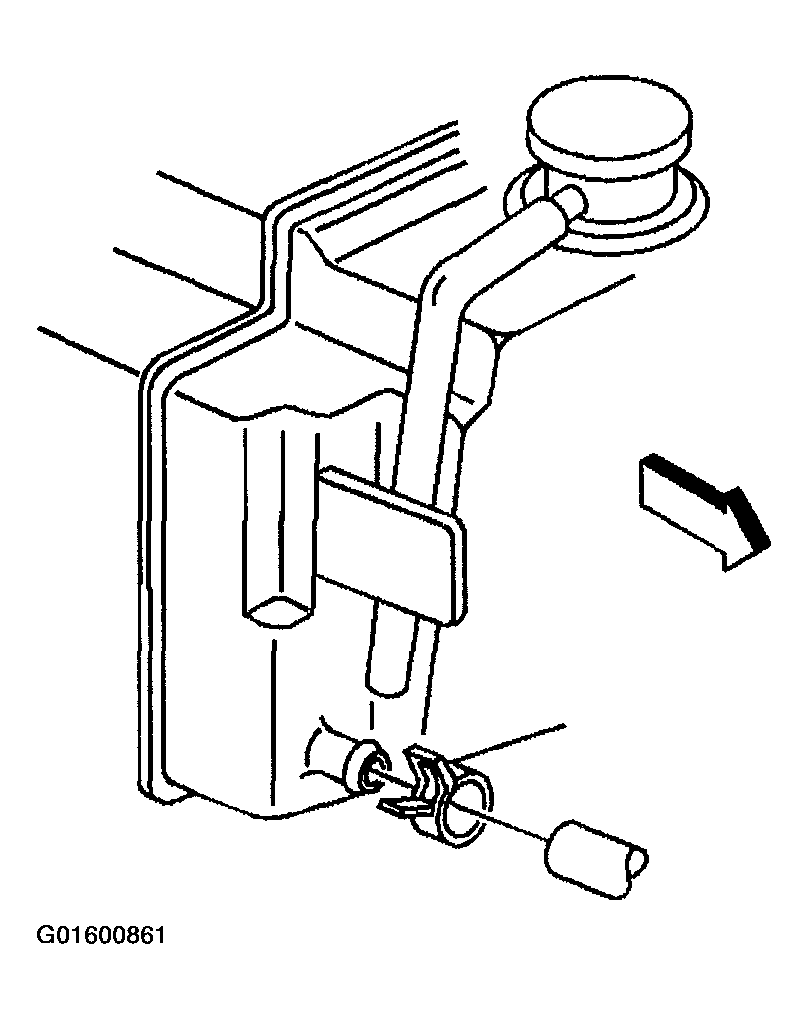

    Fig 2: Inlet Hose Clamp
    G01600861Courtesy of GENERAL MOTORS CORP.
  7. Connect the low coolant probe electrical connector.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

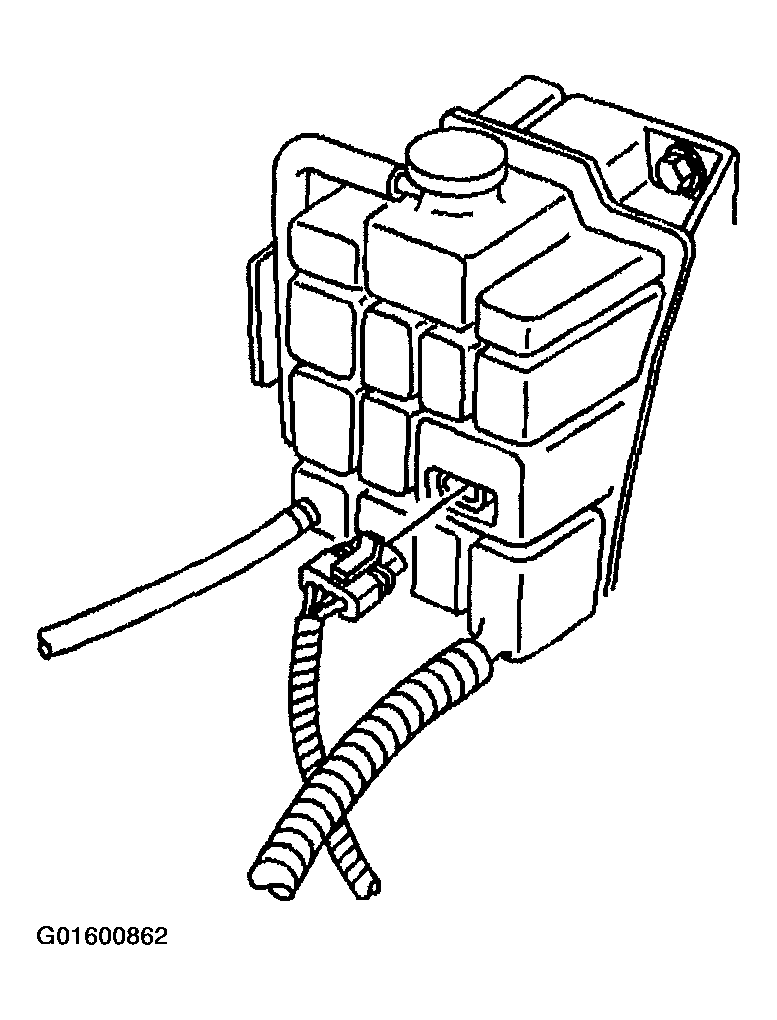

    Fig 3: Low Coolant Probe Electrical Connector
    G01600862Courtesy of GENERAL MOTORS CORP.
