Home >> GMC >> 2001 >> C3500 HD 6.5 F, Standard >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling >> Diagnostic Information and Procedures >> Engine Fails To Reach Normal Operating Temperature

Engine Fails To Reach Normal Operating Temperature

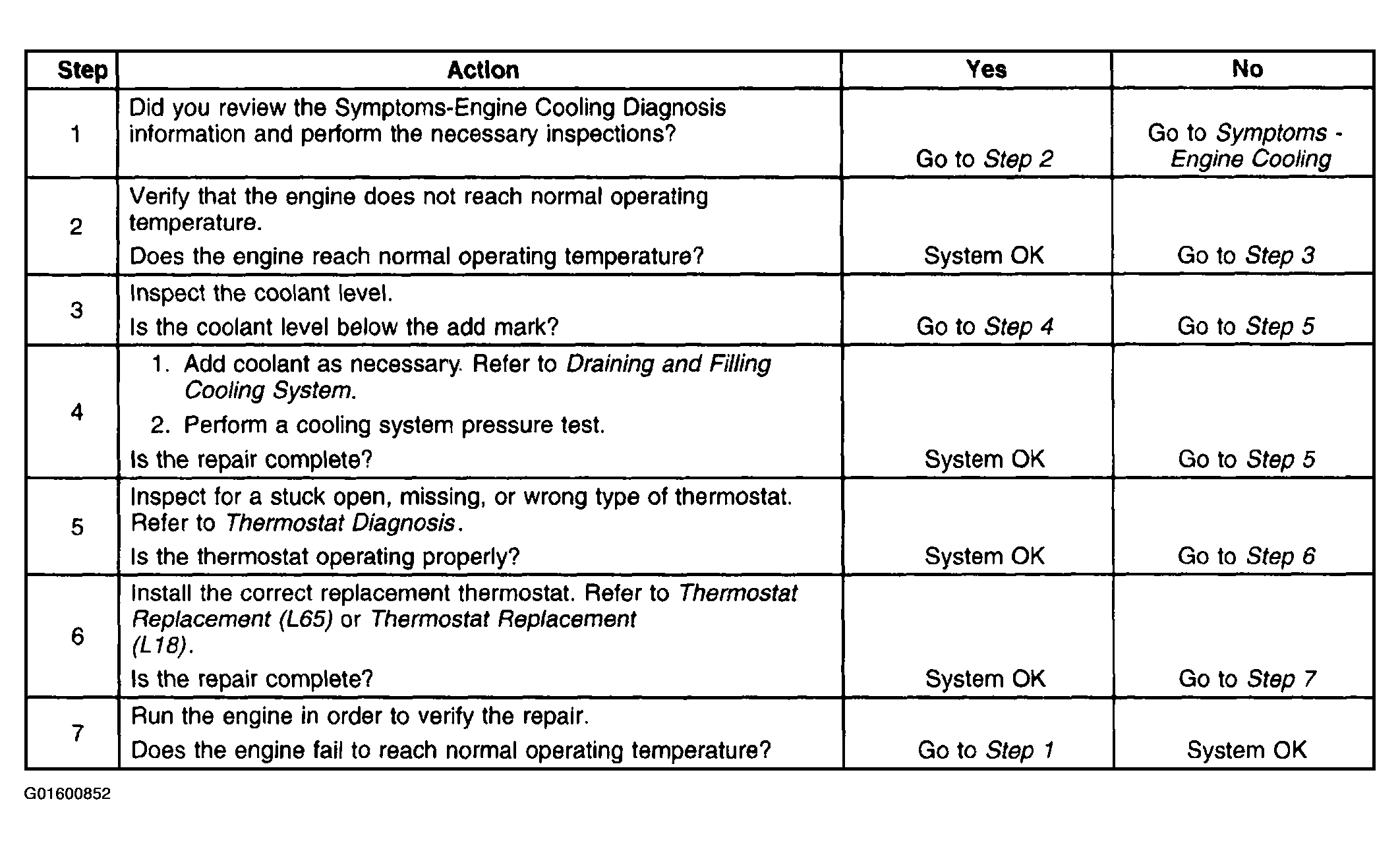

Fig 1: Engine Fails To Reach Normal Operating Temperature

G01600852

Courtesy of GENERAL MOTORS CORP.
