Controlled/Monitored Subsystem References

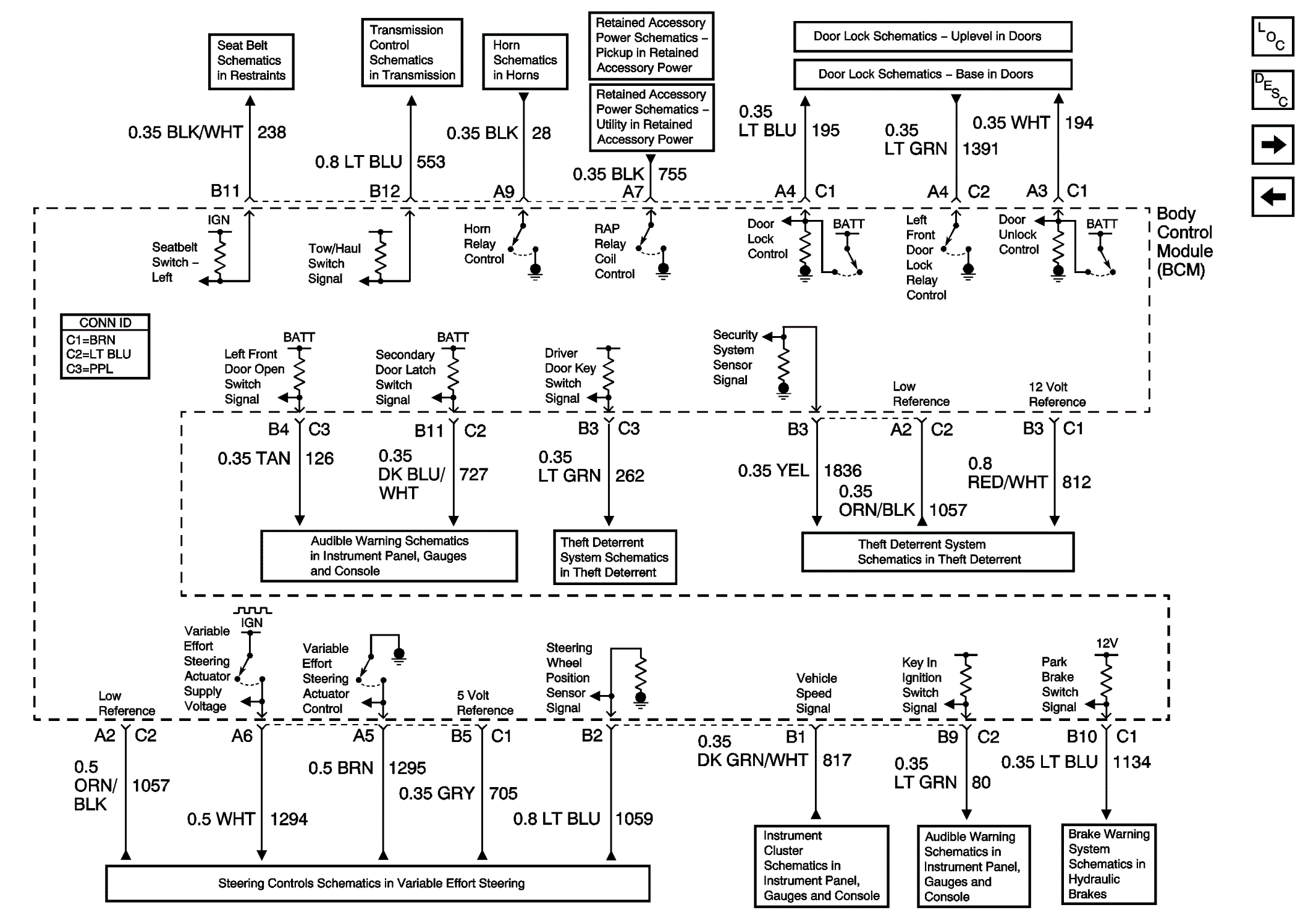

Fig 1: Controlled/Monitored Subsystem References Wiring Schematic

GM662747

Courtesy of GENERAL MOTORS COMPANY
