Throttle Actuator Control (TAC) Motor

WARNING: This page is about a different variant/trim than selected.

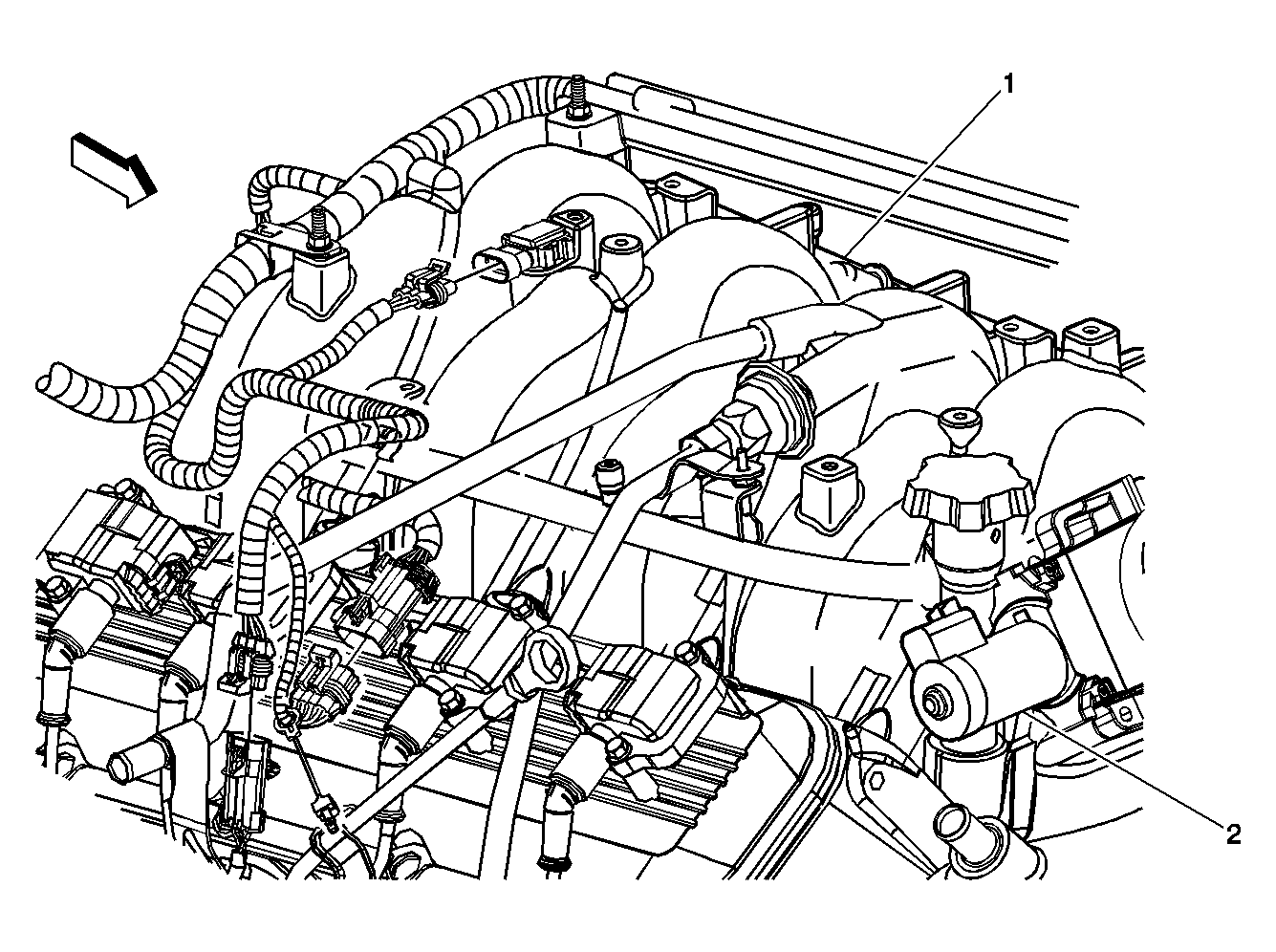

Fig 1: Throttle Actuator Control (TAC) Motor
GM776114Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine- 8.1L
2 TAC Motor
