Installation Procedure

WARNING: This page is about a different car, the 2002 GMC C3500 HD and 2002 Chevrolet C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the module in the wiper motor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the wiper motor cover with the three screws.

    Tighten

    Tighten the three screws to 2.6 N.m (23 lb in).

  3. Connect the electrical connector to the wiper motor.

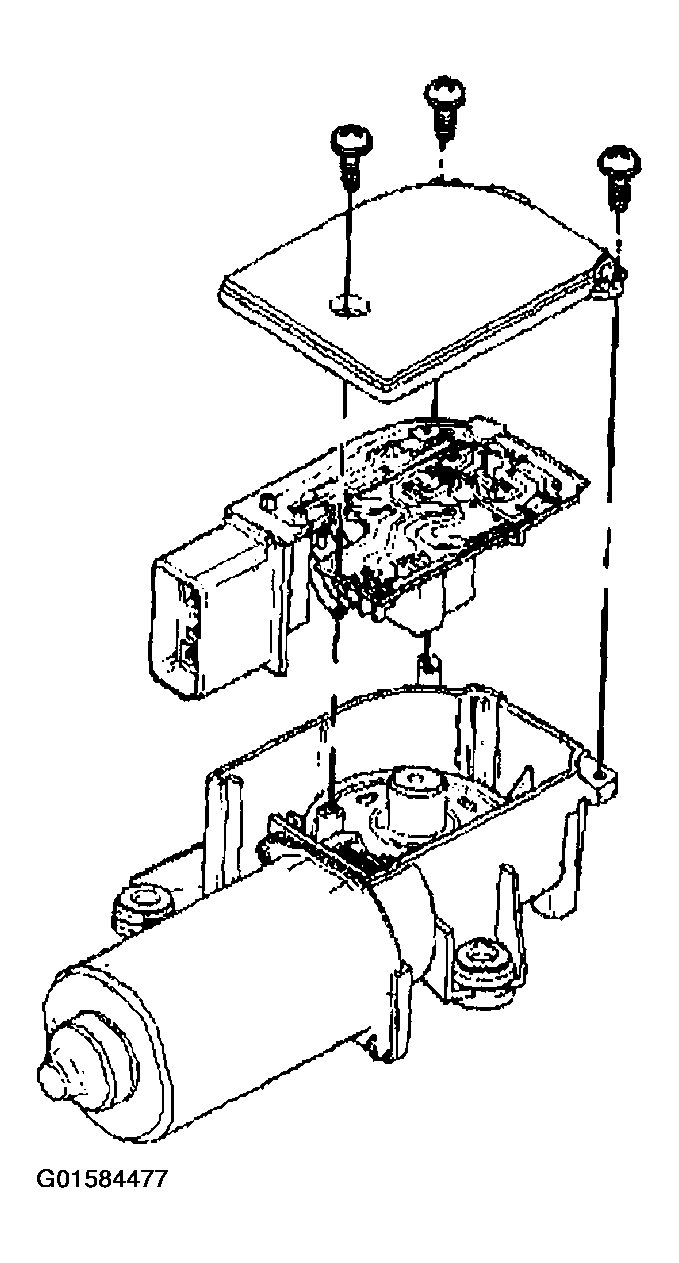

    Fig 1: Wiper Motor Cover, Module & Screws
    G01584477Courtesy of GENERAL MOTORS CORP.
