Installation Procedure

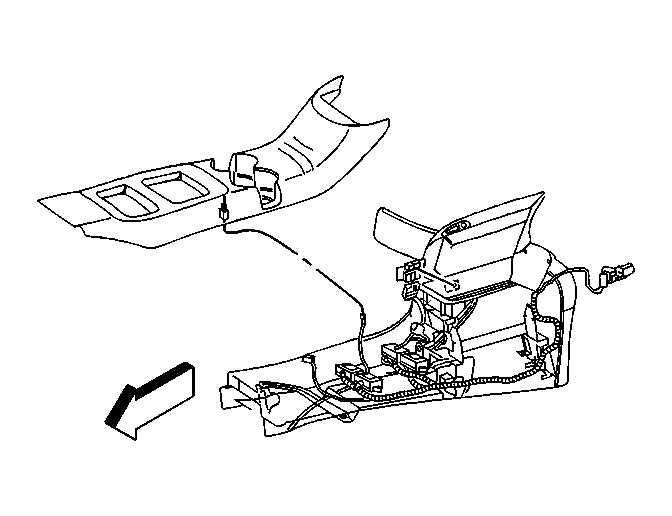

    Fig 1: Power Accessory Port Connector
    GM288158Courtesy of GENERAL MOTORS COMPANY
  1. Install the power accessory port into the floor console.
  2. Install the power accessory port connector.
  3. Install the console storage bin. Refer to Front Floor Console Compartment Replacement (Non-Luxury) .
