RF Fender

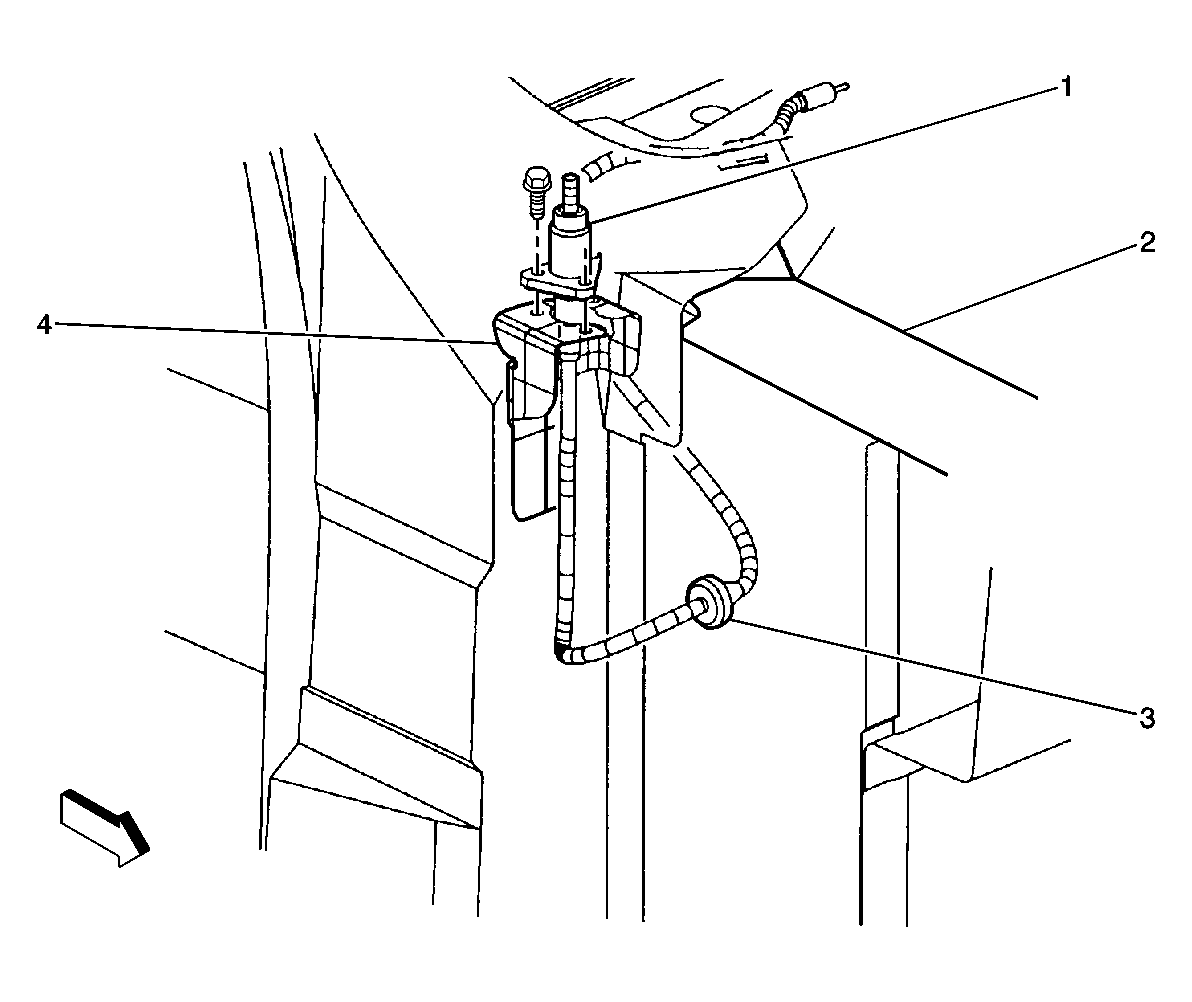

Fig 1: Antenna Mast Base And Bracket
GM327883Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Antenna Mast Base
2 Inner Fender-RH
3 Antenna Cable Pass-Through (Grommet)
4 Antenna Bracket
