Engine Identification

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

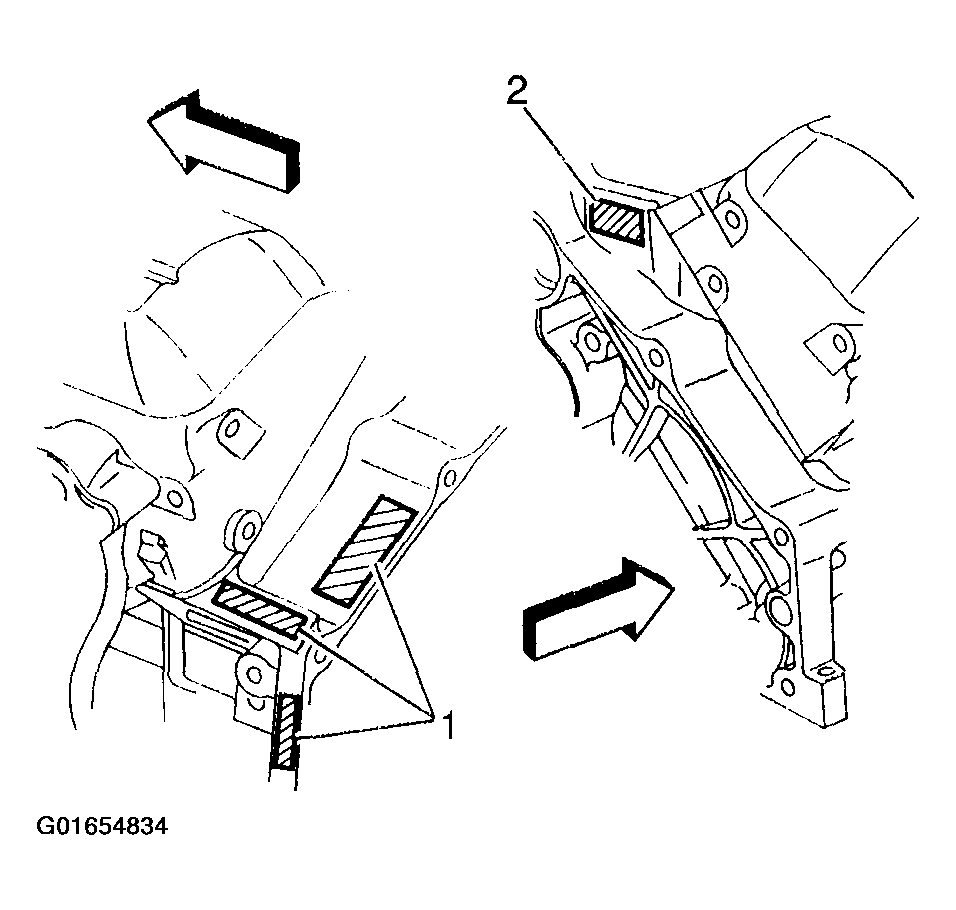

Fig 1: Locating VIN Code On Engine Block

Courtesy of GENERAL MOTORS CORP.

The Vehicle Identification Number (VIN) Derivative is located on the left side rear of the engine block (1) or on the right side rear (2) and typically is a nine digit number stamped or laser etched onto the engine at the vehicle assembly plant.
- The first digit identifies the division.
- The second digit identifies the model year.
- The third digit identifies the assembly plant.
- The fourth through ninth digits are the last six digits of the Vehicle Identification Number (VIN).

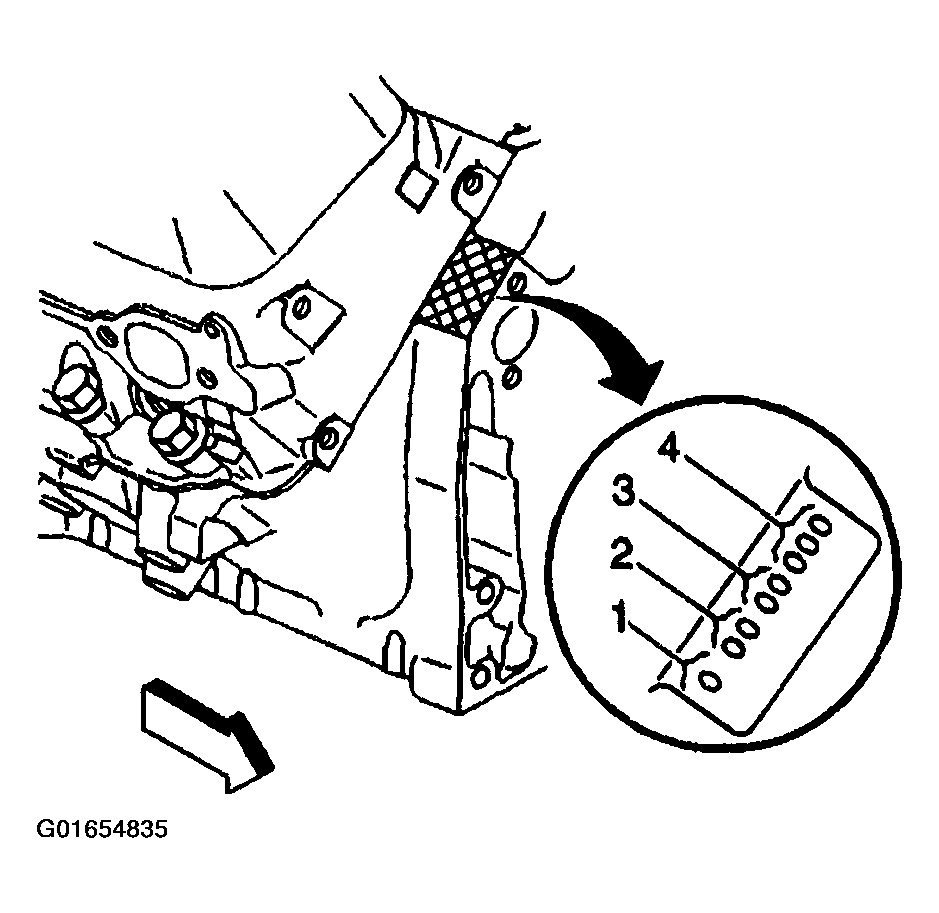

Engines built at the Tonawanda engine plant have the engine identification number located at the right front top of the engine block.
- The first digit (1) is the source code.
- The second and third digits (2) are the month of build.
- The forth and fifth digits (3) are the date of build.
- The sixth, seventh, and eighth digits (4) are the broadcast code.

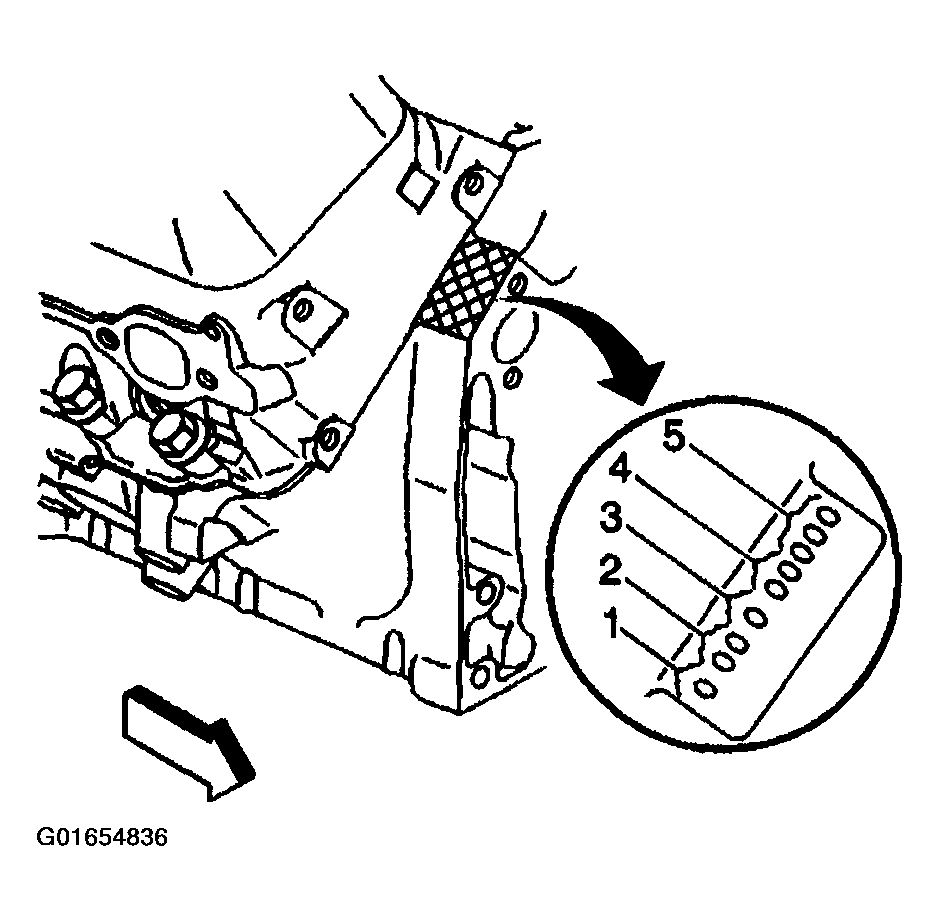

  Fig 3: Identifying VIN Code
  Courtesy of GENERAL MOTORS CORP.
Engines built at the Romulus engine plant have the engine identification number located at the right front top of the engine block.
- The first digit (1) is the source code.
- The second and third digits (2) are the month of build.
- The fourth digit (3) is the hour of the build.
- The fifth and sixth digits (4) are the date of build.
- The seventh, eighth, and ninth digits (5) are the broadcast code.
