Body Control System Schematics (Power, Ground, and DLC)

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

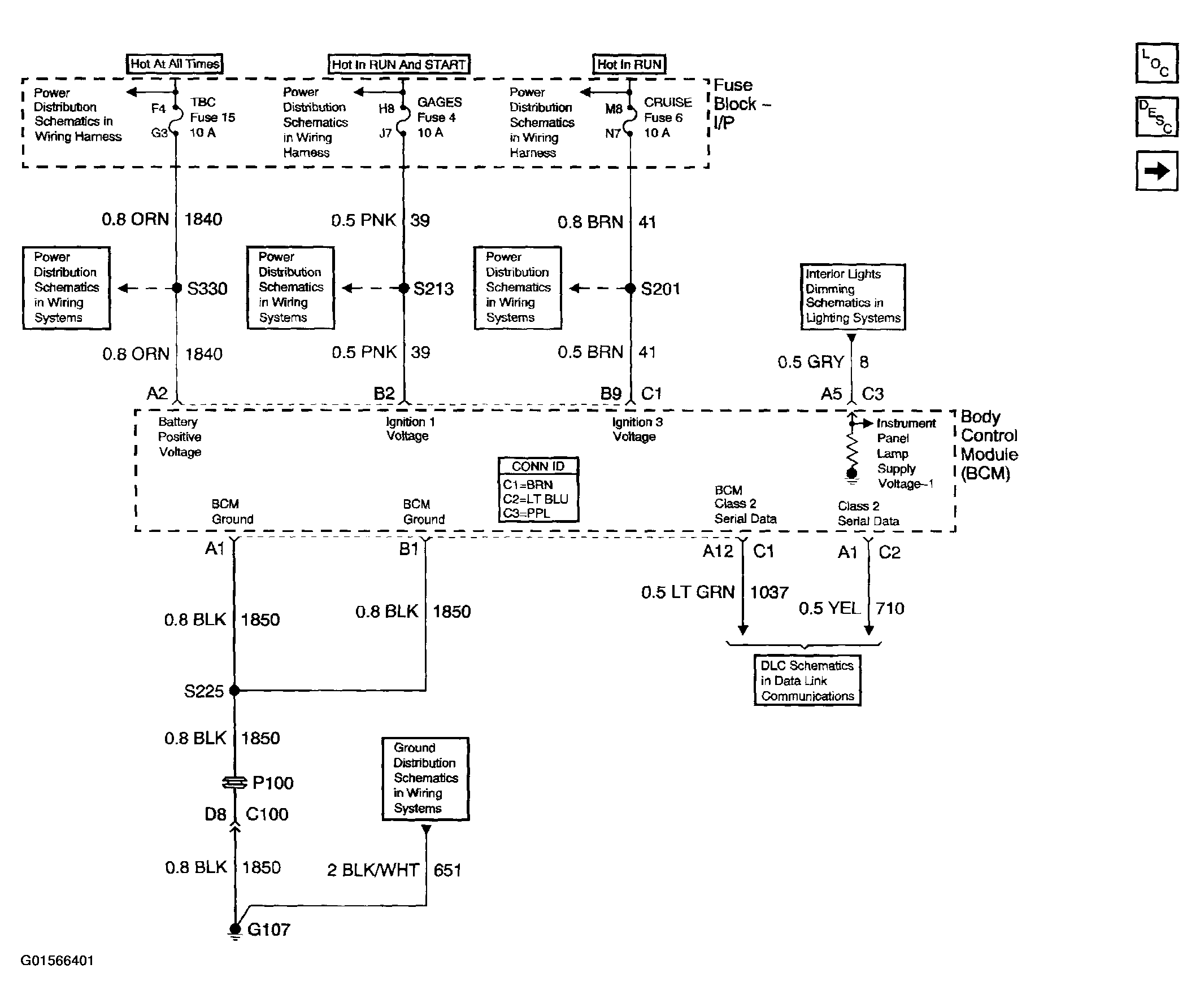

Fig 1: Body Control System Schematics (Power, Ground, And DLC)

Courtesy of GENERAL MOTORS CORP.

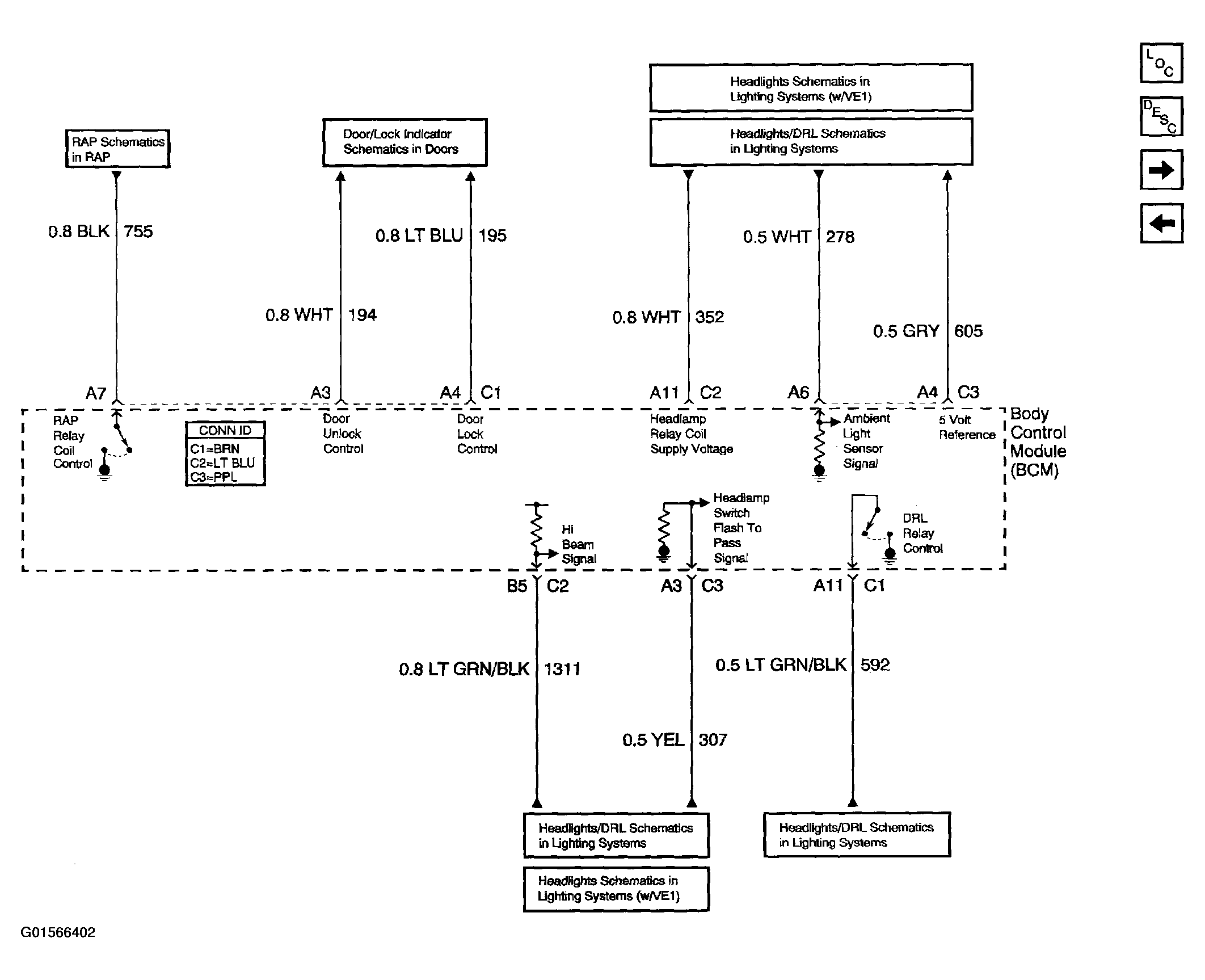

Fig 2: Body Control System Schematics (RAP, Door/Locks, Headlights/DRL, Headlights (W/VE1))

Courtesy of GENERAL MOTORS CORP.

Fig 3: Body Control System Schematics (Theft Deterrent, A/T Audible Warnings, Brake Warnings, Interior Lights)

Courtesy of GENERAL MOTORS CORP.

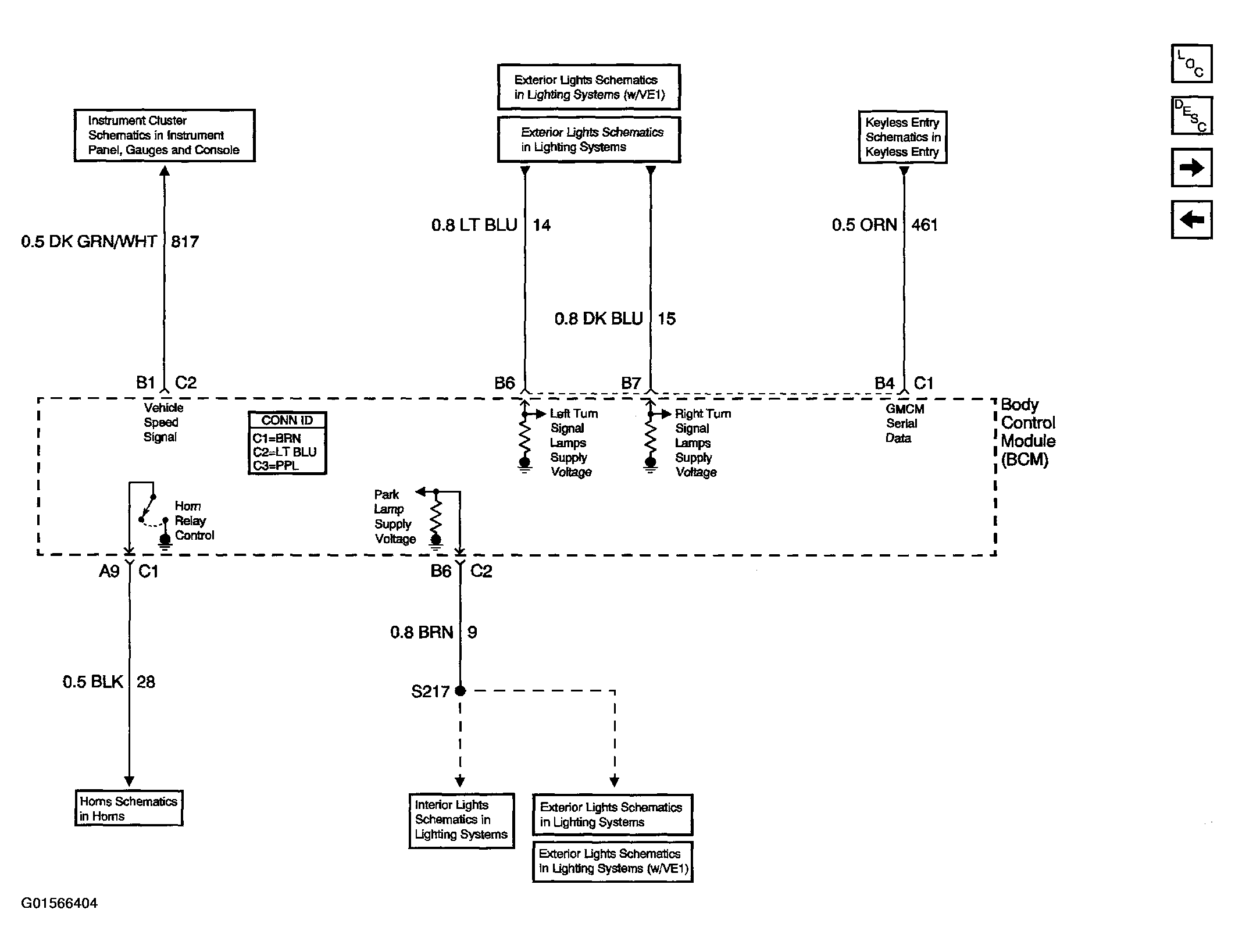

Fig 4: Body Control System Schematics (Horns, Interior/Exterior Lights, RKE, Instrument Cluster)

Courtesy of GENERAL MOTORS CORP.

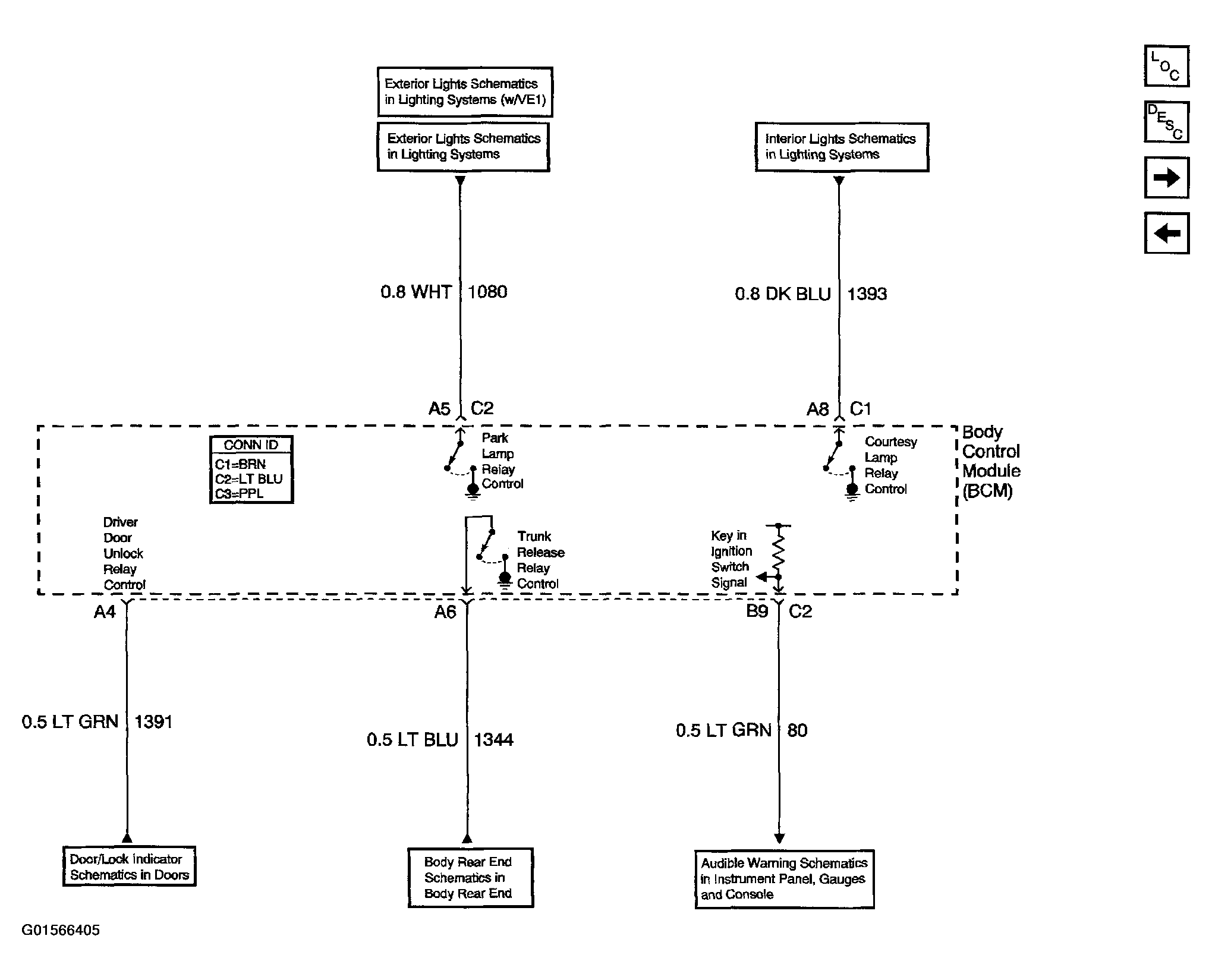

Fig 5: Body Control System Schematics (Exterior/Interior Lights, Door/Locks, Body Rear End, Audible Warnings)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Body Control System Schematics (Headlights/DRL, Headlights (Export), And Interior Lights)

Courtesy of GENERAL MOTORS CORP.
