Spring Bushing: Installation

  1. Apply rubber lubricant to the bushing (1). Apply lubricant to the spring eye (2). See Fig 1.
  2. Install the bushing to the spring assembly. Press the bushing into the spring using an arbor press. See Figure.
  3. Install the spring assembly to the vehicle.

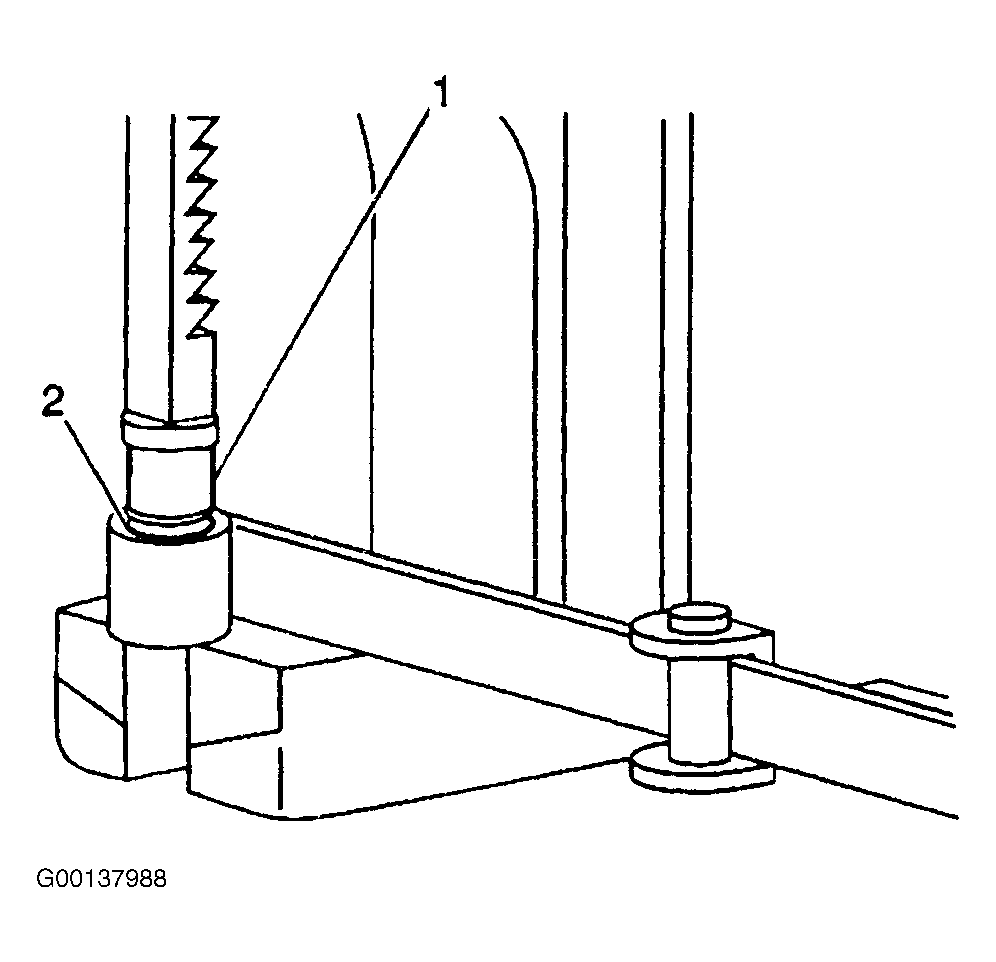

Fig 1: Installing Bushing Into Spring Eye
G00137988Courtesy of GENERAL MOTORS CORP.
