Distributor Removal

  1. Remove the ignition coil wire harness from the ignition coil and distributor cap.

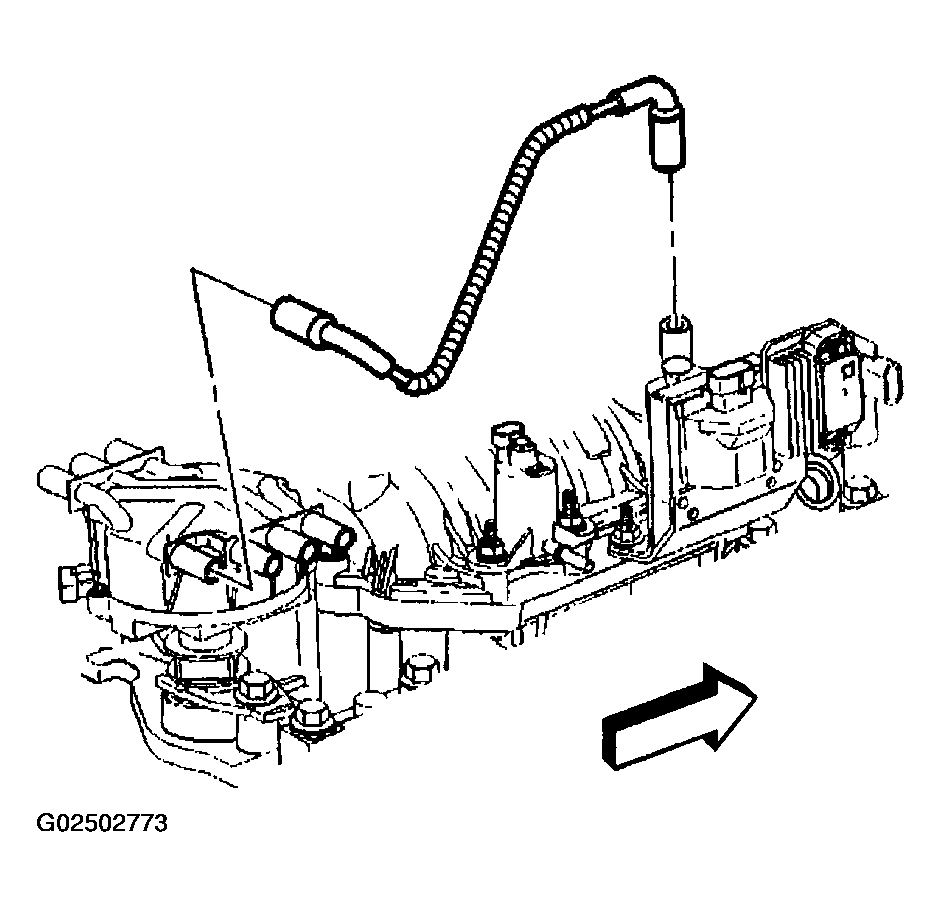

    Fig 1: Ignition Coil Wire
    G02502773Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor clamp bolt.
  3. Remove the distributor and the distributor clamp.

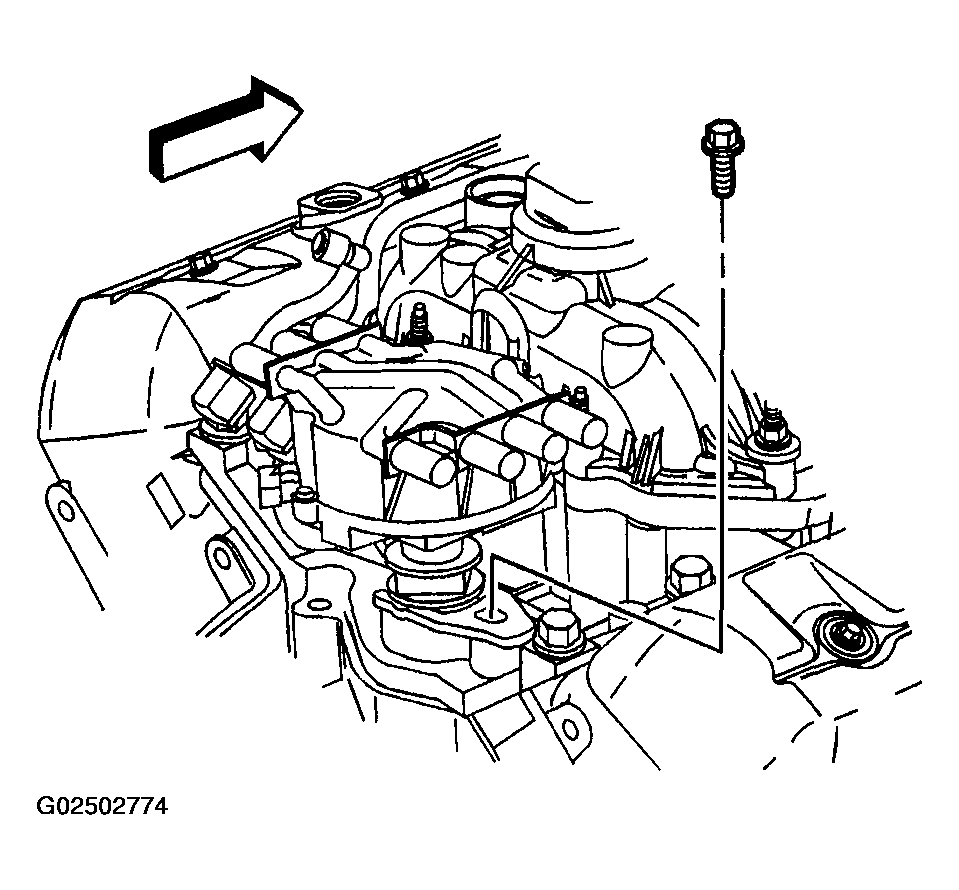

    Fig 2: Distributor Clamp
    G02502774Courtesy of GENERAL MOTORS CORP.
  4. Remove the distributor gasket and discard.
    Fig 3: Distributor Gasket
    G02502775Courtesy of GENERAL MOTORS CORP.
