Instrument Cluster System Check

WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

For the Instrument Cluster System Check, see Fig 1 .

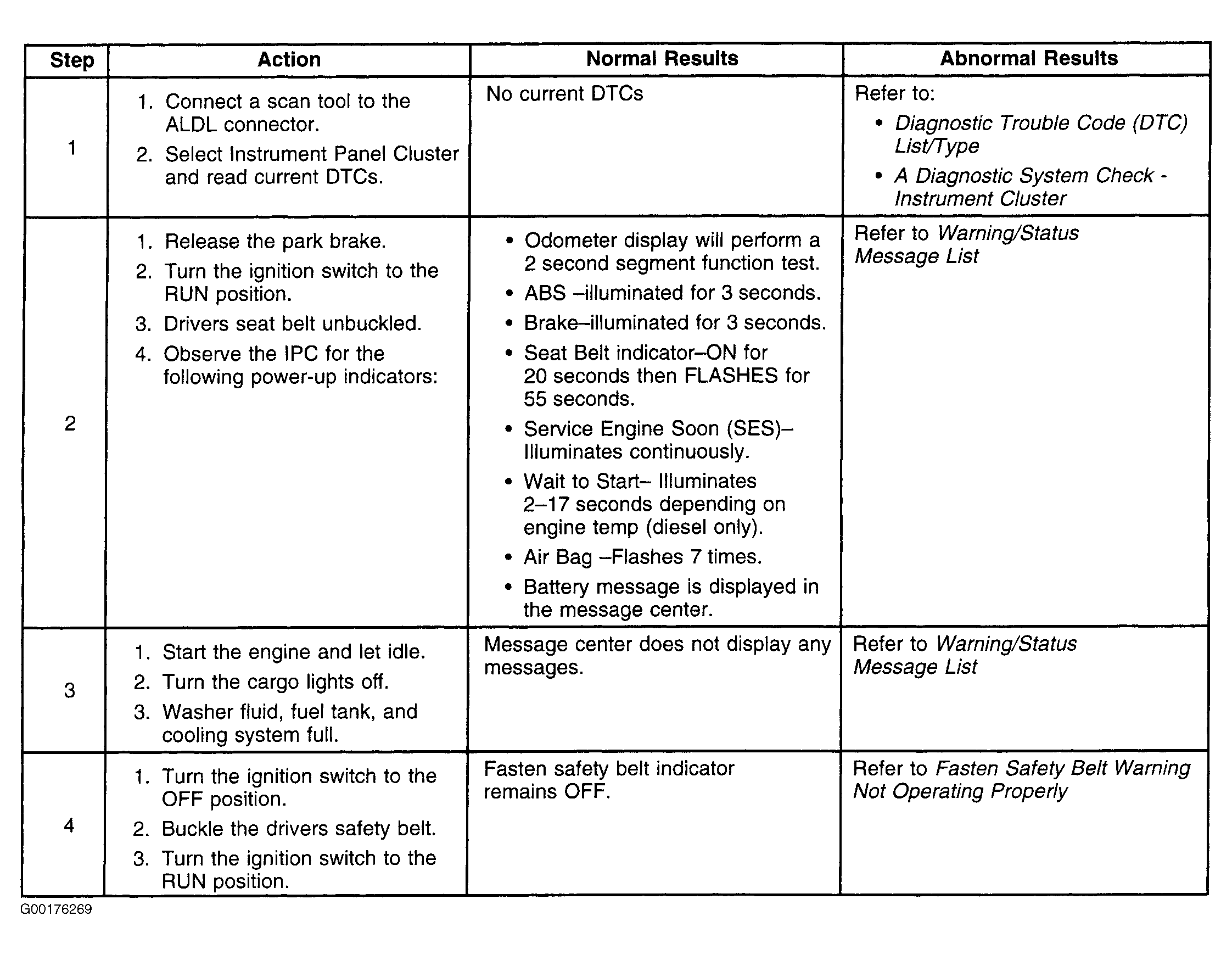

Fig 1: Instrument Cluster System Check (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

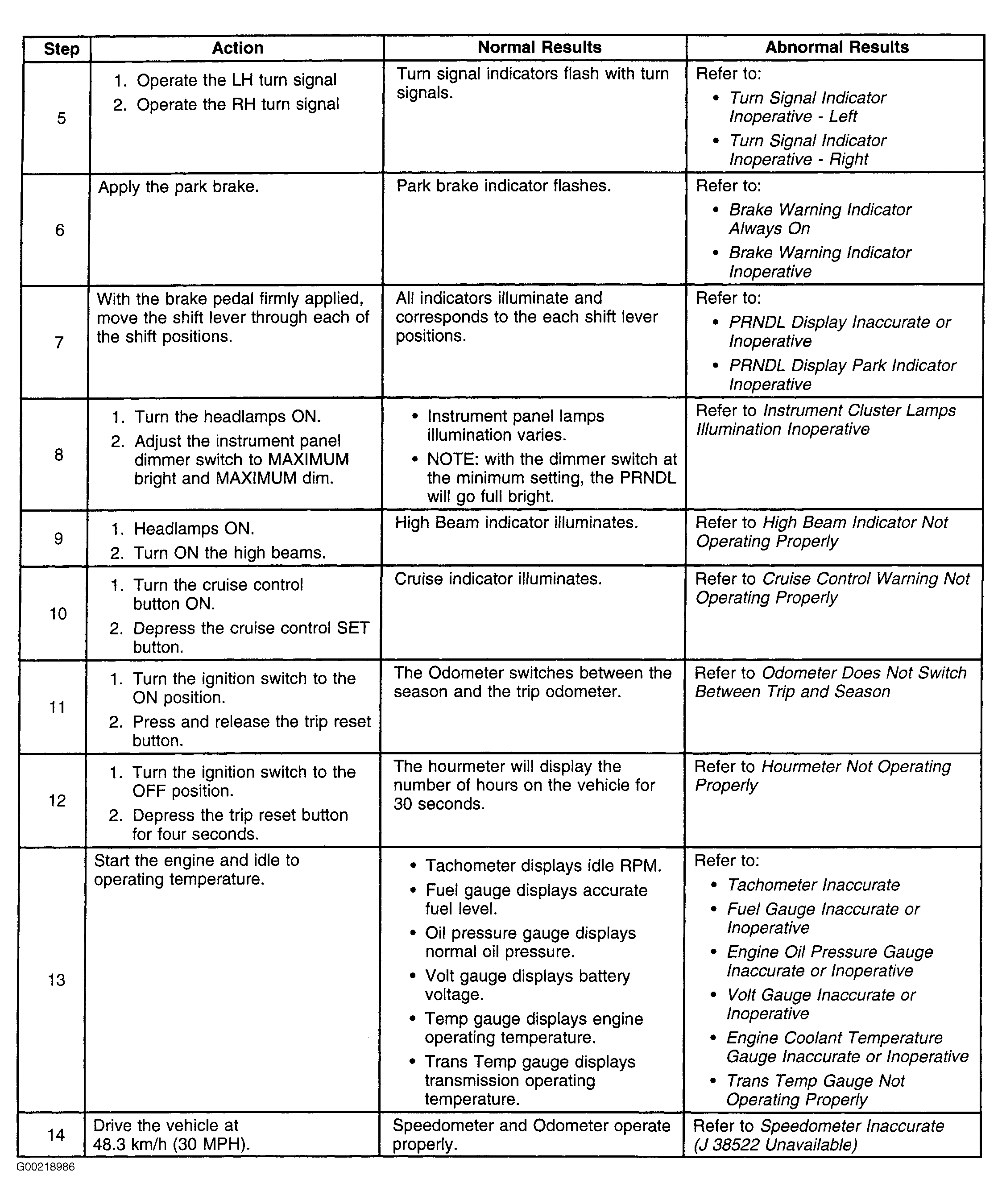

Fig 2: Instrument Cluster System Check (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
