GMC
>>
1999
>>
Yukon Denali
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock System
>>
Connector Identification
>>
Door Lock Relay
Door Lock Relay

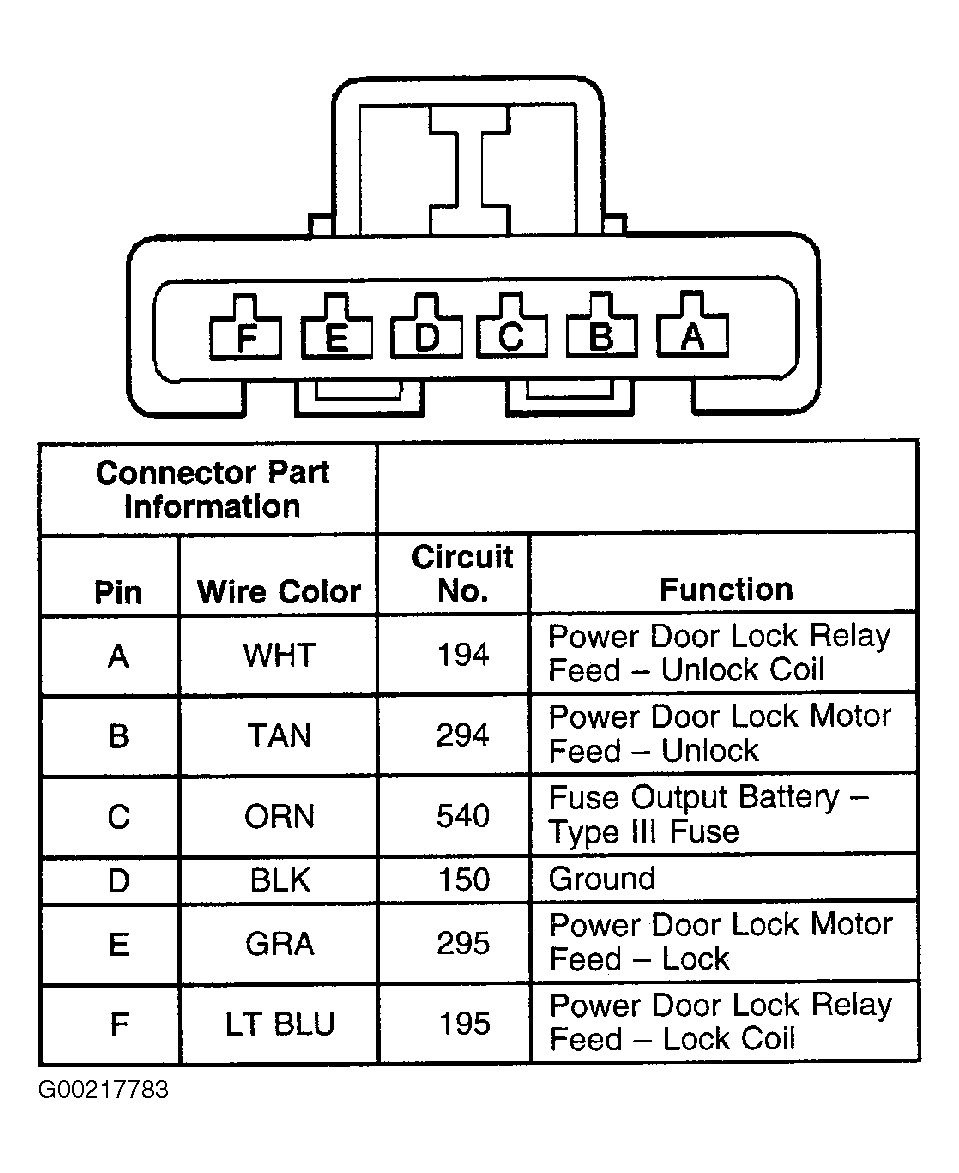

Fig 1: Door Lock Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
