Test I: Panic Mode Inoperative

For test procedure, refer to illustrations. See Fig 1 and Fig 2 .

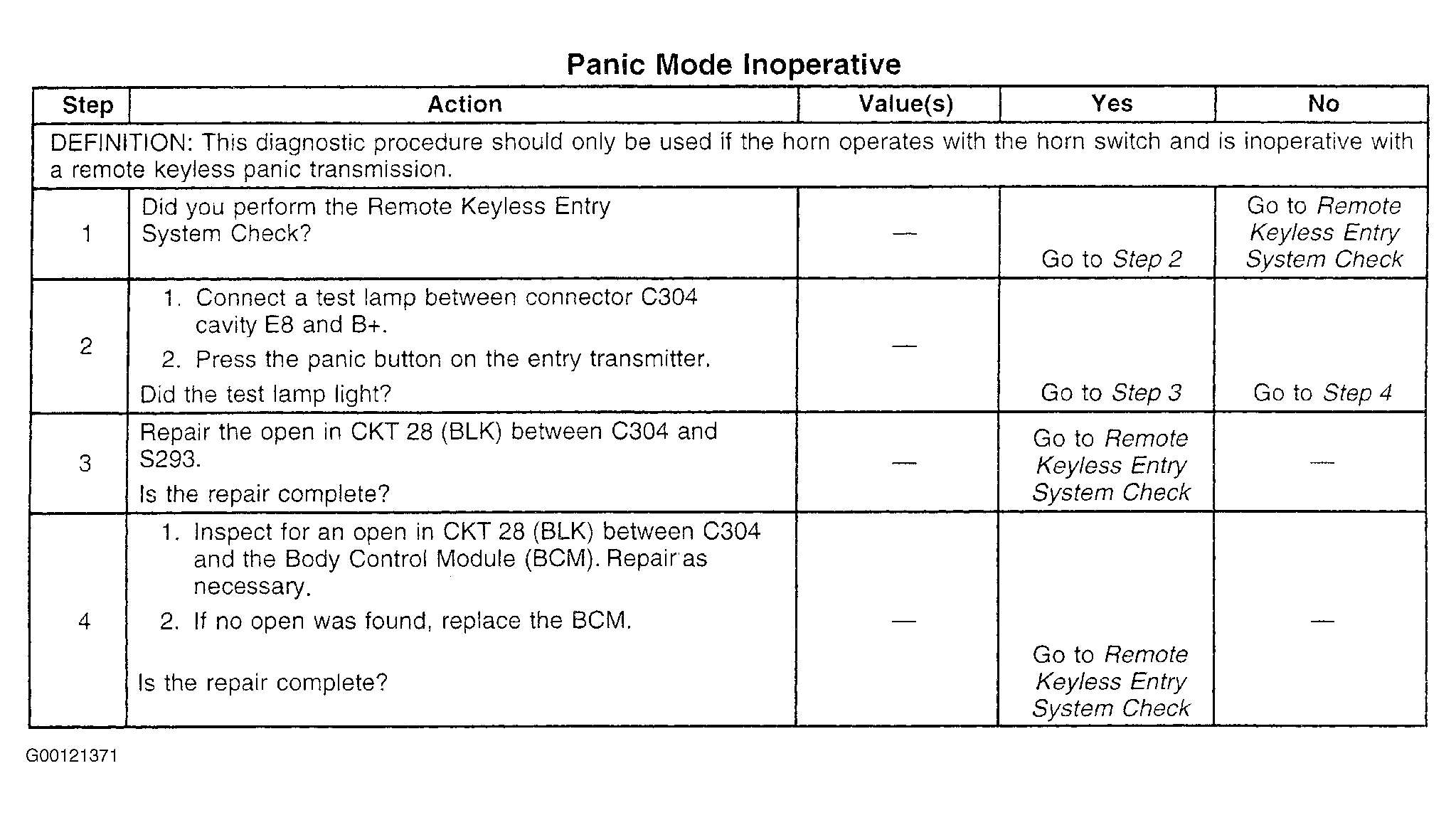

Fig 1: Test I: Panic Mode Inoperative

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying C304 In-Line Connector Terminals

Courtesy of GENERAL MOTORS CORP.
