Air Bag Module: Installation
WARNING: This page is about a different car, the 1997 Oldsmobile Bravada, 1997 GMC Sonoma, 1997 GMC Jimmy, 1997 Chevrolet S10 Pickup, and 1997 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

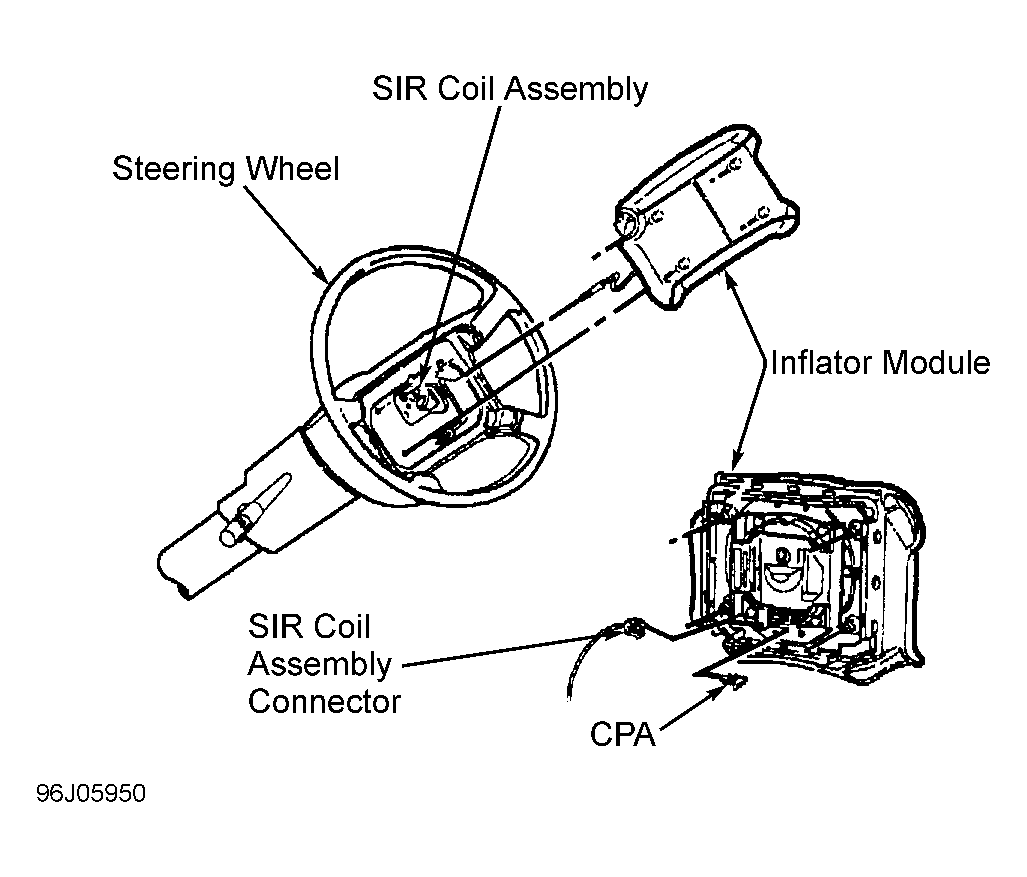

- Install CPA clip and retainer to air bag module. Connect SIR lead wire to clip on steering wheel and air bag module. Install air bag module by pressing it firmly into steering wheel enough to engage and latch all four notched pins in the leaf spring. Do not pinch wires. See Figure .
- Reactivate air bag system. See DISABLING & ACTIVATING SIR SYSTEM . Check AIR BAG warning light to ensure system is functioning properly. See SYSTEM OPERATION CHECK .
