Test G: Unlock Inoperative, Lock Operates

For test procedures, refer to illustration. See Fig 1 and Figure .

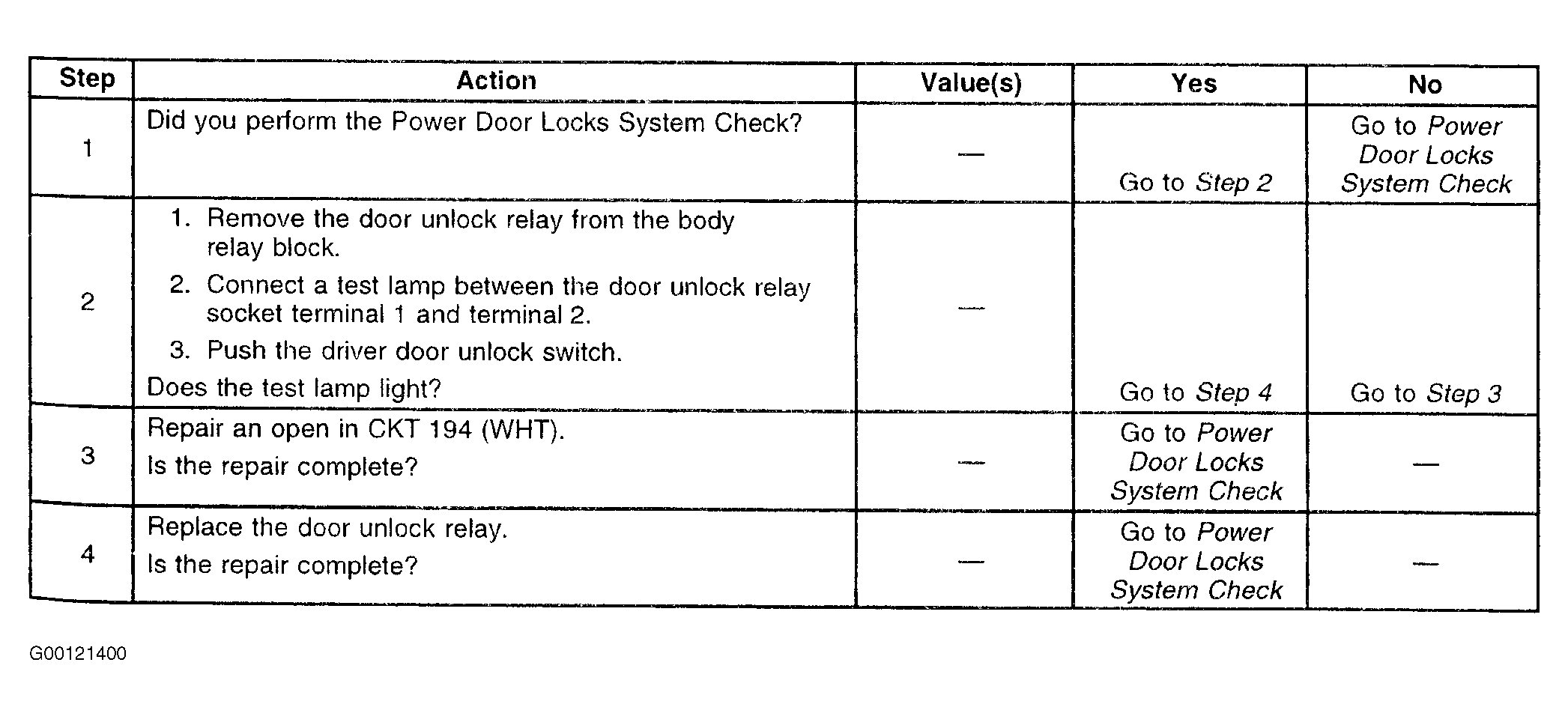

Fig 1: Test G: Unlock Inoperative, Lock Operates
G00121400Courtesy of GENERAL MOTORS CORP.
