Test F: Lock Inoperative, Unlock Operates

For test procedures, refer to illustration. See Fig 1 and Figure .

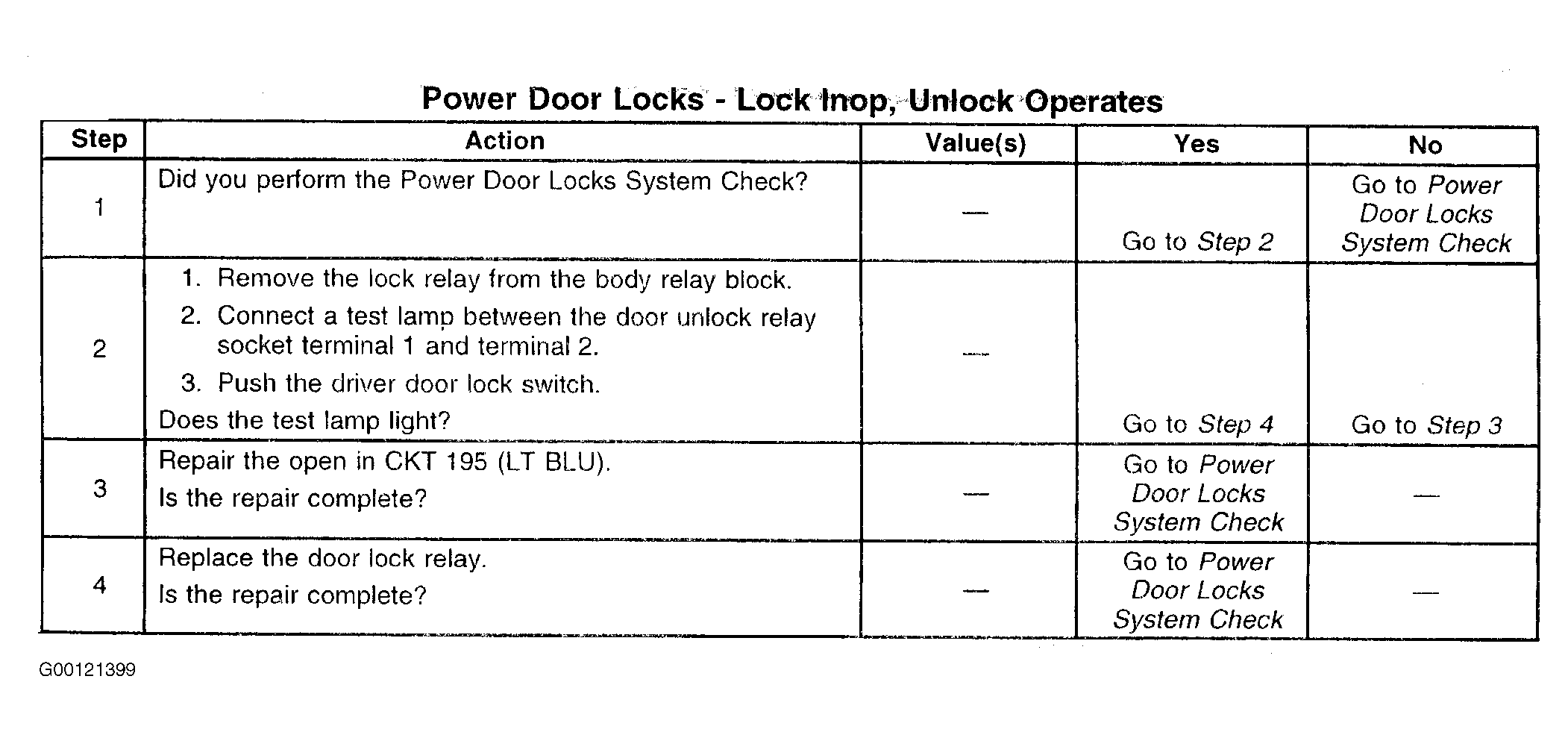

Fig 1: Test F: Lock Inoperative, Unlock Operates
G00121399Courtesy of GENERAL MOTORS CORP.
