Test E: Lockout Mode Inoperative

For test procedures, refer to illustration. See Fig 1 .

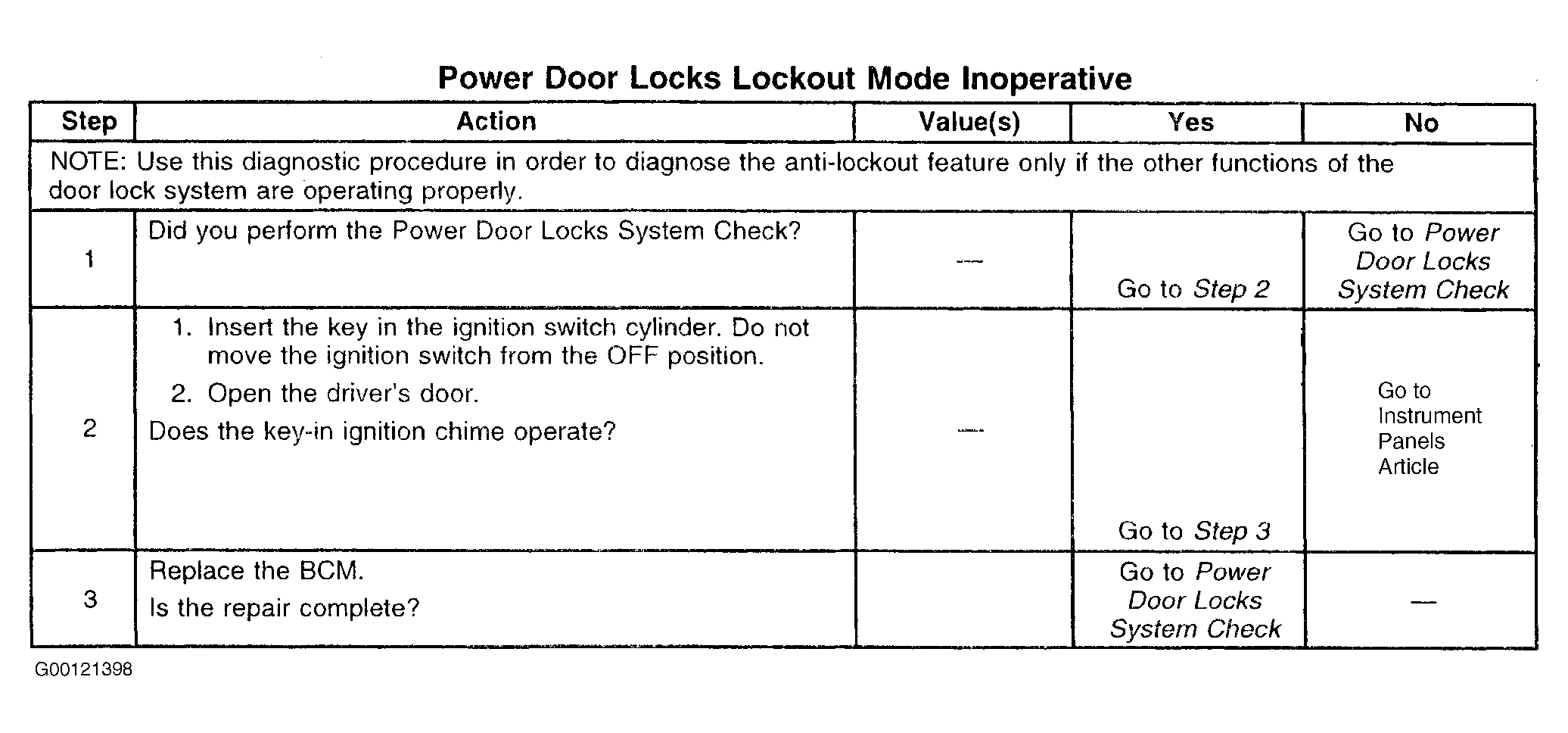

Fig 1: Test E: Lockout Mode Inoperative
G00121398Courtesy of GENERAL MOTORS CORP.
