Test D: Lockout Feature Inoperative

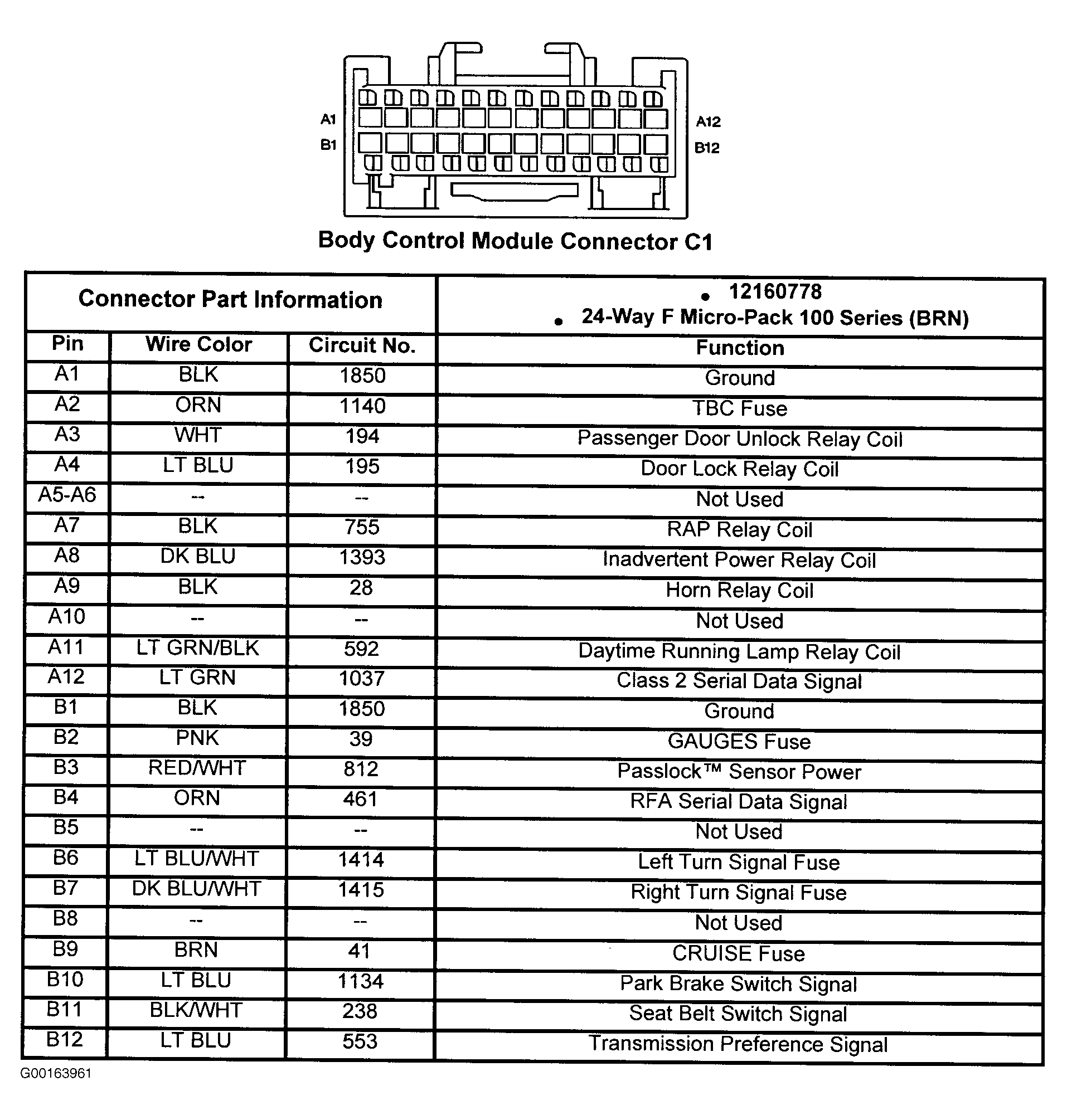

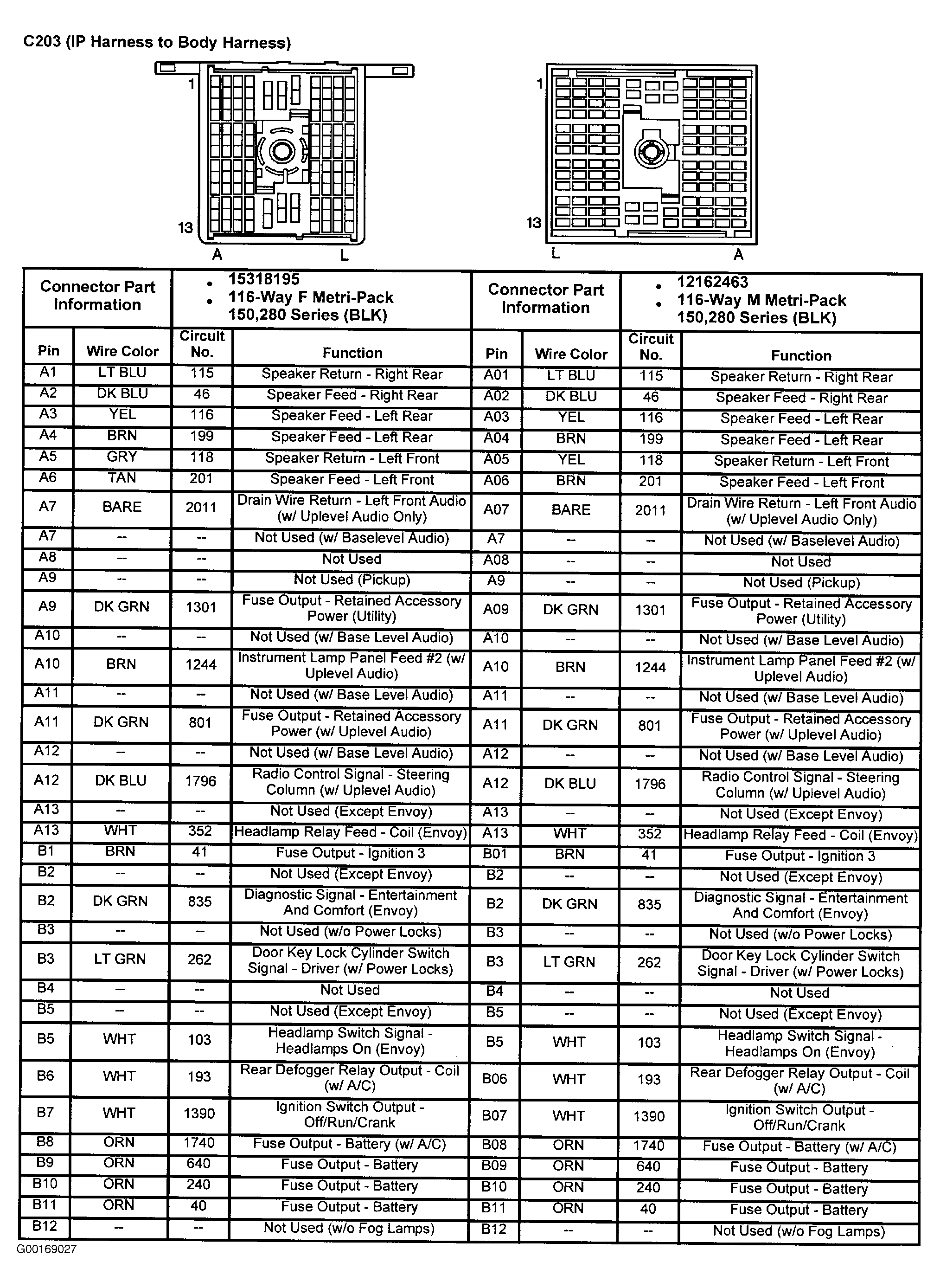

For test procedures, refer to illustration. See Fig 1 -Fig 3 , Figure -Figure and Figure -Figure .

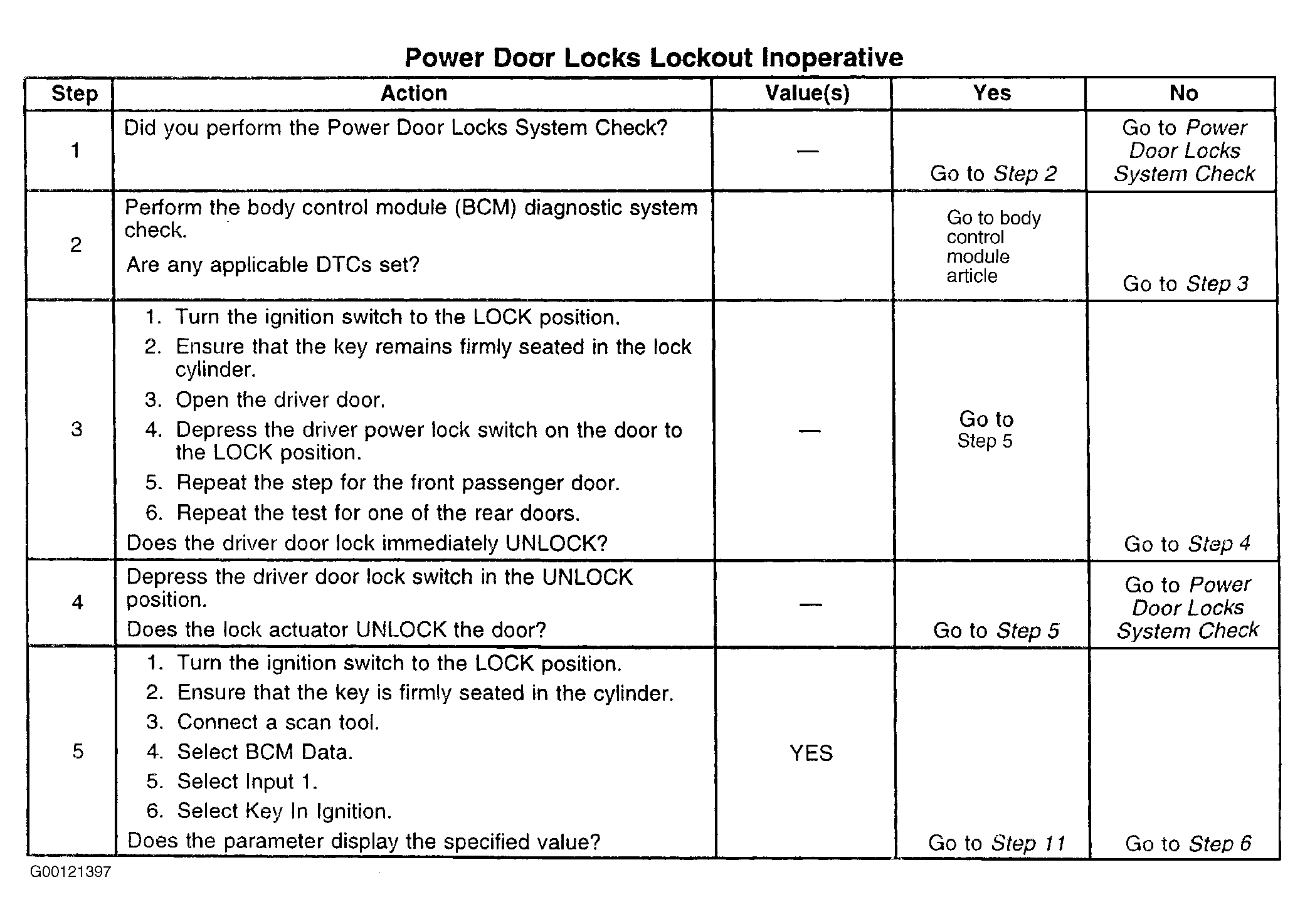

Fig 1: Test D: Lockout Feature Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

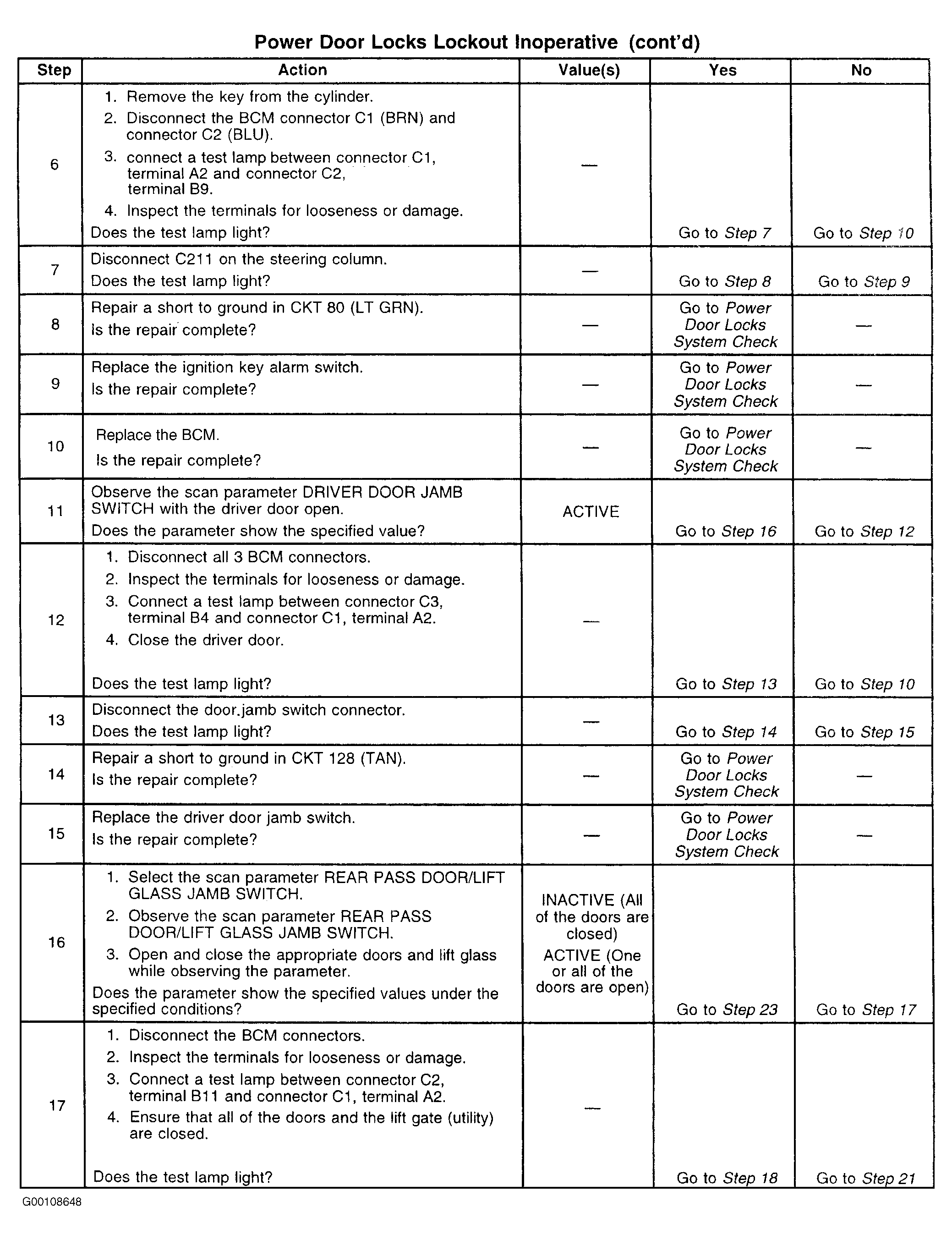

Fig 2: Test D: Lockout Feature Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

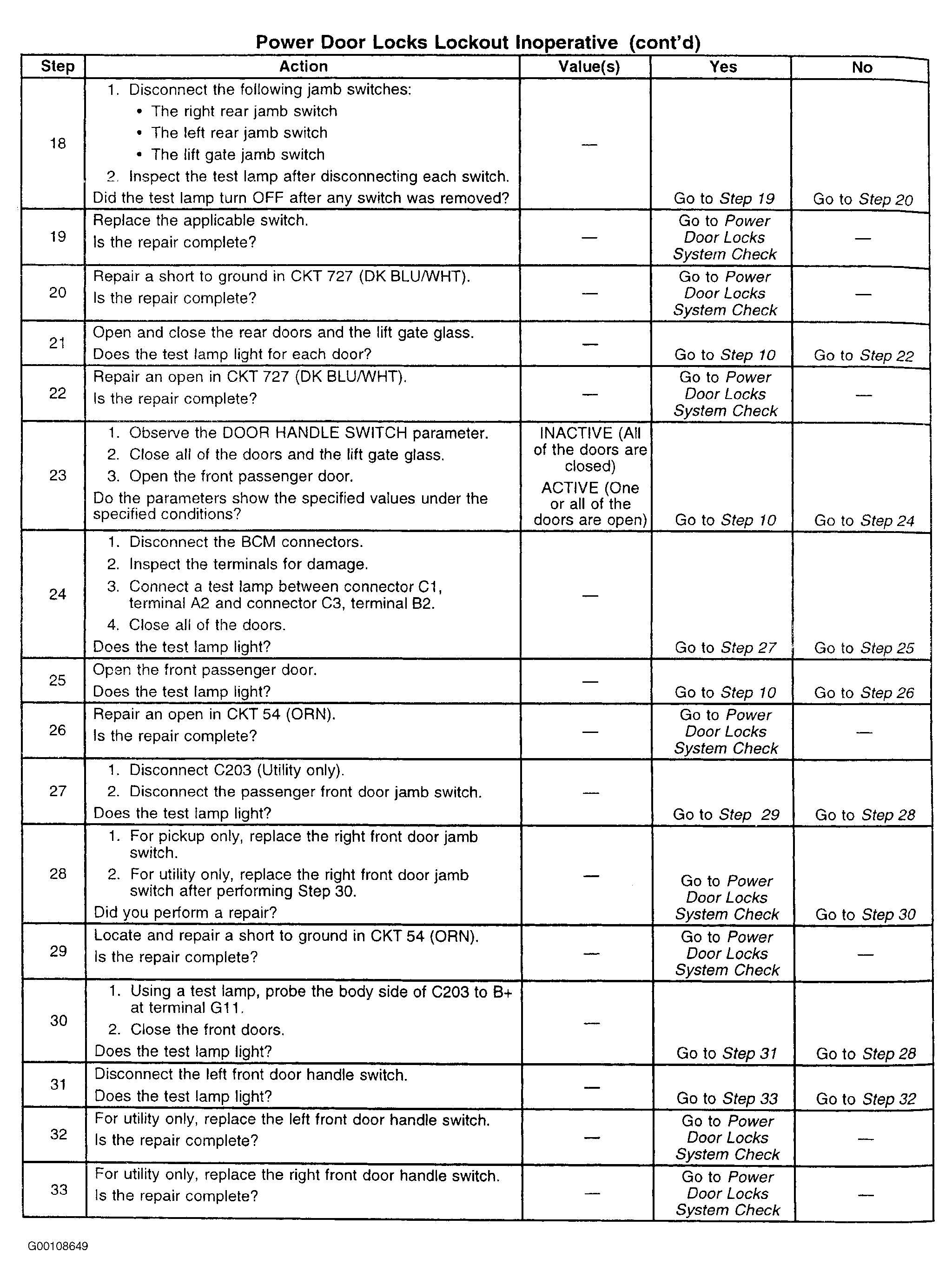

Fig 3: Test D: Lockout Feature Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
