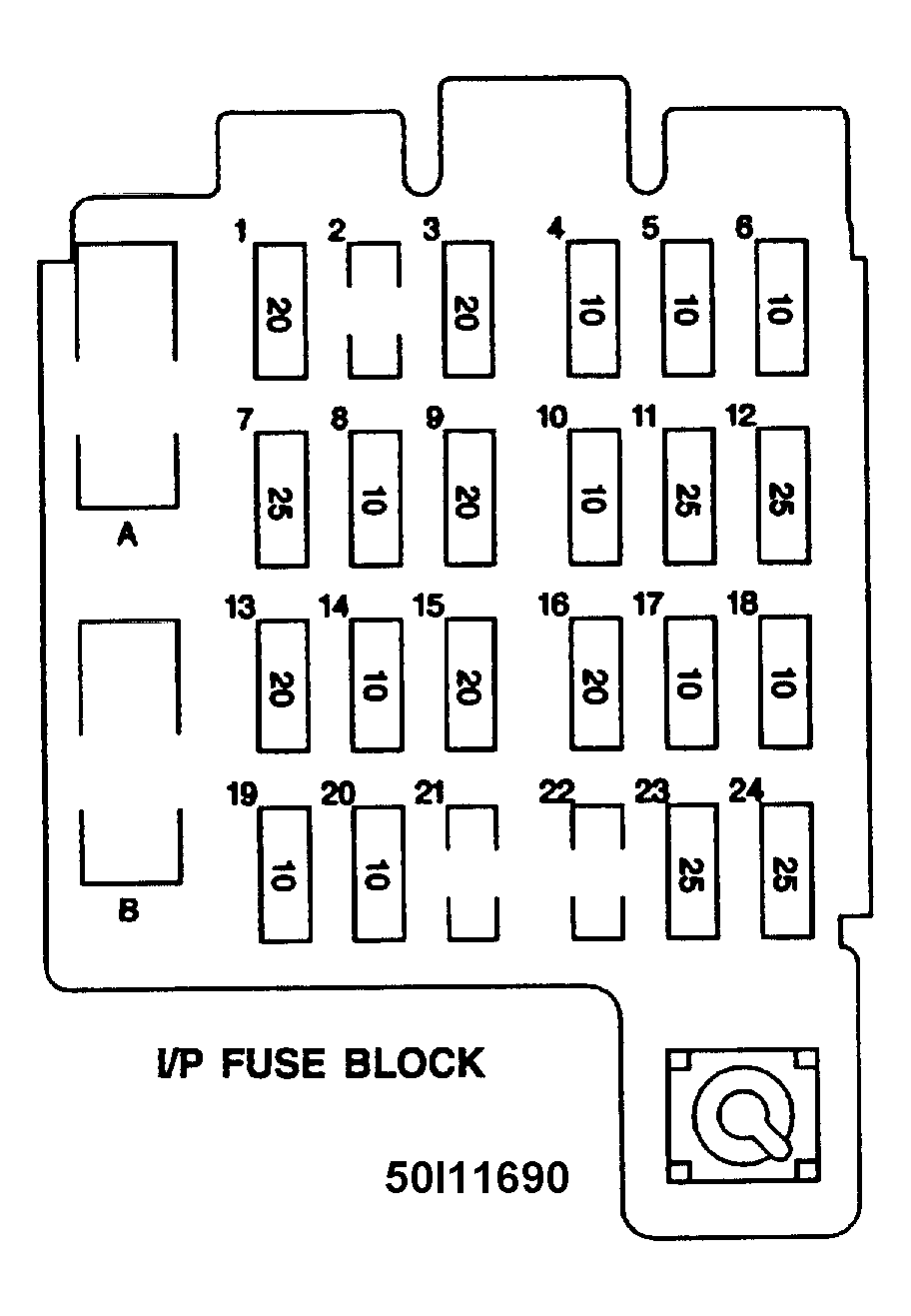

Fuse Panel Identification
Fuse & Circuit Breaker Identification
- 1 - Stop/Haz 20 Amp (Yellow) - Stop/TCC Switch, Hazard Flasher, Seat Belt Reminder, Stoplights, CHMSL (Center High Mounted Stop Light)
- 2 - T Case (Not Used) - Transfer Case
- 3 - CTSY 20 Amp (Yellow) - Courtesy Lamps, Cargo Lamp, Glove Box Light, Power Mirrors, Dome/Reading Lamps, Vanity Mirrors
- 4 - Gauges 10 Amp (Red) - DRL Relay, DRL Module Buzzer, Headlamp Switch, Keyless Entry, Cluster/Gauges, Low Coolant Module, Convenience Center Electrochromatic Rearview Mirror with Compass
- 5 - RR HVAC 10 Amp (Red) - RR HVAC Controls
- 6 - Cruise 10 Amp (Red) - Cruise Module, Cruise Activator Switch
- 7 - AUX PWR 25 Amp (Clear) - Power Outlets (2)
- 8 - Crank 10 Amp (Red) - Diesel Fuel Pump, DERM ECM (Air Bag), PCM
- 9 - Park Lamps 20 Amp (Yellow) - License Plate Light, Park Lamps, Tail Lamps, Ashtray Lamp, Door Switch Illumination, Headlight ON Warning, Side Marker Fog Lamp Relay, Clearance Lights, Heater & A/C Illumination,
- 10 - Air Bag 10 Amp (Red) - DERM (Air Bag)
- 11 - Wiper 25 Amp (Clear) - Windshield Washer/Wiper
- 12 - HTR-A/C 25 Amp (Clear) - L, M1, M2 Blower, HVAC Indicator Lamp, A/C Compressor, Mode/Temp/Air In Actuator, High Blower Relay
- 13 - CIG LTR 20 Amp (Yellow) - Cigar Lighter, Power Amplifier, Door Lock Relay, Power Lumbar Seat, Rear Liftglass
- 14 - ILLUM 10 Amp (Red) - 4WD Indicator Lamp, Cluster, HVAC Controls, Chime Module, Radio Illumination, Instrument Panel Switches, RR HVAC Controls
- 15 - DRL-FOG 20 Amp (Yellow) - DRL Relay, Fog Lamps
- 16 - Turn B/U 20 Amp (Yellow) - Front Turn, RR Turn, Trailer Turn, Back-up Lamps, BTSI (Brake/Transmission Shift Interlock) Solenoid
- 17 - Radio 10 Amp (Red) - Radio (IGN)
- 18 - Brake 10 Amp (Red) - DRAC, 4WAL/PCM, ABS, Cruise
- 19 - Radio 10 Amp (Red) - Radio (BATT)
- 20 - Acc/Ign 10 Amp (Red) - PRNDL, Auto Transmission, Speedometer, Check Gauges, Tell Tale
- 21 - Not Used
- 22 - Not Used
- 23 - RR Wiper 25 Amp (Clear) - Rear Wiper, Rear Wash Pump
- 24 - 4WD 25 Amp (Clear) 4X4 Models - Front Axle Actuator, 4WD Indicator Lamp, TP2 Relay, Hour Meter (7Y4 Option)
- A - PWR ACCY 30 Amp (Circuit Breaker) - Power Door Lock, 6 Way Power Seat, Keyless Entry Module
- B - PWR WDOS 30 Amp (Circuit Breaker) - Power Windows
