Connector Identification

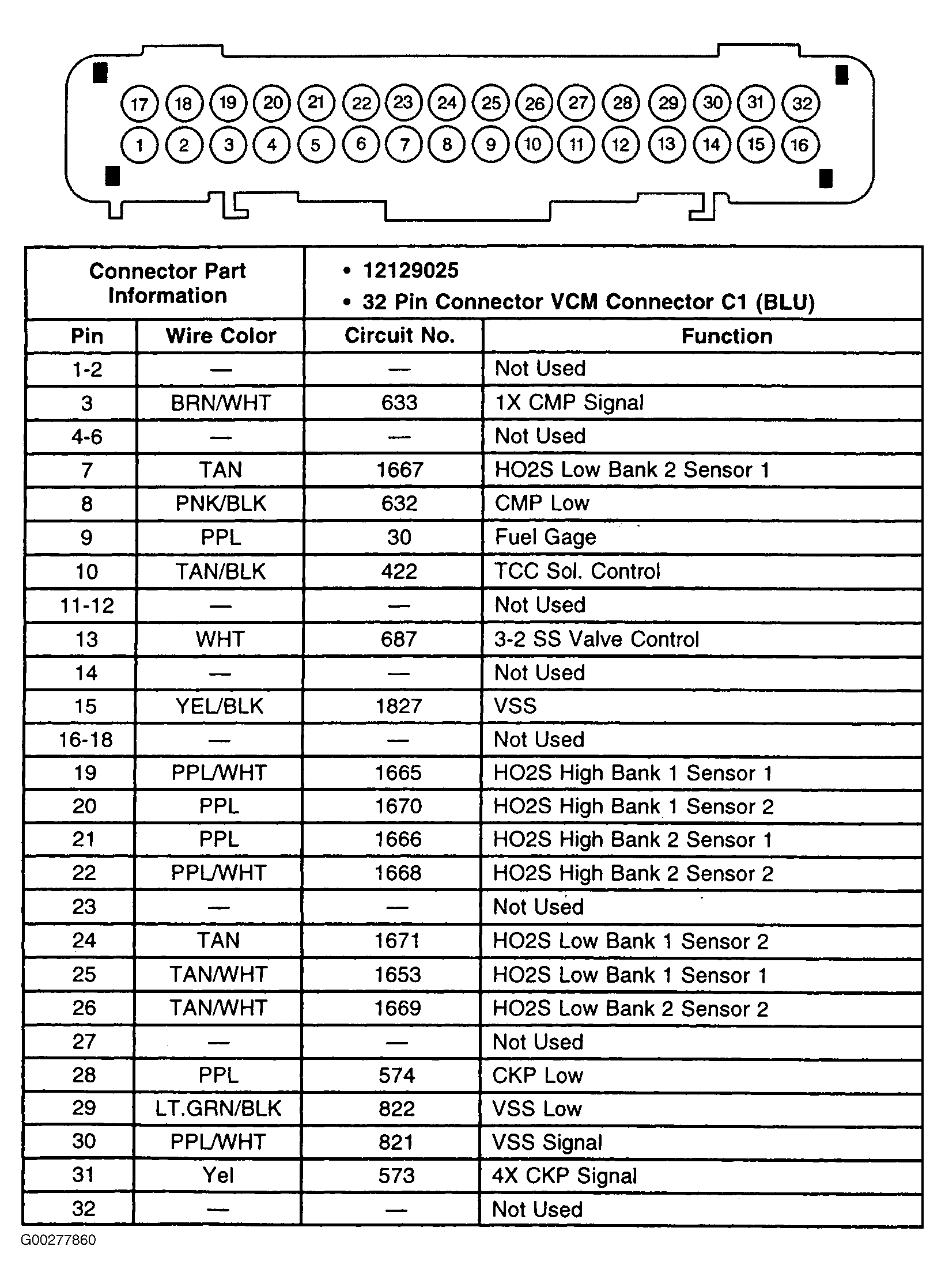

Fig 1: Identifying VCM 32-Pin Blue C1 Connector Terminals
G00277860Courtesy of GENERAL MOTORS CORP.

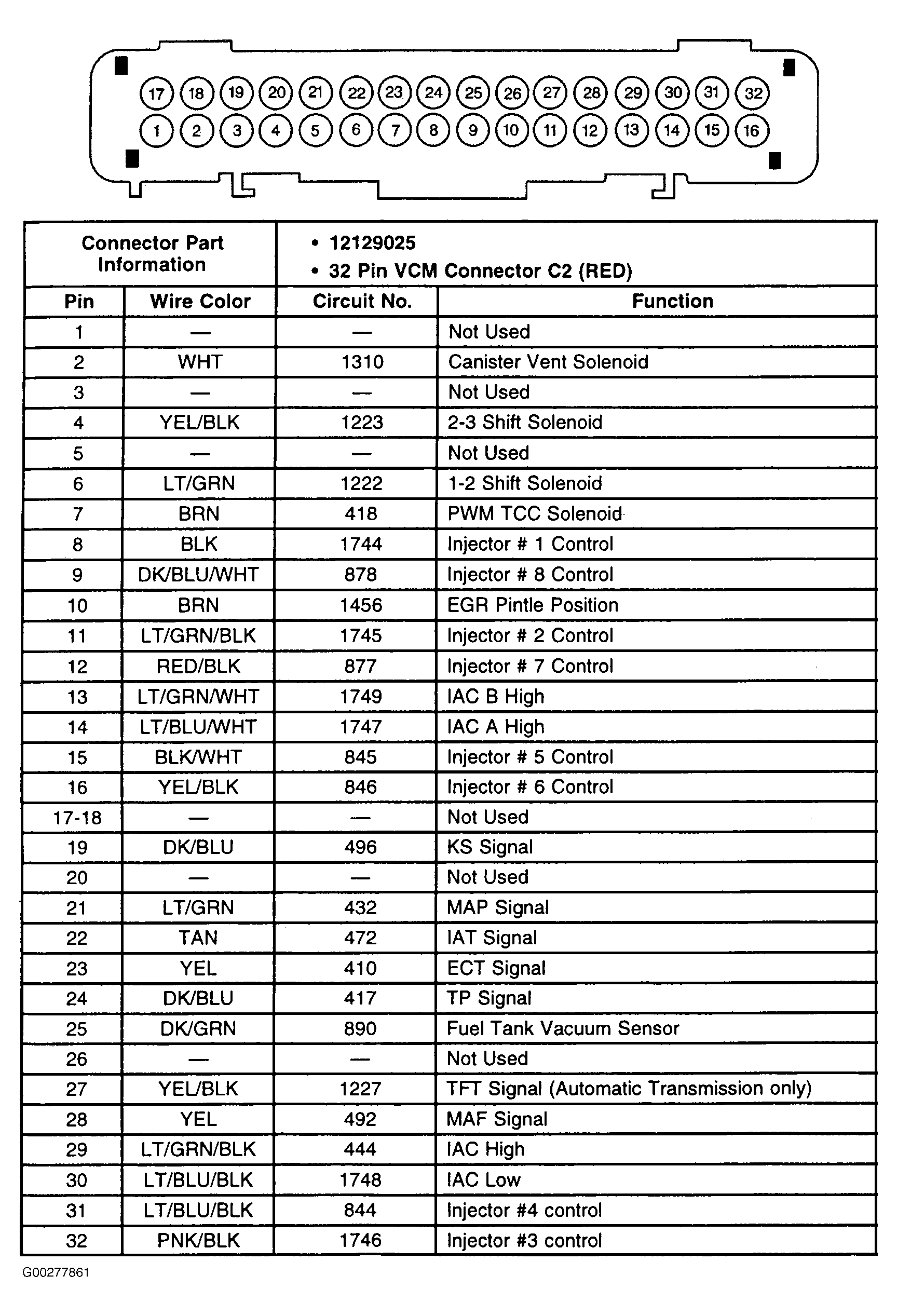

Fig 2: Identifying VCM 32-Pin Red C2 Connector Terminals
G00277861Courtesy of GENERAL MOTORS CORP.

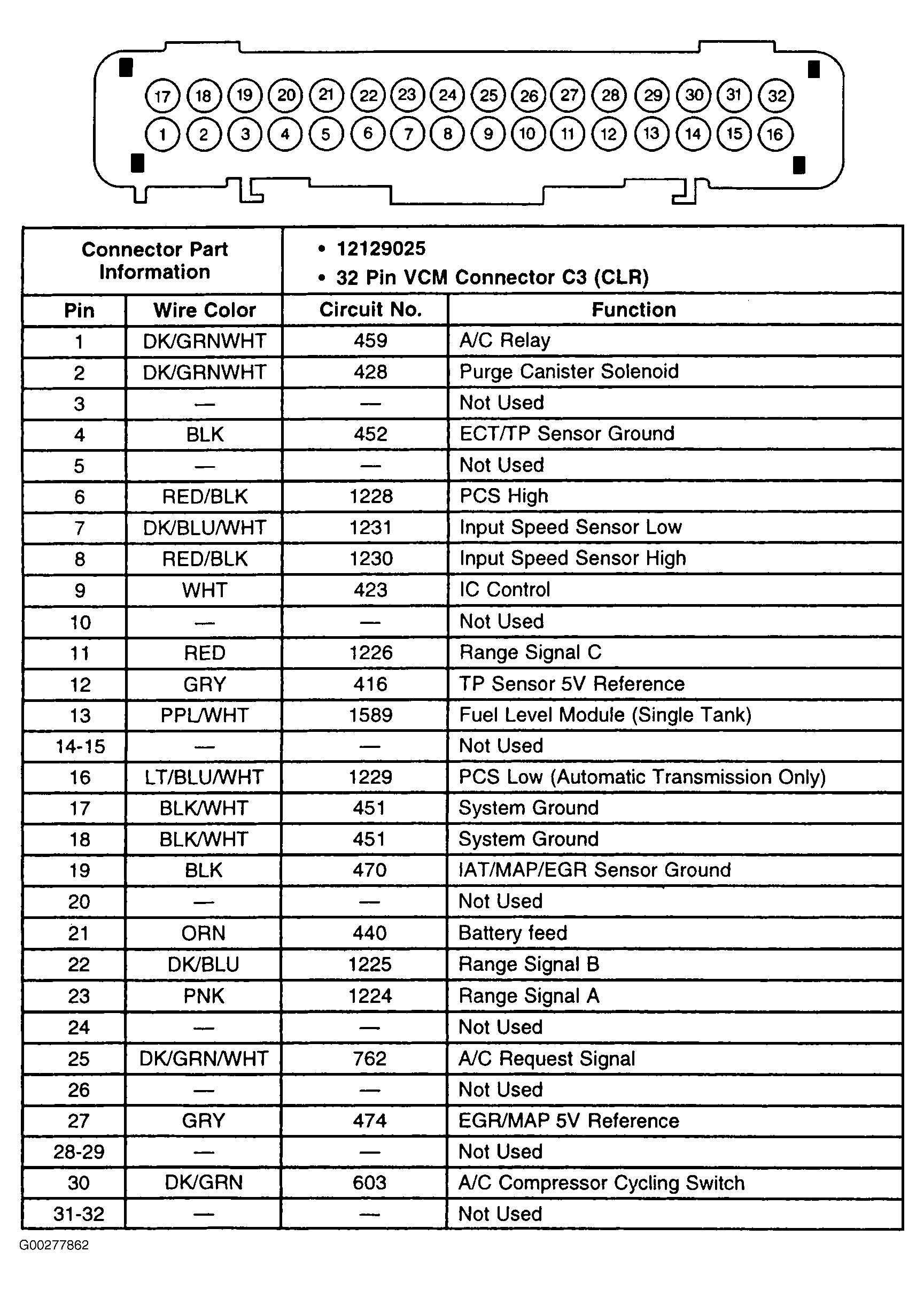

Fig 3: Identifying VCM 32-Pin Clear C3 Connector Terminals
G00277862Courtesy of GENERAL MOTORS CORP.

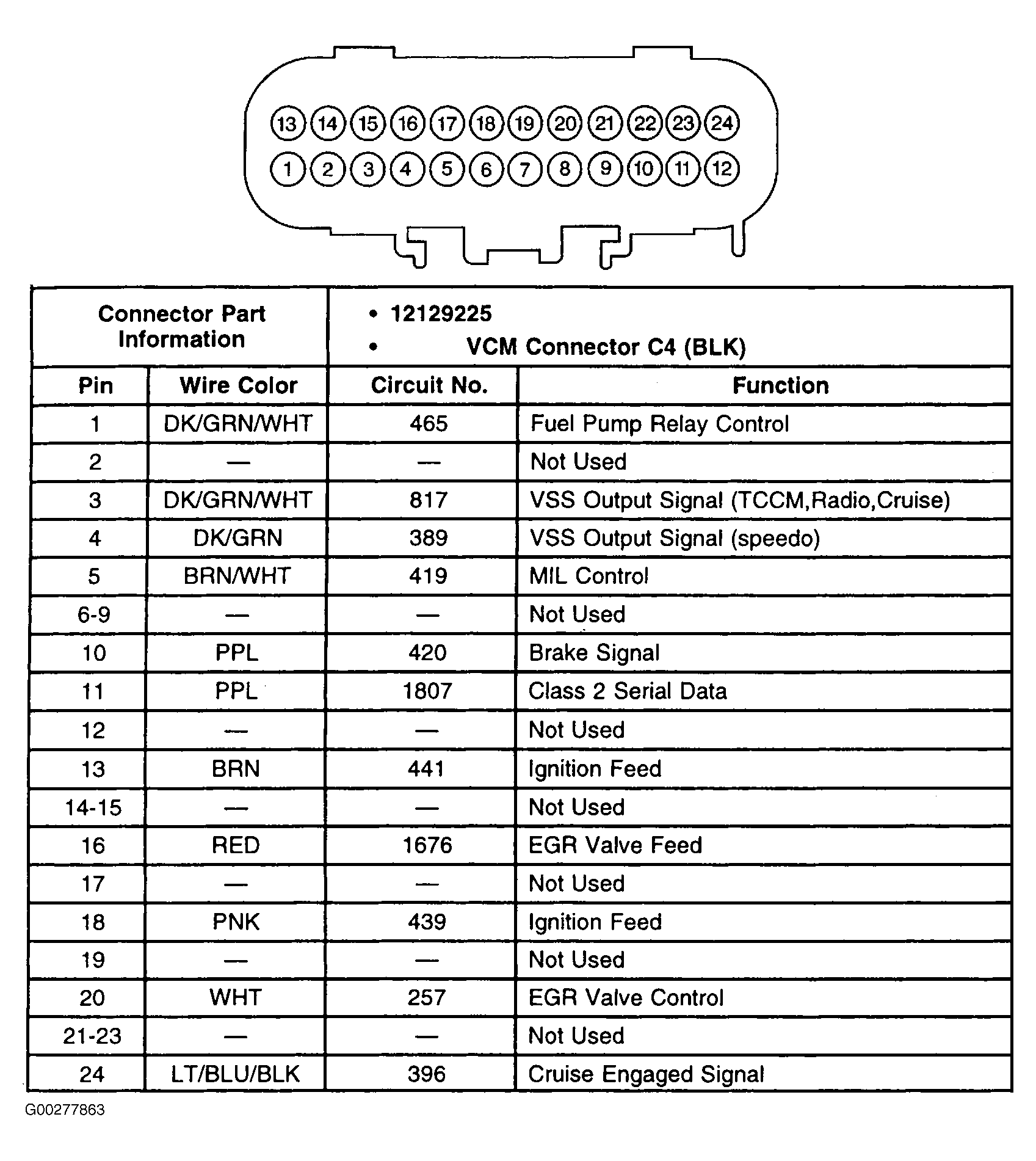

Fig 4: Identifying VCM 24-Pin Black C4 Connector Terminals
G00277863Courtesy of GENERAL MOTORS CORP.
