Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coaxial cable harness to the roof beams with the rosebud clips (3).
  2. Connect the power lead connectors (2).

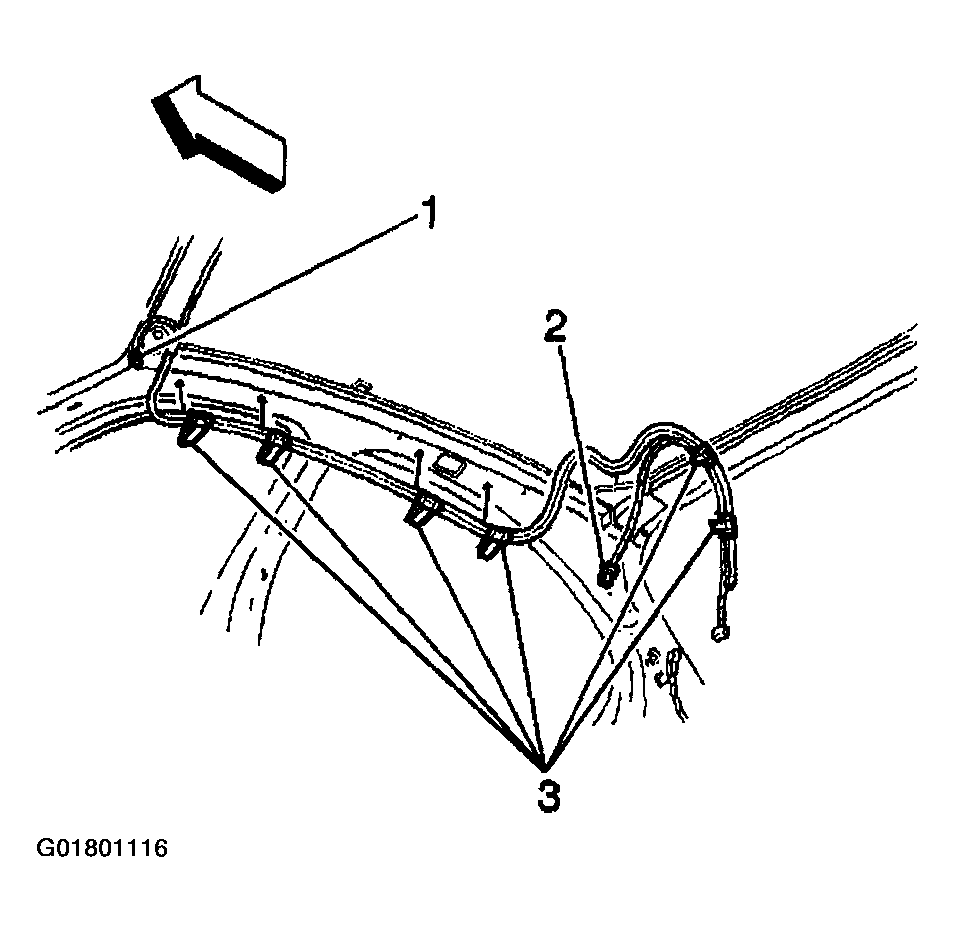

    Fig 1: Installing Coaxial Cable Harness
    G01801116Courtesy of GENERAL MOTORS CORP.
  3. Install the antenna connection (2) at the windshield.
  4. Connect the ground connector (1) to the roof beam.

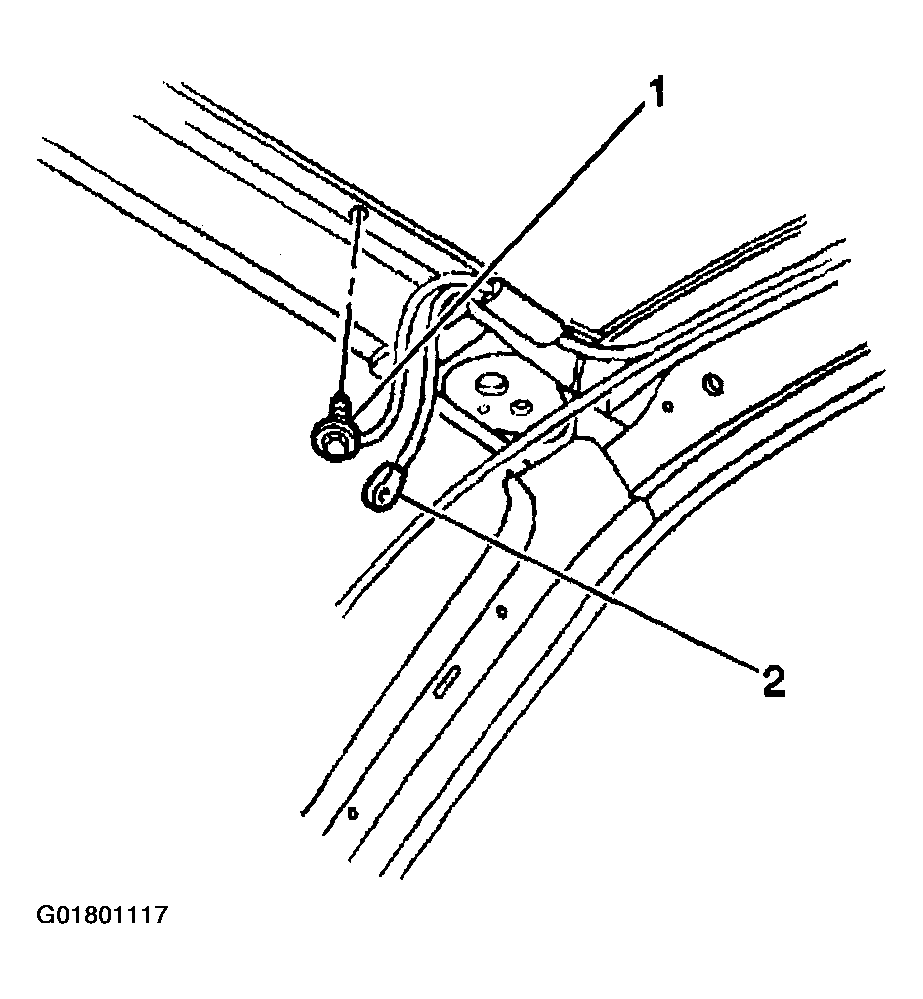

    Fig 2: Connecting Coaxial Cable From Antenna Module
    G01801117Courtesy of GENERAL MOTORS CORP.
  5. Connect the coaxial cable connectors (2).

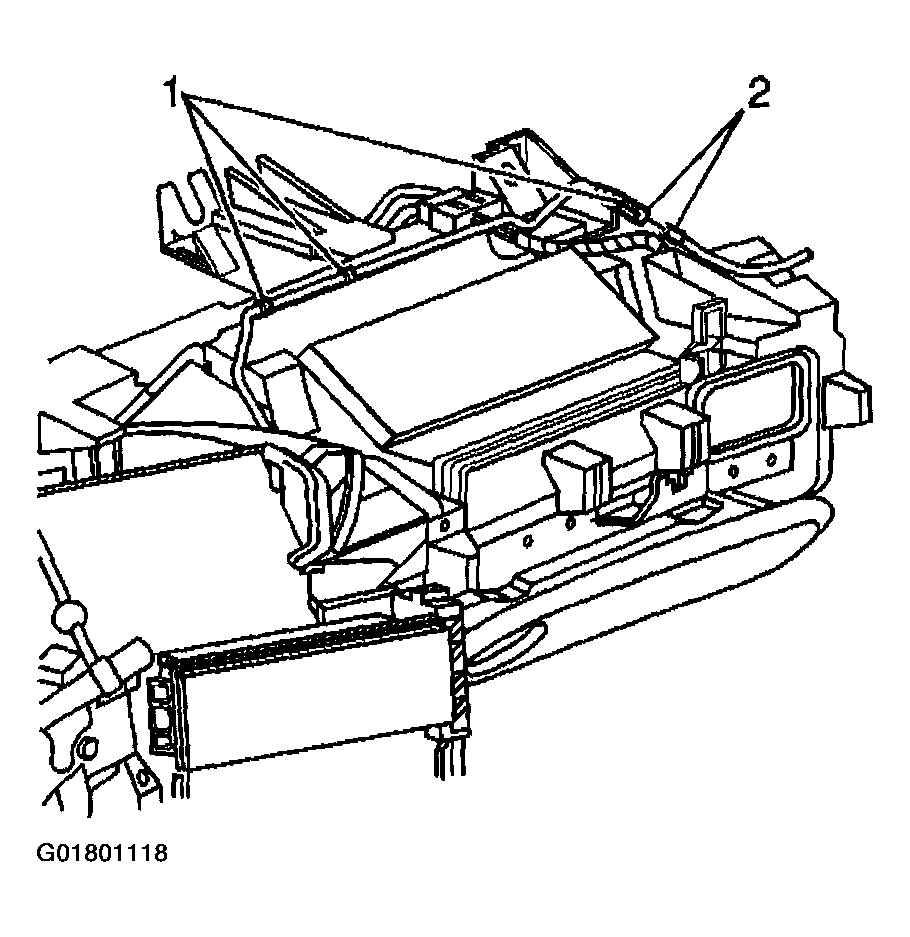

    Fig 3: Connecting Coaxial Cable Connectors
    G01801118Courtesy of GENERAL MOTORS CORP.
  6. Install the coaxial cable connections to the antenna module.
  7. Install the upper instrument panel trim pad. Refer to TRIM PAD REPLACEMENT -- IP UPPER .
  8. Install the headliner. Refer to HEADLINER REPLACEMENT (WITH SUNROOF) or HEADLINER REPLACEMENT (WITHOUT SUNROOF) .
  9. Install the upper rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER UPPER .
  10. Install the right side windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .

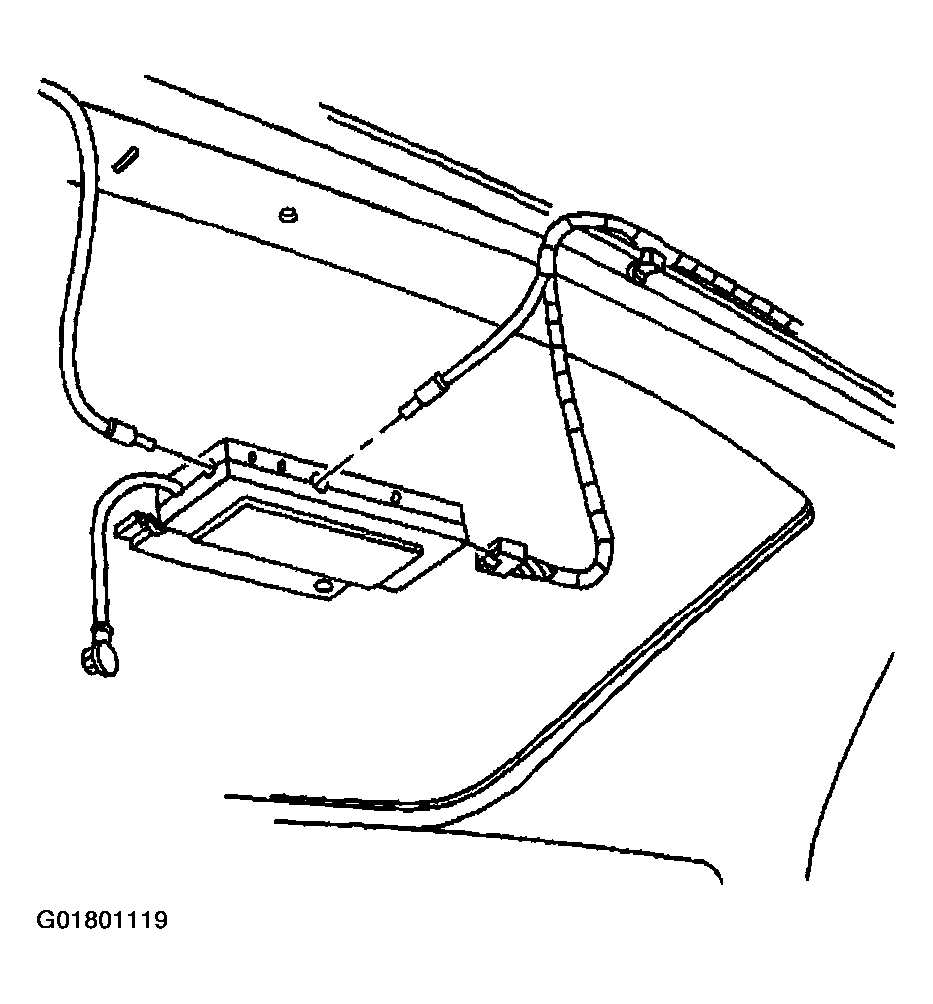

    Fig 4: Connecting Coaxial Cable To Antenna Module
    G01801119Courtesy of GENERAL MOTORS CORP.
