Engine Cooling Fan Schematics

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

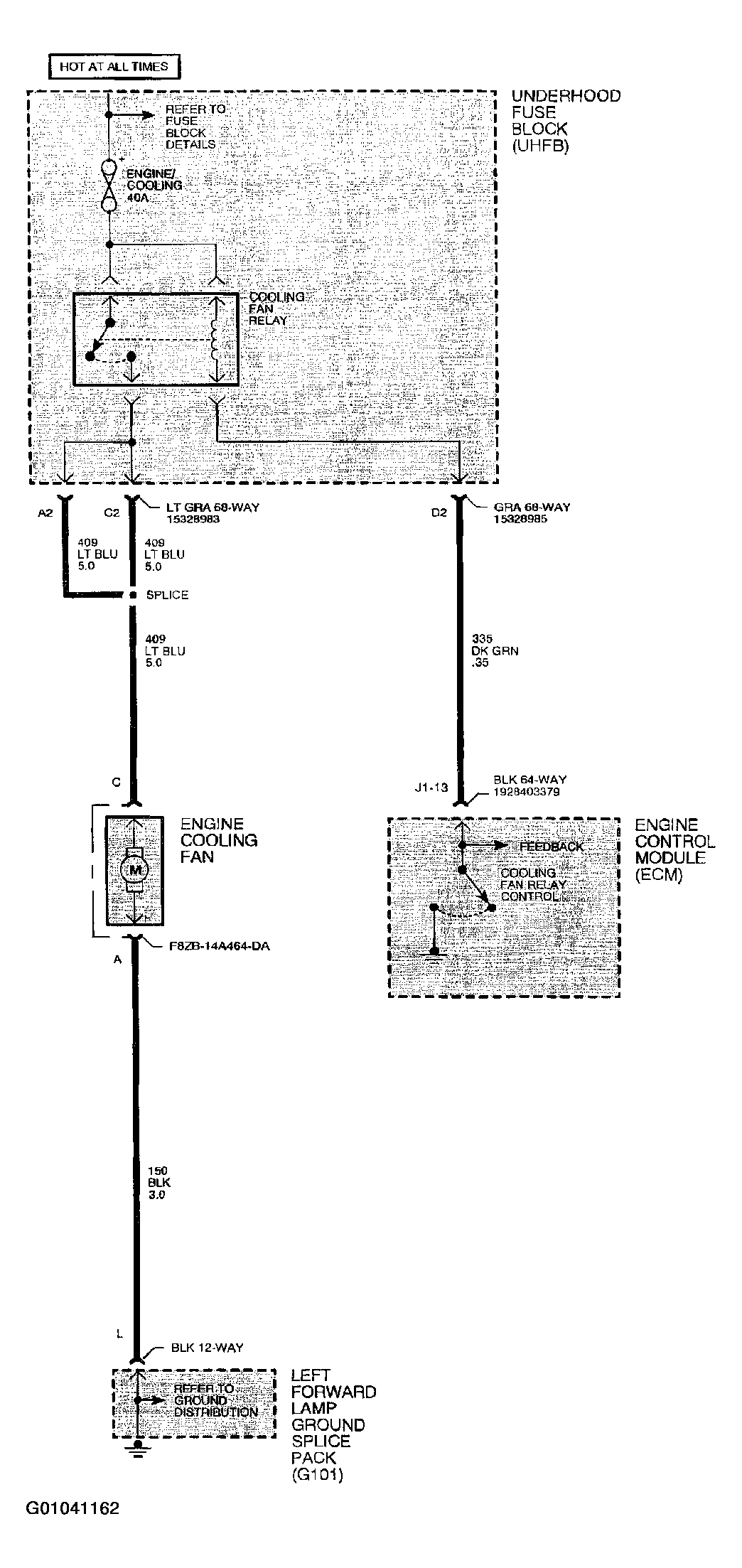

Fig 1: Engine Cooling Fan Schematic
G01041162Courtesy of GENERAL MOTORS CORP.
