Engine Controls - System & Component Testing - 6.5L Turbo Diesel
>>
Component Locations
Component Locations

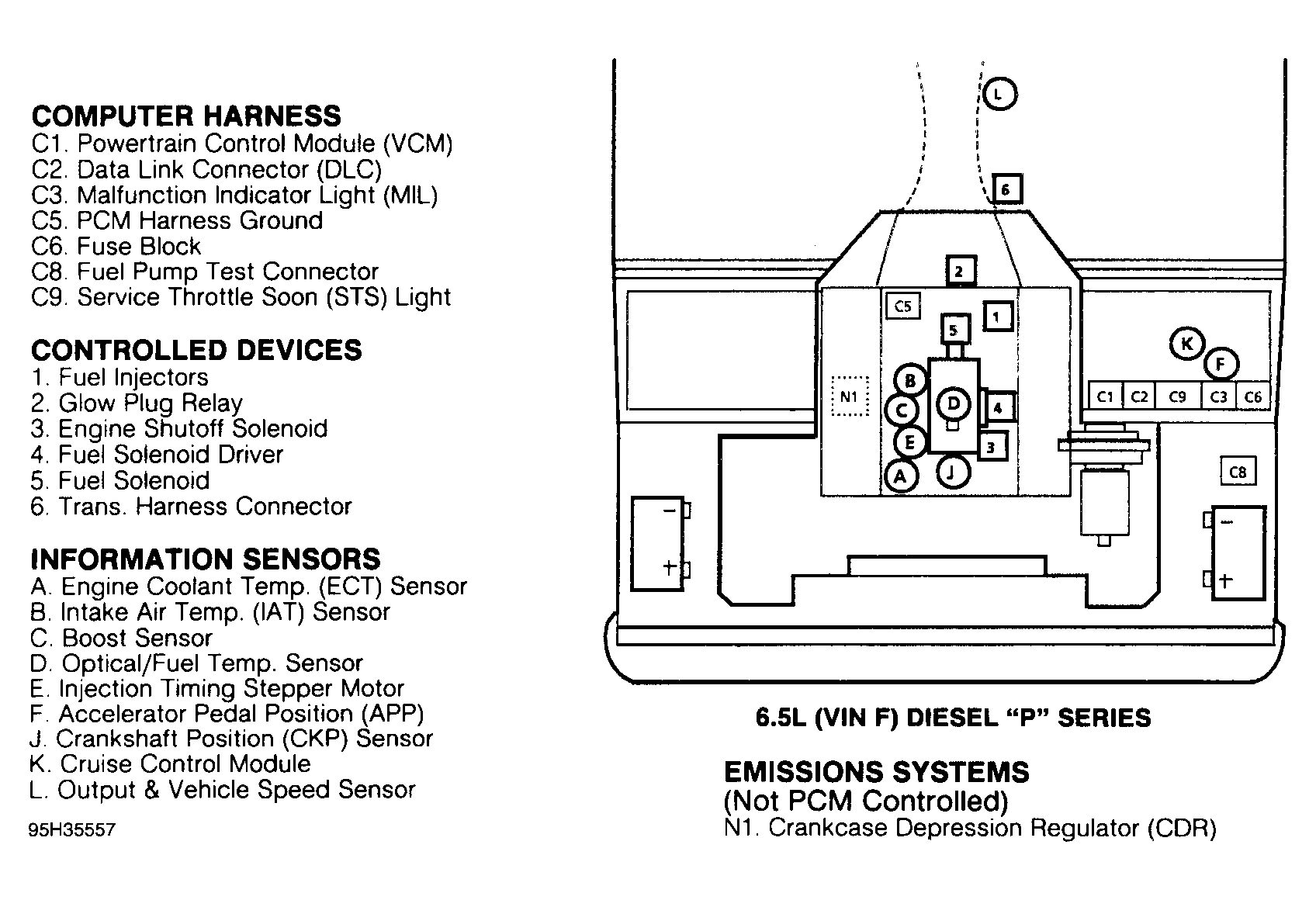

Fig 1: Component Locations (VIN F)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
