Connector Terminal Identification - C/K Series
>>
Instrument Cluster
Instrument Cluster

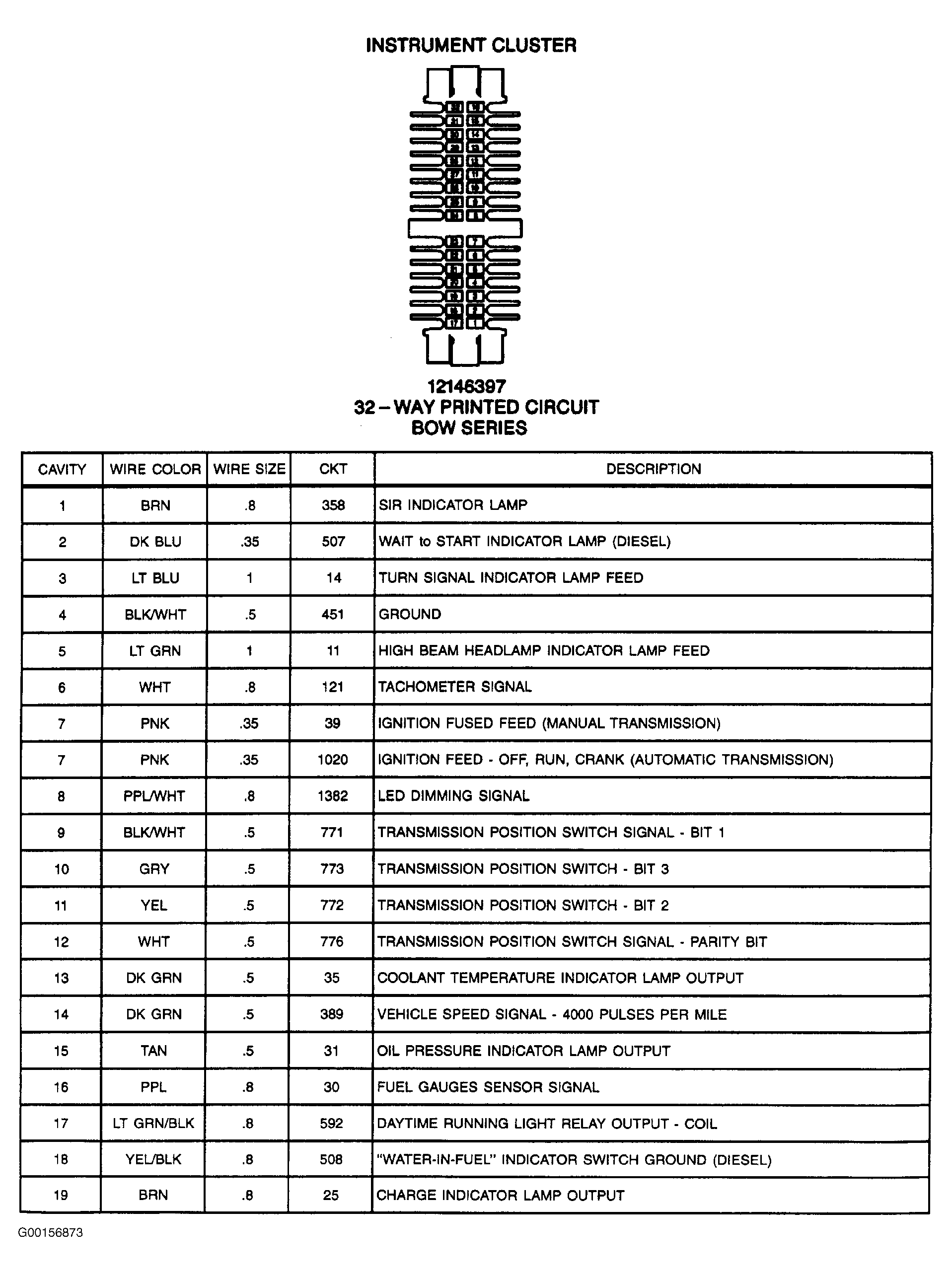

Fig 1: Instrument Cluster - 32-Pin Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

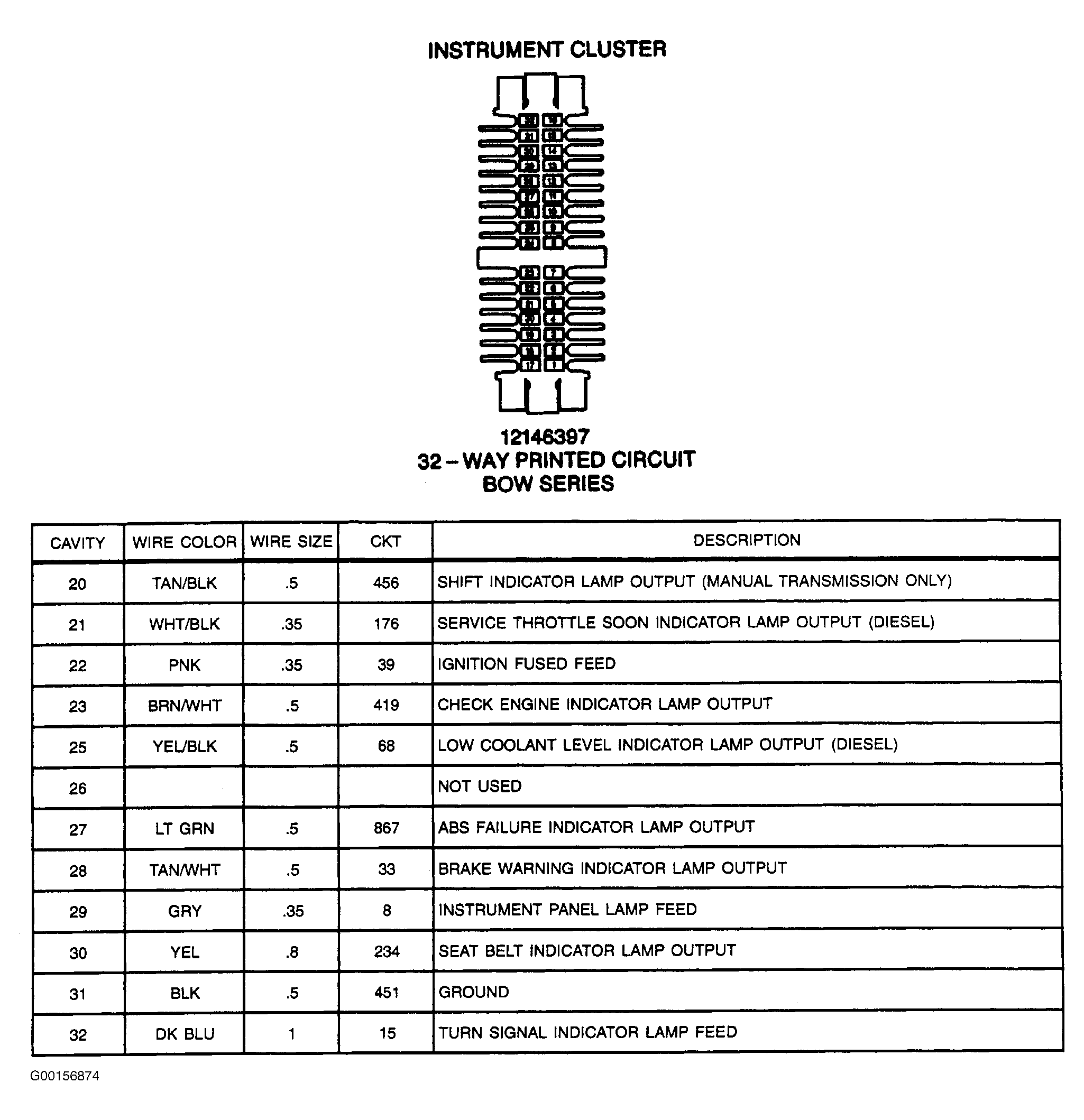

Fig 2: Instrument Cluster - 32-Pin Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
