Auxiliary Heater & A/C Control Module (Front)

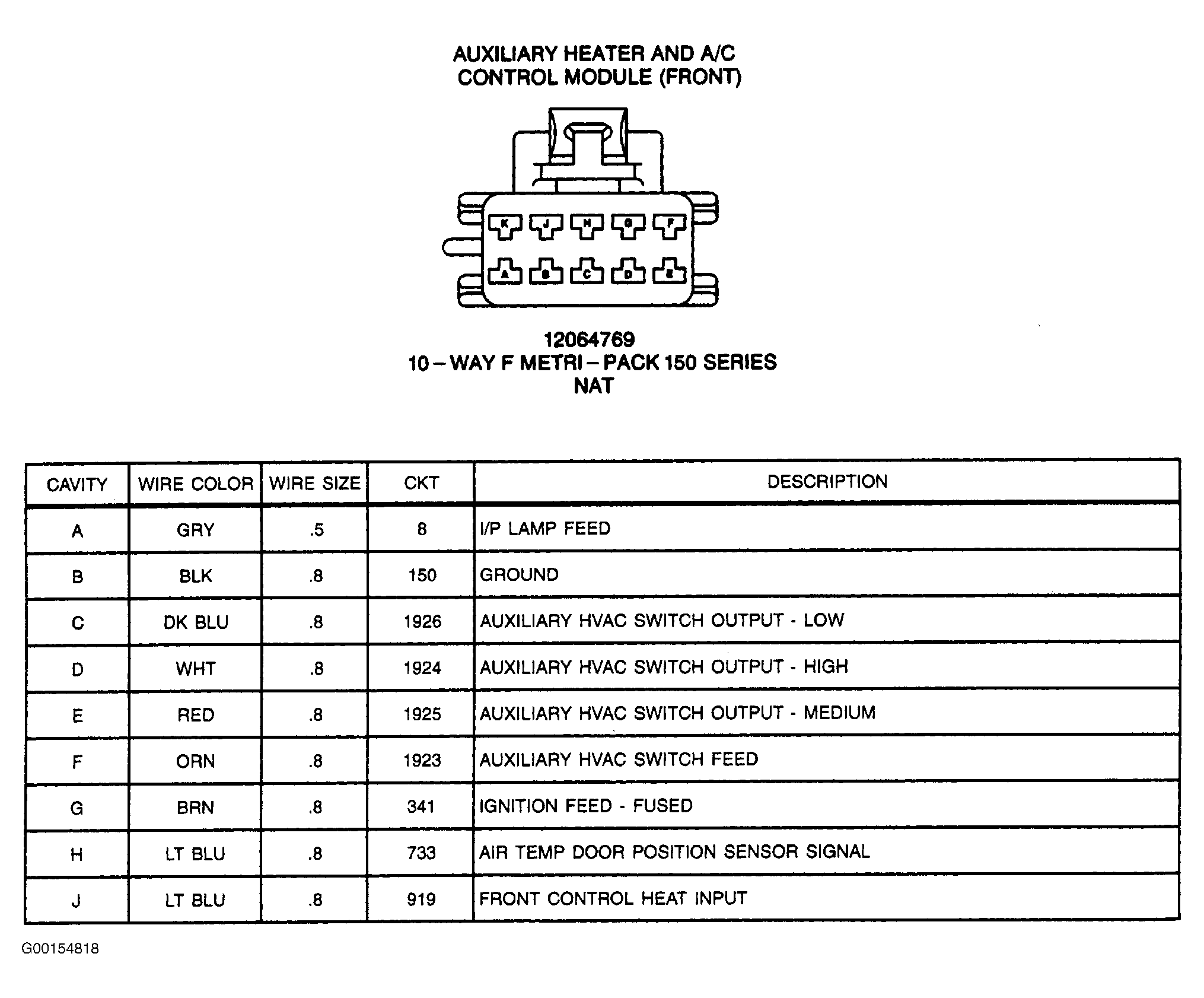

Fig 1: Auxiliary Heater & A/C Control Module (Front) - 10-Pin Connector, Natural

G00154818

Courtesy of GENERAL MOTORS CORP.
