Windshield Washer Pump Motor

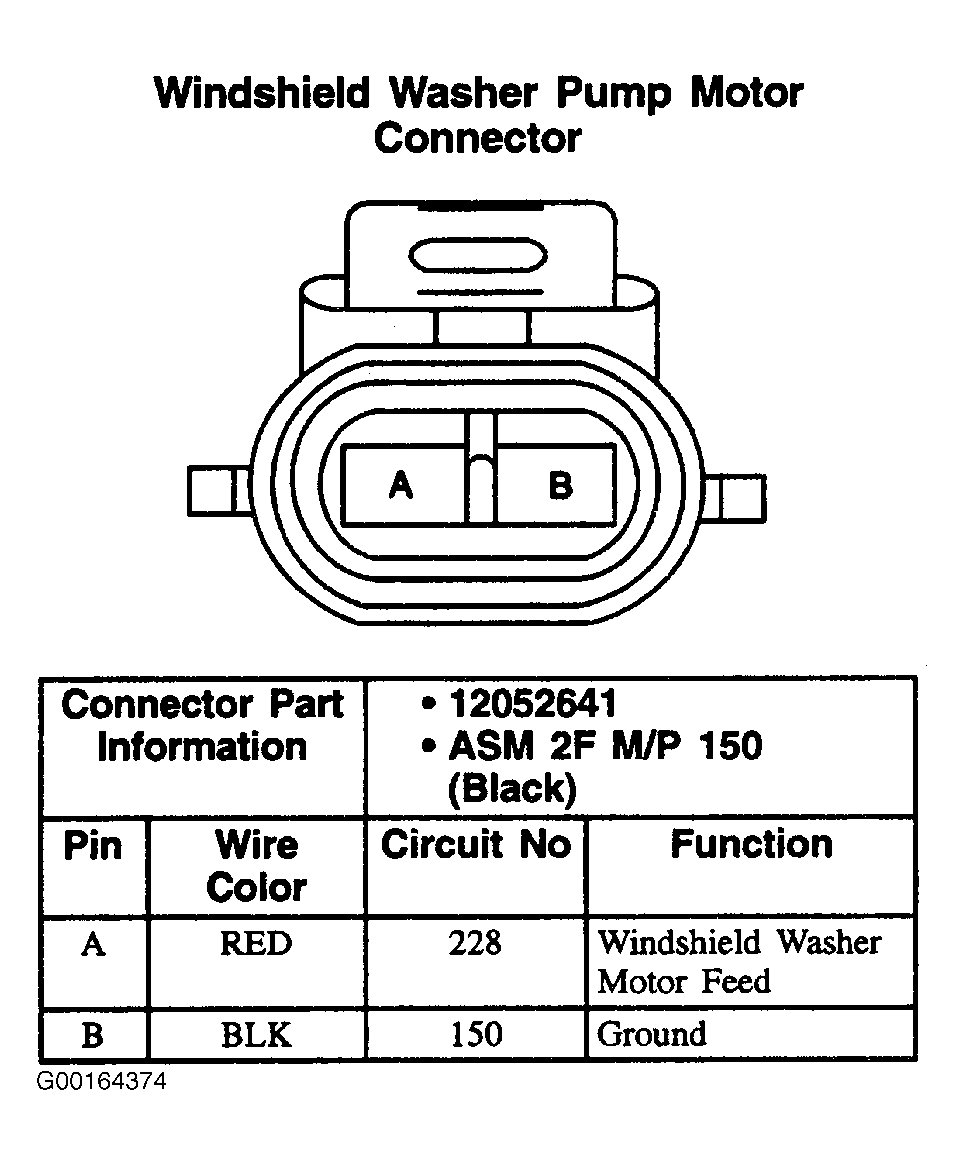

Fig 1: Windshield Washer Pump Motor - 2-Pin Connector, Black

G00164374

Courtesy of GENERAL MOTORS CORP.
