Connector Terminal Identification (G Series)
>>
UNDERHOOD Lamp
UNDERHOOD Lamp

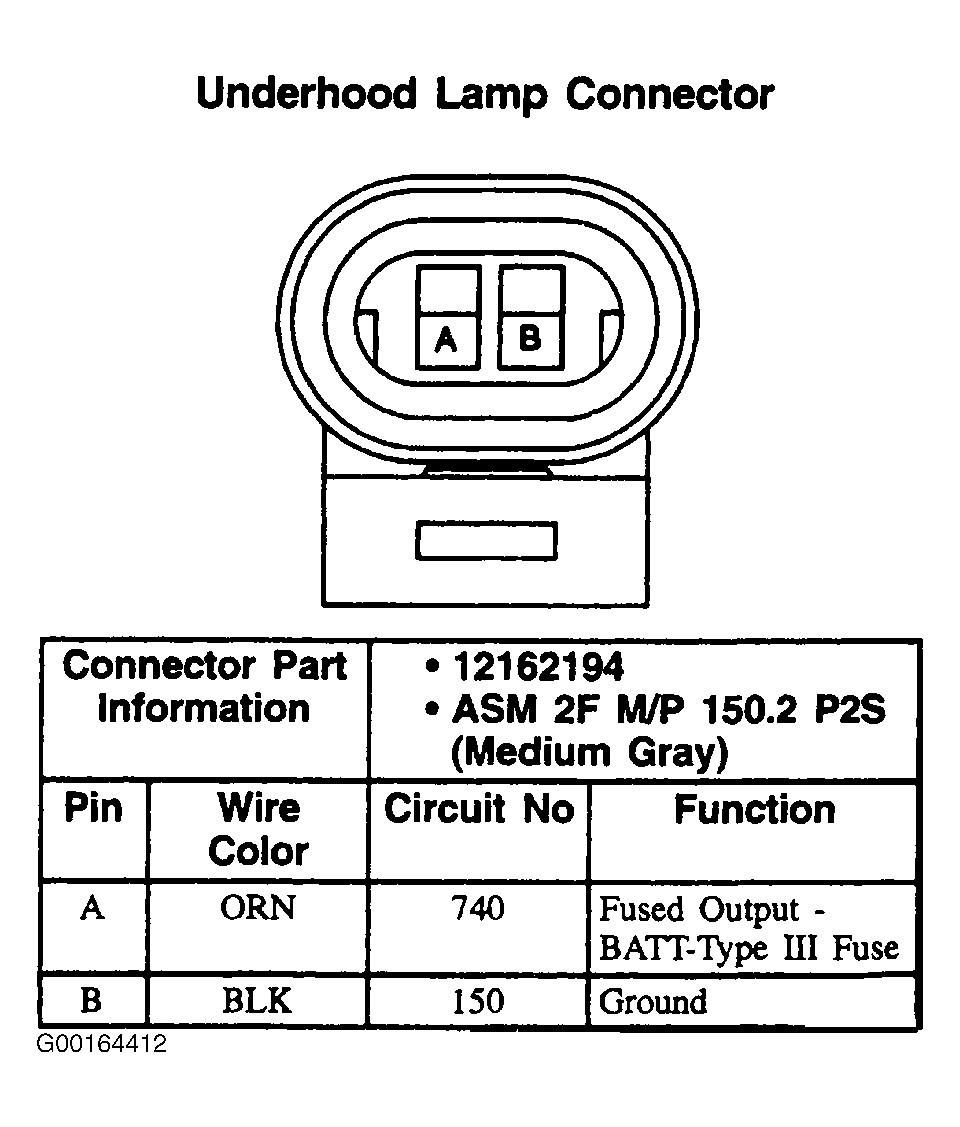

Fig 1: Underhood Lamp - 2-Pin Connector, Medium Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
